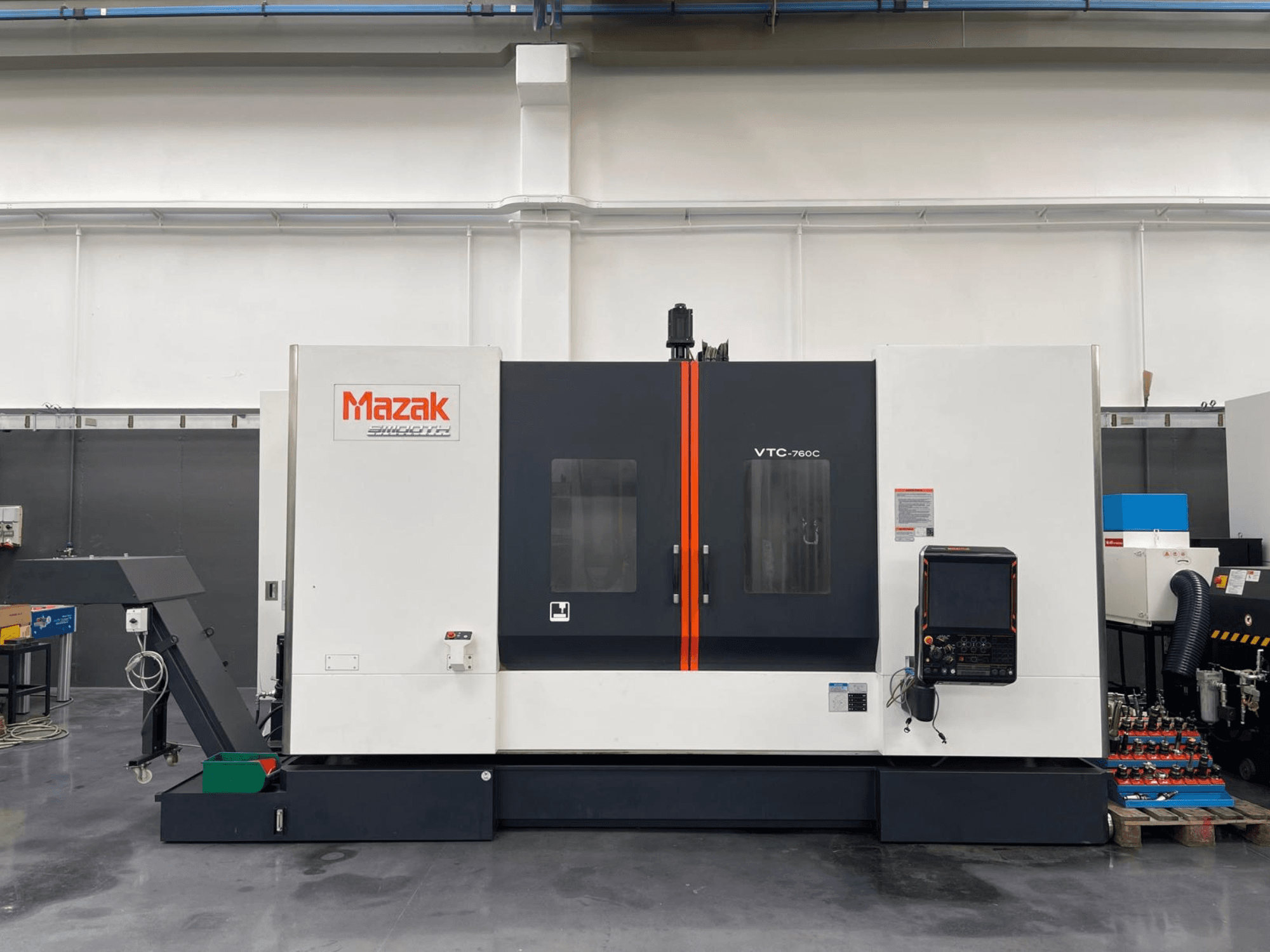

This 3-axis Mazak VTC 760 was manufactured in 2020. It features an X-axis travel of 1740 mm, Y-axis travel of 760 mm, and Z-axis travel of 660 mm. The machine includes a spacious table size of 2300 x 760 mm and a maximum workpiece weight capacity of 1400 kg. If you are looking to get high-quality machining capabilities, consider the Mazak VTC 760 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Mazak
- year: 2020
- MODEL: VTC 760
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - Mazak VTC 760
Movement
- Number of Axes: 3
- X-axis Travel: 1740 mm
- Y-axis Travel: 760 mm
- Z-axis Travel: 660 mm
Technical Specification
- Number of Tools: 30
- Spindle Speed: 12000 RPM
- Taper Size: ISO 40
Additional Information
Control: Smooth G
Table size: 2300 x 760 mm
Distance table to spindle nose: 180 mm
Max workpiece size: 4100 x 905 x 790 mm
Table surface: T-slots
Max workpiece weight: 1400 kg
Rapid feed (X/Y/Z): 42,000 mm/min
Coolant pressure: 18 bar (additional tank)
Additional equipment
Fume extractor
Schunk vises
Zero-point clamping system
Nakanishi high-speed spindle (50,000 rpm)
Tooling sets with cabinets and benches
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
