- ➤ Used Mazak VERTICAL CENTER NEXUS 510C-II INFO For Sale

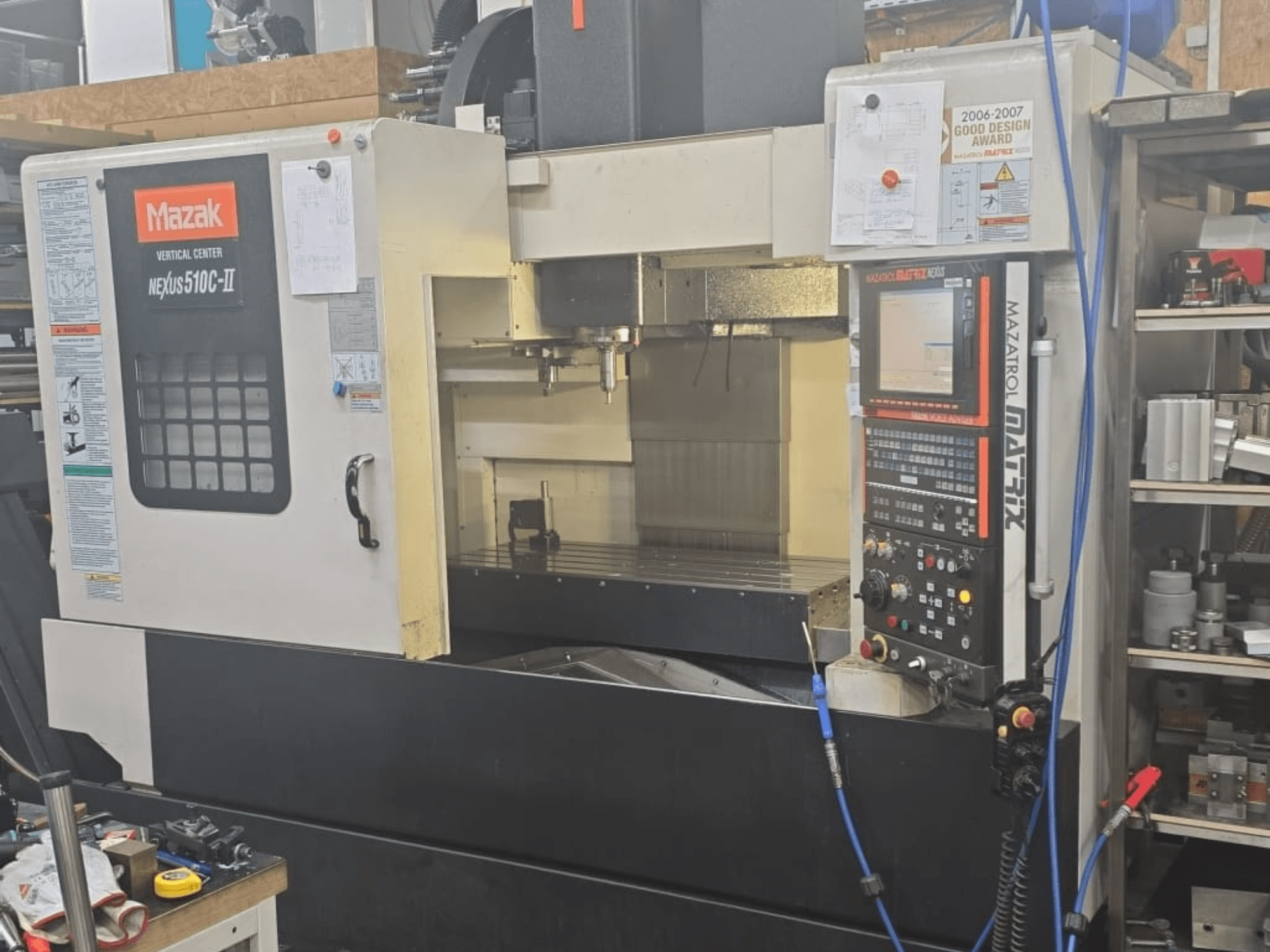

This 3-axis Mazak VERTICAL CENTER NEXUS 510C-II INFO was manufactured in 2008. It features a Mazatrol Matrix Nexus control unit and has a total operating time of 17,659 hours. The machine is equipped with advanced software options, including high smoothing control and various machining cycles. If you are looking to get high-quality machining capabilities, consider the Mazak VERTICAL CENTER NEXUS 510C-II INFO vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Mazak
- year: 2008
- MODEL: VERTICAL CENTER NEXUS 510C-II INFO
- production hours: 4220
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- Available from: 14/10/2026
- control unit brand: MAZATROL
Technical Information - Mazak VERTICAL CENTER NEXUS 510C-II INFO
Control Unit
- Control Brand: MAZATROL
- Control Model: Matrix Nexus
Dimensions
- Table Length: 550 mm
- Table Width: 1300 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1050 mm
- Y-axis Travel: 510 mm
- Z-axis Travel: 510 mm
Technical Specification
- Spindle Speed: 12000 RPM
Additional Information
- Total Operating Time: 17,659 hours 12 minutes 03 seconds (Recorded on 2026/02/19)
- Automatic Cutting Time: 6,129 hours 38 minutes 37 seconds
- Automatic Machining Time: 5,877 hours 48 minutes 01 seconds
- Operating Time / Power On Time: 26,902 hours 54 minutes 33 seconds
- Feed Rate Override Display: 50%
- Feed Speed Display: 150 mm/min
- Electrical Drives/Servo System: Mitsubishi Electric MDS series (400V system)
- Additional System Interfaces: Renishaw Machine Interface MI12 (integrated inside electrical cabinet for probe system)
- Safety Module: Mazak Safety Relay Module (QS-VMI100R-10)
- Installed Options (Software/NC Options Enabled):
* EIA / EIA 3D Comp. / EIA Herical Tap Cycle / EIA Pattern Cycle
* High Smoothing Control
* Spiral
* Rotation
* Geometric
* Scaling
* Ext-Data I/O
* Inverse Time
* Auto TLM
* Polar Coordinates Input
* Comparison Stop
* G54.1
* Sync. Mill Tapping / Sync. Main Sp. Tapping
* Inch/MM Convert
* G00 Slope Const.
* Scale Feed Back
* Variable 600 Sets
* IC Card Running
* Tilted Working Plane
* Re-Thread
* Pitch Error Comp.
* Tap Retraction
- Coolant/Hydraulic Accessories: External tank base with dual motor-pump units and filtration assembly (including a manual visual indicator pressure/bypass filter)
- Extraction/Exhaust Accessories: Fitted with a flexible corrugated overhead extraction duct (mist/smoke extractor hose connection)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
