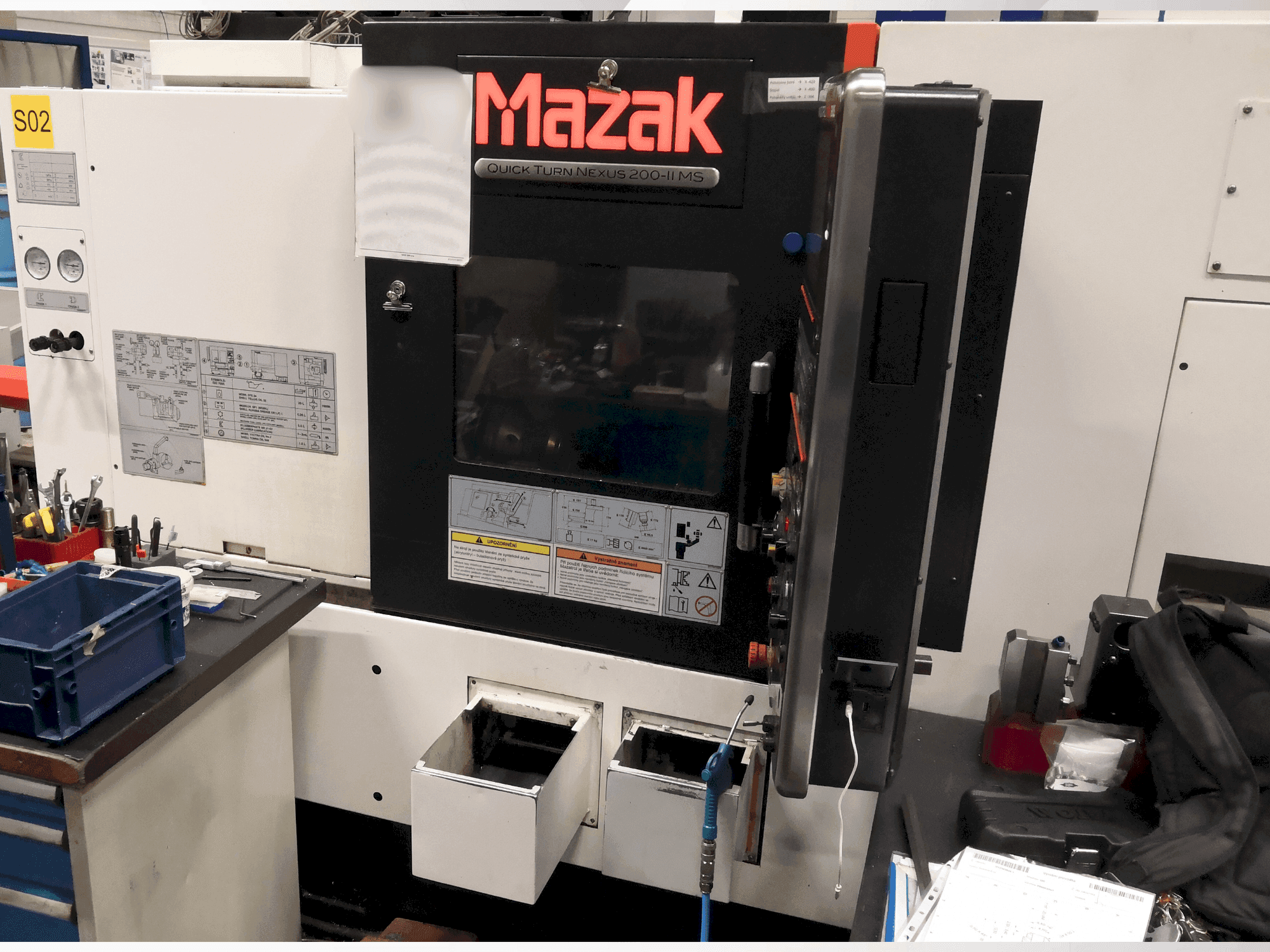

Front view of Mazak Quickturn Nexus 200-II MS machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Quickturn Nexus 200-II MS

Photo Gallery

Mazak - Quickturn Nexus 200-II MSCZ-TUR-MAZ-2013-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak Quickturn Nexus 200-II MS | Horizontal Lathe

Show in original language

This 3-axis Mazak Quickturn Nexus 200-II MS was manufactured in 2013. It features a maximum turning diameter of 675 mm, turning length of 575 mm, and a spindle speed up to 5000 rpm. Includes a 12-position turret, milling capabilities, and a barfeed magazine SPACESAVER SS2500. Ideal for high precision turning, consider the Mazak Quickturn Nexus 200-II MS if you are looking to enhance your machining operations. Contact us for more information about this machine.

Overview

brand: Mazak
year: 2013
MODEL: Quickturn Nexus 200-II MS
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak Quickturn Nexus 200-II MS

Control Unit

Brand: MAZATROL
Model: Matrix Nexus

Movement

X-AXIS Movement: 230 MM
X-AXIS Rapid traverse: 33 m/min
Z-AXIS Movement: 575 MM
Z-AXIS Rapid traverse: 33 m/min

Additional Equipment

- Barfeed Magazine: Spacesaver SS2500 (Ø6-80 mm, Max L=1525 mm)
- Chip Conveyor: Mayfran
- Collet Chuck: KITAGAWA QCRL60A6 for main spindle (without collets)
- Jaw Chuck: KITAGAWA BB208 for main spindle (without jaws)
- Jaw Chuck: KITAGAWA B20 for subspindle spindle (without jaws)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum turning diameter: 675 mm
- - Turning length: 575 mm
- - Maximum machining diameter: 380 mm
- - Max. Bar diameter: 77 mm
- - Positions: 12 (all driven)
- - Machine with lower accuracy; turret head cannot achieve repeatability accuracy of 0. 1 mm. Achieved accuracies were within the range of 0. 02 to 0. 3 mm in the x and y axes.
- - During the last thorough service (march 2025), potential x and z axis guide bending and turret off-axis rotation were noted.
- - Possible issues with turret mounting (bearings, touching surfaces, etc. ).
- - Machine needs new bearings on the main spindle.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
