Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Quick Turn 250 L

Photo Gallery

Mazak - Quick Turn 250 LSK-TUR-MAZ-2021-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

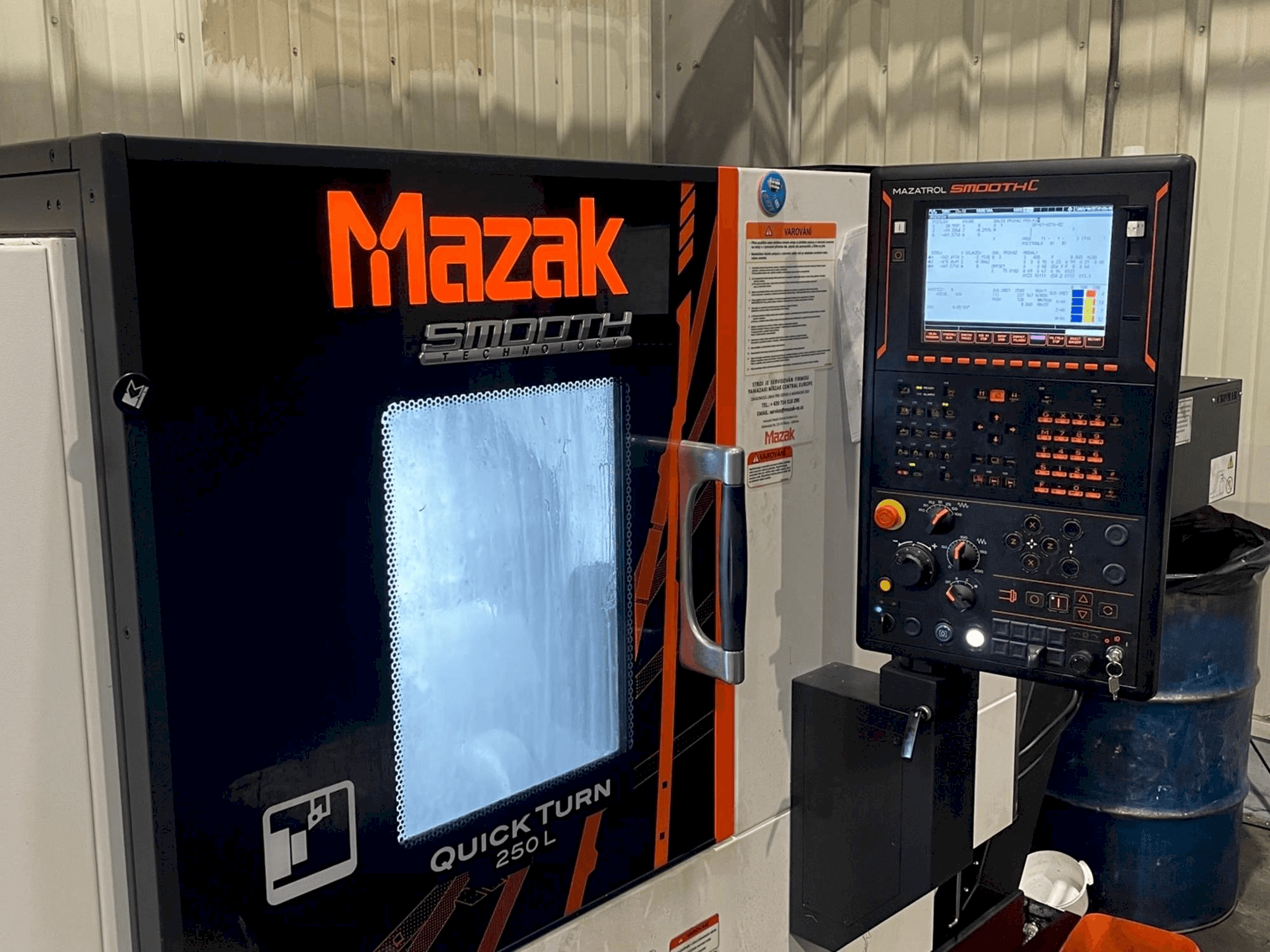

Mazak Quick Turn 250 L lathe

Show in original language

This Mazak Quick Turn 250 L lathe was made in the year 2021 in China and has 1889 hours, of which 731 are cutting hours. It is equipped with a Mazatrol SmoothC control unit and has 2 axis. The machine has a spindle speed of 4000 rpm and is like new.

Overview

brand: Mazak
year: 2021
MODEL: Quick Turn 250 L
production hours: 1889
application type: Turning
Location: Slovakia
machine type: Horizontal Turning Machine
control unit brand: MAZATROL

Technical Information - Mazak Quick Turn 250 L

Control Unit

Control Brand: MAZATROL
Control Model: SmoothC

Dimensions

Machine Depth: 1680 mm
Machine Height: 1700 mm
Machine Weight: 4850 kg

Movement

Number of Axes: 2
X-axis Travel: 225 mm
Z-axis Travel: 560 mm

Technical Specification

Spindle Speed: 4000 RPM
Tool Stations: 12

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine like new, in operation from 04/2022
Under mazak warranty

Technical Machine Benefits

Maximum swing 660 mm
Maximum machining diameter 380 mm
Bar work capacity main spindle 80 mm
Max. Machining length 535 mm
Main spindle motor (30 min/cont. ) 18. 5/15 kw
Bar work capacity main spindle 80 mm
Chuck size main spindle 10 "
Maximum torque 358. 0 nm
Rapid traverse (x/z axis) 30/33 m/min
Tailstock, tool eye

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
