Mazak - Quick Turn 200MA LSI-TUR-MAZ-2023-00001

Name: Mazak Quick Turn 200MA L
Brand: Mazak
SKU: SI-TUR-MAZ-2023-00001
Price: 92300 GBP
Availability: InStock

£ 92,300

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak Quick Turn 200MA L For Sale | gindumac.com

Show in original language

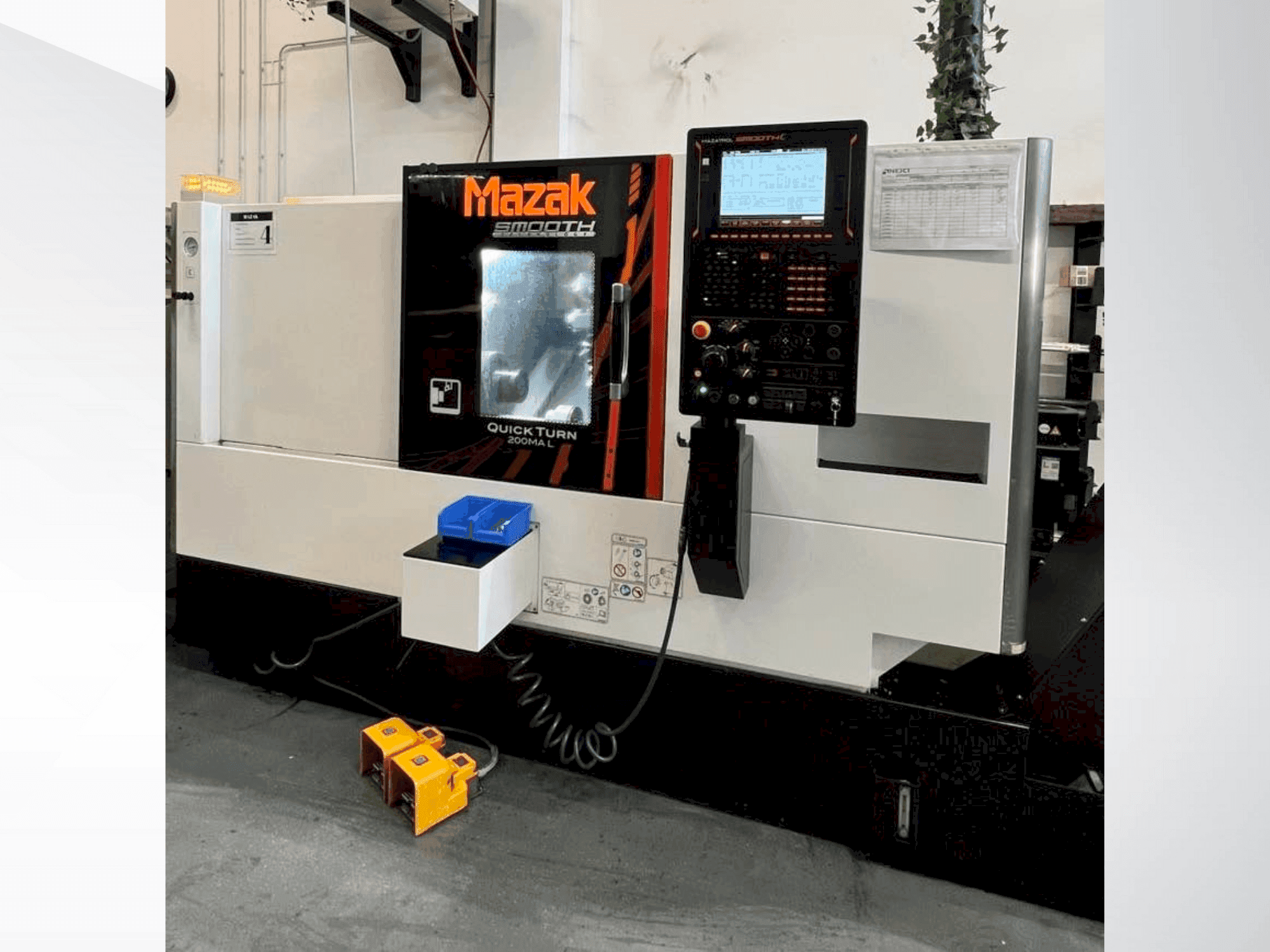

This 3-axis Mazak Quick Turn 200MA L was manufactured in 2023. It features a MAZATROL SmoothC control unit, a maximum machining diameter of Ø360 mm, and a bar capacity of Ø65 mm. The spindle operates at 5,000 rpm with a chuck size of 8 inches. Ideal for precision turning, it has a 12-station drum turret and rapid feedrates of 30,000/33,000 mm/min. Consider the opportunity to buy this Mazak Quick Turn 200MA L horizontal turning machine. Contact us for more information.

Overview

brand: Mazak
year: 2023
MODEL: Quick Turn 200MA L
production hours: 2039
application type: Turning
Location: Slovenia
machine type: Horizontal Turning Machine
control unit brand: MAZATROL

Technical Information - Mazak Quick Turn 200MA L

Control Unit

Brand: MAZATROL

Additional Information

Machine Benefits

Technical Machine Benefits

Power on: 4426 hours /auto operation: 2310 hours/ auto cut: 2039 hours
Travel (x/z): 225 mm / 605 – 1125 mm / rapid feedrates (x/z): 30000 / 33000 mm/min
Swing over bed: Ø660 mm / max. Machining diameter: Ø360 mm / max. Machining length: 535 / 1055 mm / bar capacity: Ø65 mm
Spindle speed: 5000 rpm/ spindle nose: a2-6 / spindle bore: Ø76 mm / main spindle motor: 15 kw [40% ed] / 11 kw [cont. ]
Turret: 12-station drum turret (vdi) / tool shank size: 25 mm / boring bar shank diameter: Ø40 mm / turret indexing time: 0. 25 sec/step
Rotary tool spindle speed: 5000 rpm / rotary tool milling capacity: drill Ø20 mm / end mill Ø20 mm / tap m20 × 2. 5 / rotary tool motor: 5. 5 kw [40% ed] / 3. 7 kw [cont. ]
Electrical requirements: 26. 5 kva (30 min. Rating) / 20. 8 kva (continuous)
Dimensions of machine (lxwxh): 2760 × 1485 × 1730 mm/ weight (kg): approx. 4700 – 5700 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
