➤ Used Matsuura MAM72-70V For Sale | gindumac.com

Show in original language

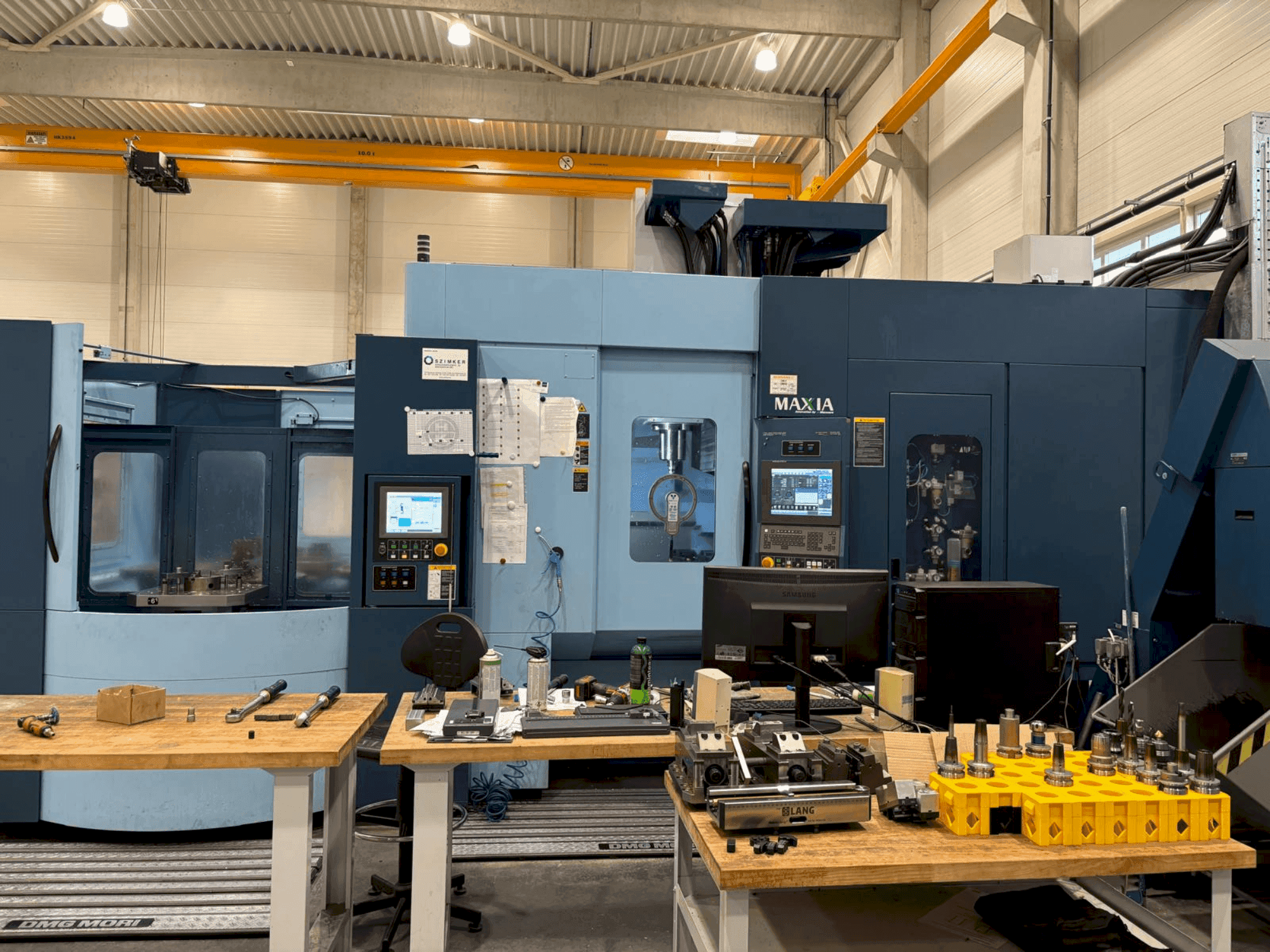

This 5-axis Matsuura MAM72-70V was manufactured in 2021, designed for high-precision, complex part production in one setup. It features a 15,000 rpm spindle, optional 20,000 rpm, and BBT #40 taper for robust performance. The machine includes a 90-tool magazine, rapid tool change capabilities, and dual pallet system for enhanced productivity. Ideal for industries requiring utmost precision and efficiency. Contact us for more information about this machine.

Overview

brand: Matsuura
year: 2021
MODEL: MAM72-70V
production hours: 0
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
Available from: 02/02/2026

Technical Information - Matsuura MAM72-70V

General Data

Measurements width: 4240 mm
Measurements depth: 8200 mm
Measurements height: 3400 mm
Machine weight: 19000 kg

Main drive

Number of axis: 5

Workpiece

Workpiece weight: 500 kg

Tools

Max weight: 10 kg

Additional Information

Machine Benefits

Technical Machine Benefits

Pallet system: 2-pallet version
Pallet size: 500x500 mm
Max workpiece dimensions: Ø700x500 mm
Pallet change time: 19 sec
Pallet system repeatability: ±0. 003 mm
Magazine capacity: 90-tool chain, bidirectional
Tool change time: 5. 0 sec
Max tool size: Ø80×350 mm (Ø150 with empty adjacent slots)
Monitoring: tool life tracking on 10” screen

Extra Information

Control Unit Controller: FANUC 31i MB + Matsuura Software 15” display with user-configurable interface Emergency email alerts Enclosure: Fully sealed with tempered glass and CE-compliant Noise: Max 78 dBA This 5-axis machining center, a proven successor in its series, is designed for complex, high-precision parts, ideal for sectors such as aerospace and medical. Its robust construction and sophisticated control system enable exceptional precision and high productivity, ensuring optimal performance in demanding tasks.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
