Makino - V33i GraphiteNL-MIL-MAK-2014-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Makino V33i Graphite Vertical Machining Center
Show in original language

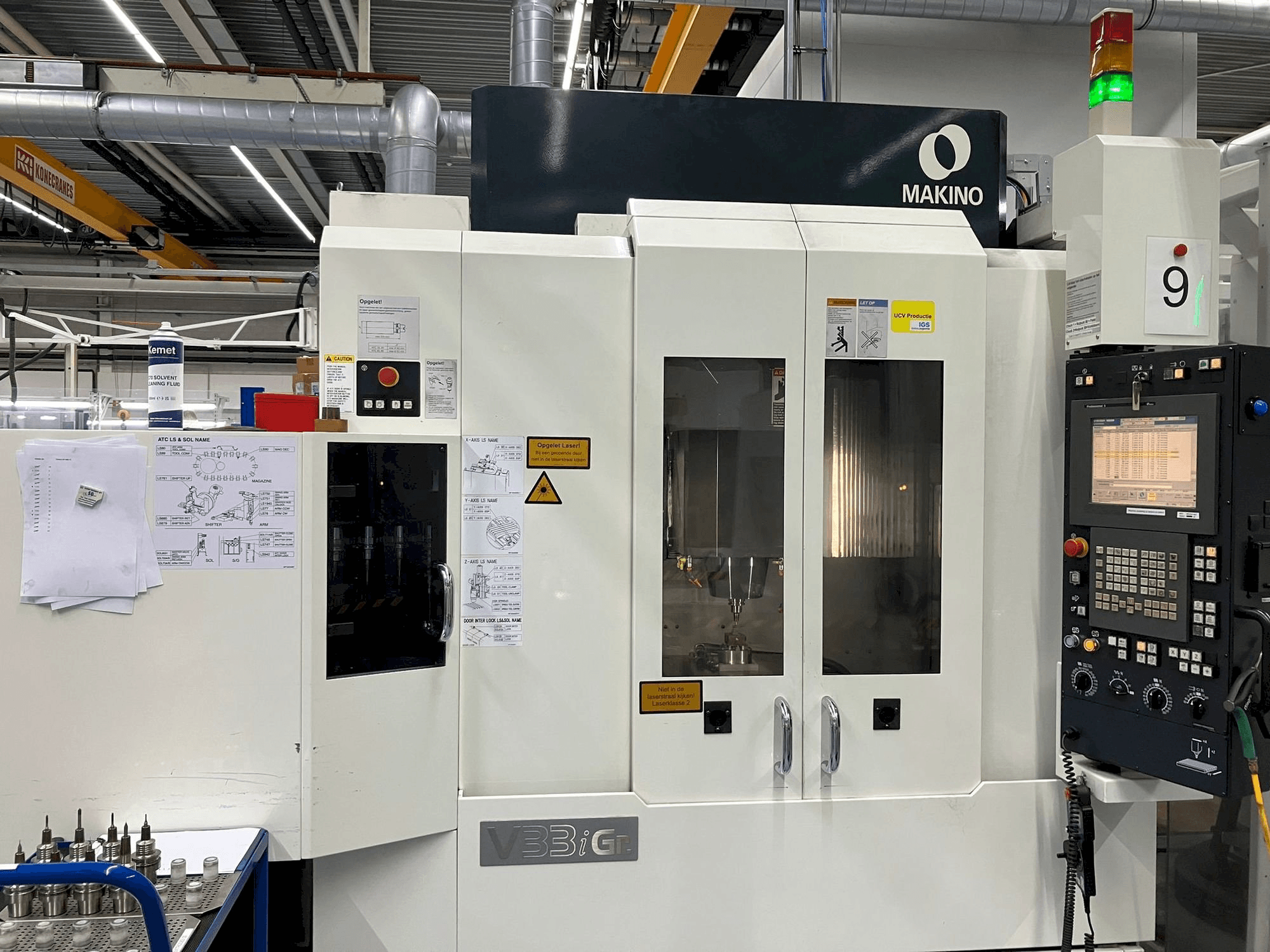

This Makino V33i Graphite Vertical Machining Center was made in the year 2014 in Germany. It is equipped with a Professional 6 control unit and has 3 axis. The machine has a spindle speed of 20000 rpm.
Overview
- brand: Makino
- year: 2014
- MODEL: V33i Graphite
- application type: Milling
- Location: Netherlands
- machine type: Vertical Machining Centre
- control unit brand: MAKINO
Technical Information - Makino V33i Graphite
Control Unit
- Control Brand: MAKINO
- Control Model: Professional 6
Dimensions
- Table Length: 750 mm
- Table Width: 450 mm
Movement
- Number of Axes: 3
- X-axis Travel: 650 mm
- Y-axis Travel: 450 mm
- Z-axis Travel: 350 mm
Technical Specification
- Spindle Speed: 20000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Rapid traverse 20,000 mm/min
- Cutting feedrate 10,000 mm/min
- Maximum workpiece 750 x 635 x 250 mm
- Maximum payload 300 kg
- Atc capacity 25 (40, 60)
- Tool to tool 4. 8 secs
- Maximum tool diameter 80 mm
- Maximum tool weight 7 kg
- Optional atc capacity: yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
