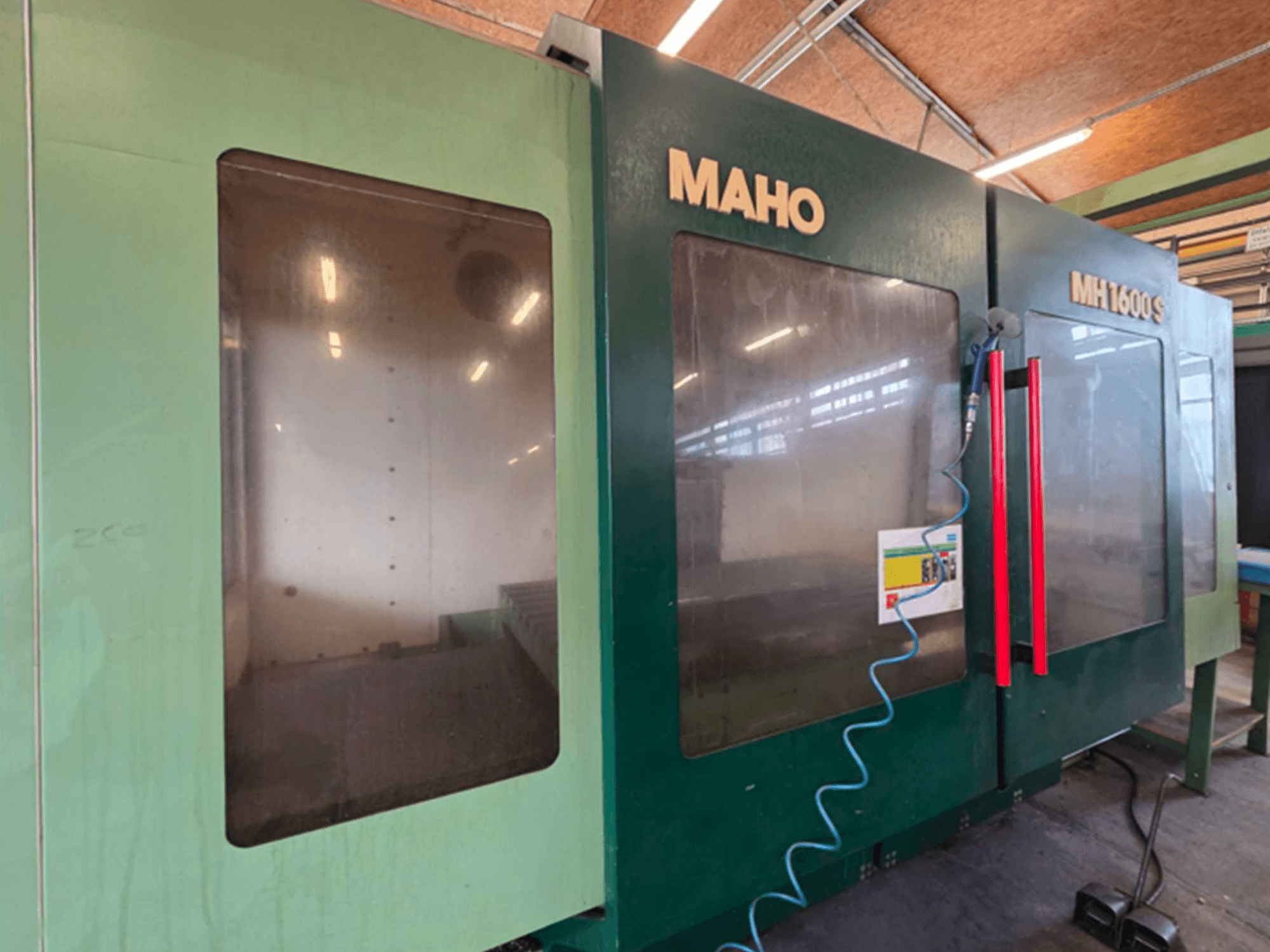

This 3-axis MAHO 1600S universal machining centre was manufactured in 1989. It has approximately 38,800 machine hours and was operational until 2025 without notable issues. The machine features a functional coolant system and comes with available manuals and documentation. If you are looking to get high-quality machining capabilities, consider the MAHO 1600S machine we have for sale. Contact us for further details.

Overview

  • brand: MAHO
  • year: 1989
  • MODEL: 1600S
  • production hours: 38800
  • application type: Milling
  • Location: Switzerland
  • machine type: Universal Machining Centre
  • control unit brand:

Technical Information - MAHO 1600S

Dimensions

  • Machine Height: 15100 mm
  • Machine Length: 4330 mm
  • Machine Weight: 2995 kg
  • Machine Width: 3650 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 1600 mm
  • Y-axis Travel: 800 mm
  • Z-axis Travel: 800 mm

Technical Specification

  • Max. Tool Weight: 15 kg
  • Spindle Power: 22.5 kW
  • Spindle Speed: 4000 RPM

Additional Information

  • Main spindle drive power kW 22.5

  • Tool interface ISO 50

  • Tool clamping force kN 23

  • Spindle speed range rpm 20–4000

  • Spindle speed override % 80–120

  • Feed rate X Y Z mm/min 1–4000

  • Minimum programmable feed mm/min 0.01

  • Rapid traverse m/min 10

  • Feed and rapid override % 0–140

  • Tool magazine capacity 36

  • Tool holder ISO 7388 Type B

  • Max tool diameter mm 160/210

  • Max tool diameter adjacent free mm 125

  • Max tool length mm 400

  • Max tool weight kg 15

  • Compressed air approx bar 7

  • Table size mm 980×1800

  • T-slot spacing mm 100

  • Max workpiece weight kg 3000

  • Voltage V 220/380

  • Frequency Hz 50

  • Total connected load kVA 37.5

  • Total load with coolant kVA 45.0

  • Positioning resolution mm 0.001

  • Last operational year 2025

  • Condition ran until 2025 without notable issues

  • Documentation manuals available

  • Coolant system available functional

  • Tool changer/chain magazine not present/ included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
