- ➤ Used LVD Phoenix FL 3015 For Sale | gindumac.com

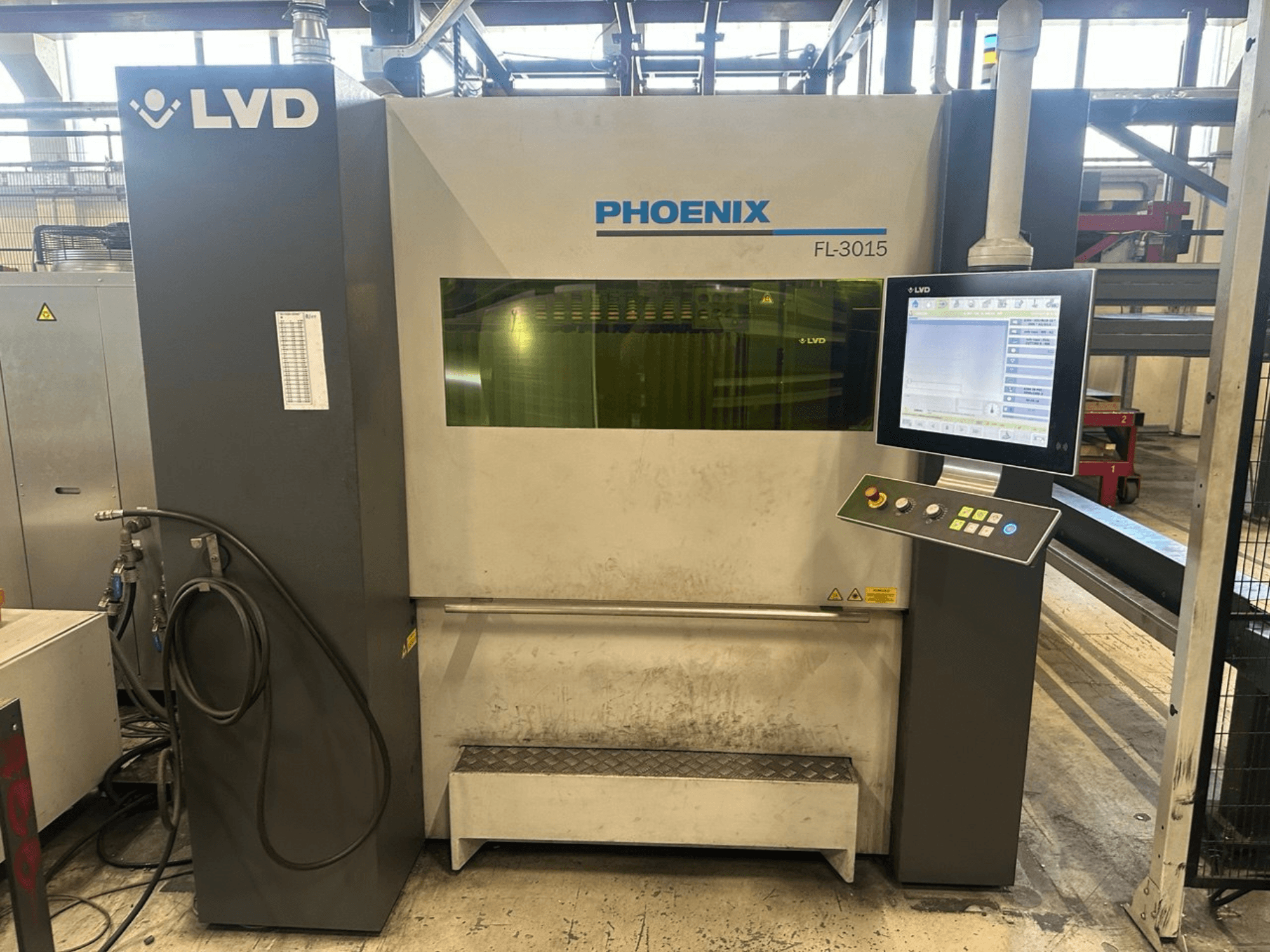

This 3-axis LVD Phoenix FL 3015 was manufactured in 2019 and features an 8 kW IPG laser source, capable of handling sheet sizes up to 3000 × 1500 mm. It boasts a rapid positioning speed of 140 m/min and can support a maximum sheet weight of 900 kg. If you are looking to get high-quality cutting capabilities, consider the LVD Phoenix FL 3015 machine we have for sale. Contact us for more information.
Overview
- brand: LVD
- year: 2019
- MODEL: Phoenix FL 3015
- application type: Cutting
- Location: Italy
- machine type: Fiber Laser Cutting Machine
Technical Information - LVD Phoenix FL 3015
Dimensions
- Machine Height: 2250 mm
- Machine Length: 10500 mm
- Machine Weight: 14000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 3070 mm
- Y-axis Travel: 1570 mm
- Z-axis Travel: 130 mm
Technical Specification
- Laser Power: 8 kW
Additional Information
Laser source: IPG
Maximum sheet size: 3000 × 1500 mm
Positioning speed (X–Y): 140 m/min
Positioning accuracy: ±0.050 mm/m
Repeatability: ±0.025 mm
Maximum sheet weight: 900 kg
Electrical consumption: 28.1 kW/h
Compressed air consumption: 30 Nm³/h
Cutting gases: Oxygen (O₂) / Nitrogen (N₂)
Gas pressure: min. 12 bar – max. 32 bar
Ground resistance: < 10 Ohm
Additional equipment
Interface for third-party automation system LM4400
Automatic nozzle changer LM5130
Automation cleaning unit LM5600
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
