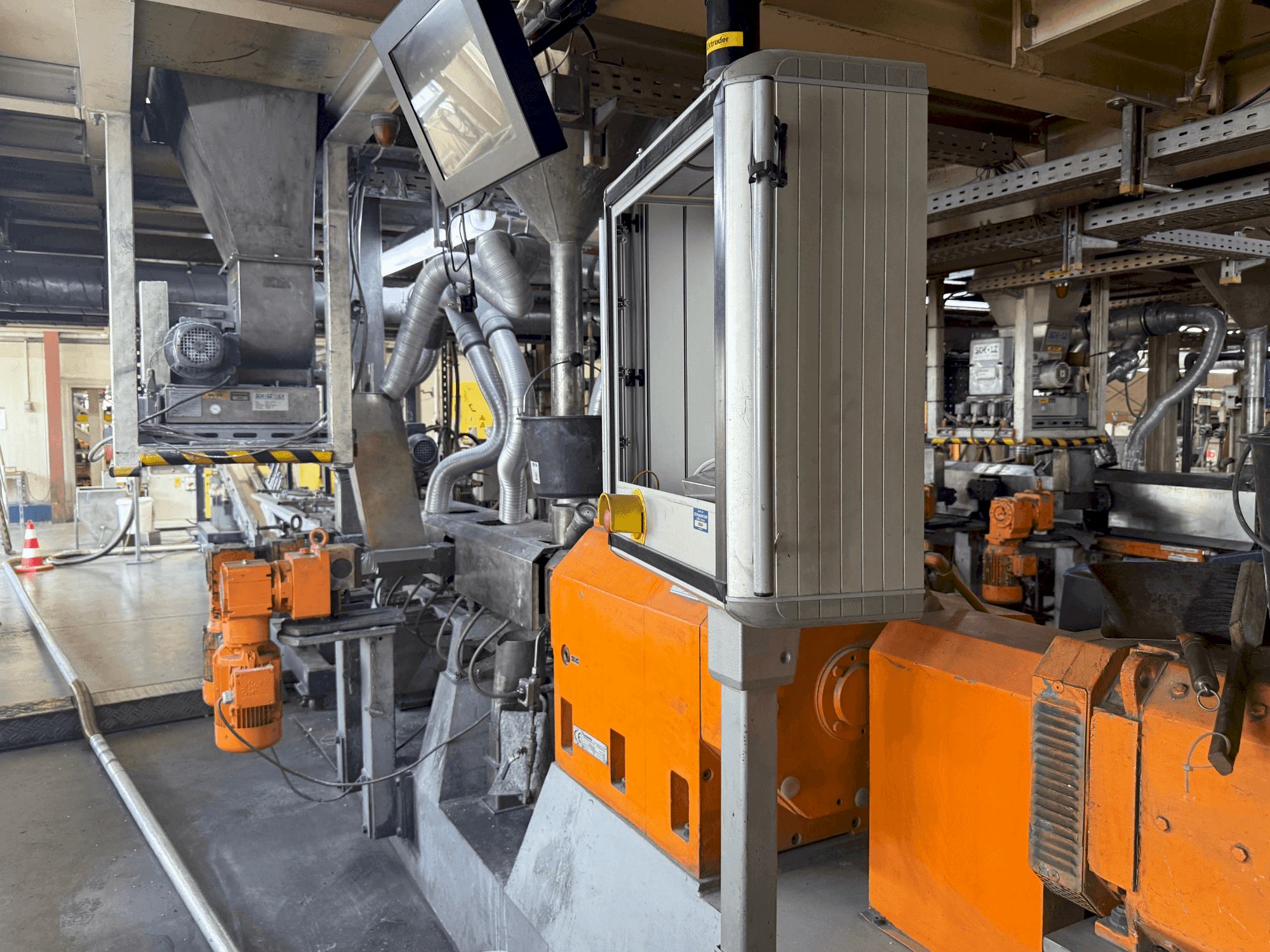

Left side view of Leistritz ZSE 50HP-40D machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Leistritz ZSE 50HP-40D

Photo Gallery

Leistritz - ZSE 50HP-40DDE-EXT-LEI-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Leistritz ZSE 50 HP-40D For Sale | gindumac.com

Show in original language

This Leistritz ZSE 50 HP-40D twin screw extruder from 2004 has a screw diameter of 50 mm and a robust torque output of approximately 1572 Nm. It is optimized for pharmaceutical and high-throughput compounding applications. The machine offers a throughput capacity of around 200 kg/h at a maximum screw speed of 500 rpm, powered by a 65 kW drive. Featuring a high specific torque density (~15 Nm/cm³) and an OD/ID ratio of ~1.66, it delivers excellent throughput and torque balance. Consider the opportunity to acquire this high-performance twin screw extruder. Contact us for more information.

Overview

brand: Leistritz
year: 2004
MODEL: ZSE 50HP-40D
application type: Extrusion
Location: Germany
machine type: Twin Screw Extruder

Technical Information - Leistritz ZSE 50HP-40D

General Data

Measurements width: 4630 MM
Measurements depth: 1800 MM
Measurements height: 2120 MM

Injection Unit

Screw diameter: 50

Additional Information

Additional equipment

Dryer
Feeder
Strand chute
Granulator

Machine Benefits

Qualitative Machine Benefits

Complete, ready-to-run extrusion line

Technical Machine Benefits

High specific torque density up to ~15 nm/cm³ and od/id ratio of ~1. 66 for excellent throughput and torque balance
A high-throughput, co-rotating twin-screw extruder with a 50 mm screw diameter, part of leistritz’s zse 50 hp‑ph series

Extra Information

This extrusion line is being sold due to the closure of the production site. In total, three Leistritz and one Coperion extrusion lines are available. Package offers can be arranged.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
