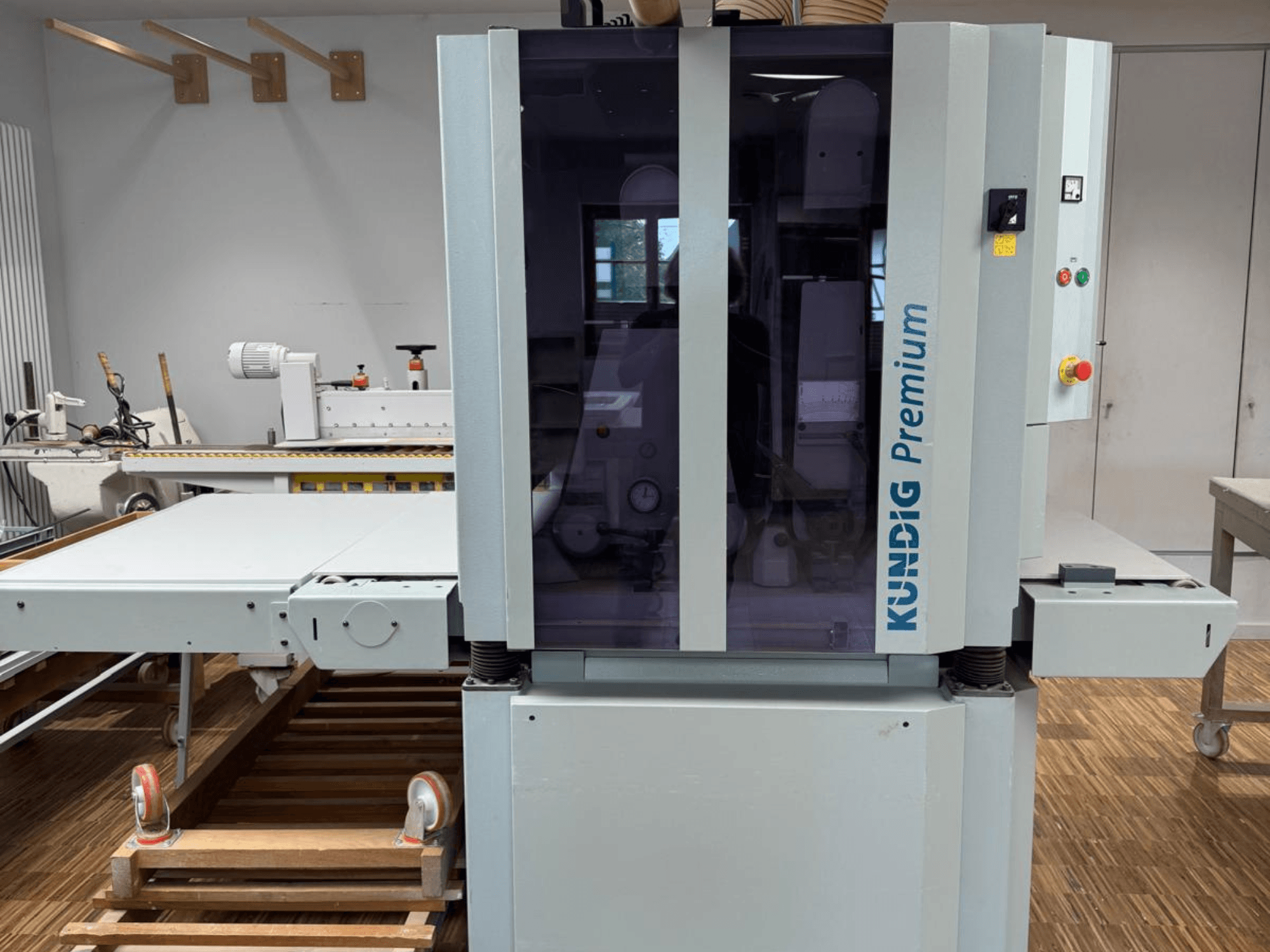

Belt sander manufactured in 2022. This Kundig Premium - 2-1100-RP is designed for industrial woodworking, featuring a working width of 1100 mm and a maximum working height of 200 mm. It includes two sanding units, oscillating sanding belts, and a motorized table height adjustment with a digital display. If you are looking to get high-quality sanding capabilities, consider the Kundig Premium - 2-1100-RP machine we have for sale. Contact us for further details.
Overview
- brand: Kundig
- year: 2022
- MODEL: Premium - 2-1100-RP
- production hours: 207
- application type: Sanding
- Location: Germany
- machine type: Belt Sander
- control unit brand:
Technical Information - Kundig Premium - 2-1100-RP
Technical Specification
- Working Width: 1100 mm
Additional Information
Application type: Industrial woodworking wide belt sanding machine
Suitable for: Calibration sanding, fine sanding and finish sanding of wood panels and solid wood parts
Power supply: 3~ 400 V AC
Control voltage: 24 V DC
Frequency: 50 Hz
Max. current: 35.20 A
Rated power: 16.50 kW
Maximum working height: 200 mm
Sanding belt size: 1120 × 2000 mm
Two sanding units installed
Oscillating sanding belts
Pneumatic belt oscillation control
Pneumatic belt tensioning system
Automatic star-delta motor start
Motorized table height adjustment with digital display
Electronic feed speed control
Feed speed range: 3 – 15 m/min
Touchscreen control system
TEACH-IN memory function
Ammeter load monitoring system
Emergency stop system
Pneumatic segmented pressure beam
Automatic workpiece thickness measurement
Automatic machine top opening system
Disc brake system for sanding belts
Soft-start main motor system
First sanding unit:
Rubber contact drum
Pneumatic segmented contact pressure system
Adjustable contact roller positioning
Second sanding unit:
Precision sanding pad unit
Quick-change graphite pad system
Spring-supported pressure roller at infeed
Rubber pressure roller at outfeed
Conveyor system:
Electronic feed control
Vacuum table system
Feed belt with high-grip surface
Main motor power: 15 kW (20 HP)
Feed motor power: 0.75 kW
Dust extraction connection: Ø 150 mm
Machine construction:
Heavy-duty industrial frame
Fully enclosed sanding chamber
Sound-insulated construction
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
