KUKA - KR16-2HU-ROB-KUK-2017-00001

Name: KUKA KR16-2
Brand: KUKA
SKU: HU-ROB-KUK-2017-00001
Price: 13050 GBP
Availability: InStock

£ 13,050

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Automation Equipment
➤ Used KUKA KR16-2 - 2017 - Robot For Sale | gindumac.com

Show in original language

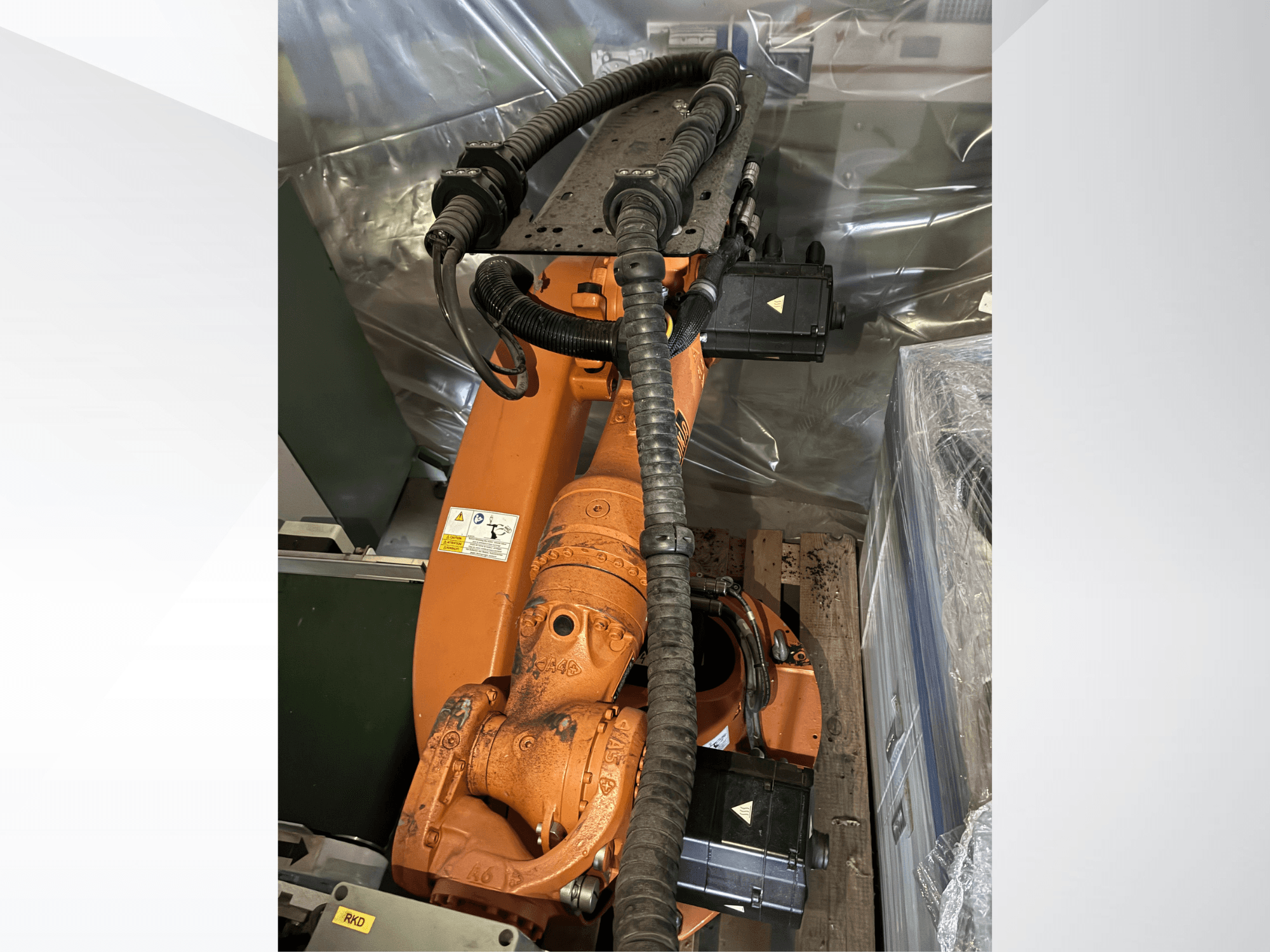

This 6-axis KUKA KR16-2 robot arm was manufactured in 2017. It features a payload capacity of 16 kg and a maximum reach of 1650 mm. Versatile mounting options include floor, inverted, or angled setups. Ideal for material handling, assembly, welding, and more. Weighs approximately 280 kg. Compatible with KUKA KR C2 or KR C3 series controllers. Contact us for more information about this machine.

Overview

brand: KUKA
year: 2017
MODEL: KR16-2
application type: Robotics
Location: Hungary
machine type: Robot Arm

Technical Information - KUKA KR16-2

General Data

Machine weight: 280 kg

Main drive

Number of axis: 6
Max payload: 16 kg

Additional Information

Additional equipment

Drive System: Servo motors with harmonic drive gearing

Machine Benefits

Technical Machine Benefits

Application areas: material handling, assembly, welding, machine tending, pick and place
Safety features: integrated safety functions according to industrial standards
Reach: 1650 mm
Repeatability: ±0. 03 mm
Mounting options: floor, inverted, or angled mounting possible
Power supply: typically 400 v, 50/60 hz
Controller compatibility: compatible with kr c2 or kr c3 series

Extra Information

Movement Motion Range per Axis: Axis 1 (Base rotation): ±170° Axis 2 (Shoulder): +85° to -125° Axis 3 (Elbow): +156° to -102° Axis 4 (Wrist 1): ±185° Axis 5 (Wrist 2): ±120° Axis 6 (Wrist 3): ±350°

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
