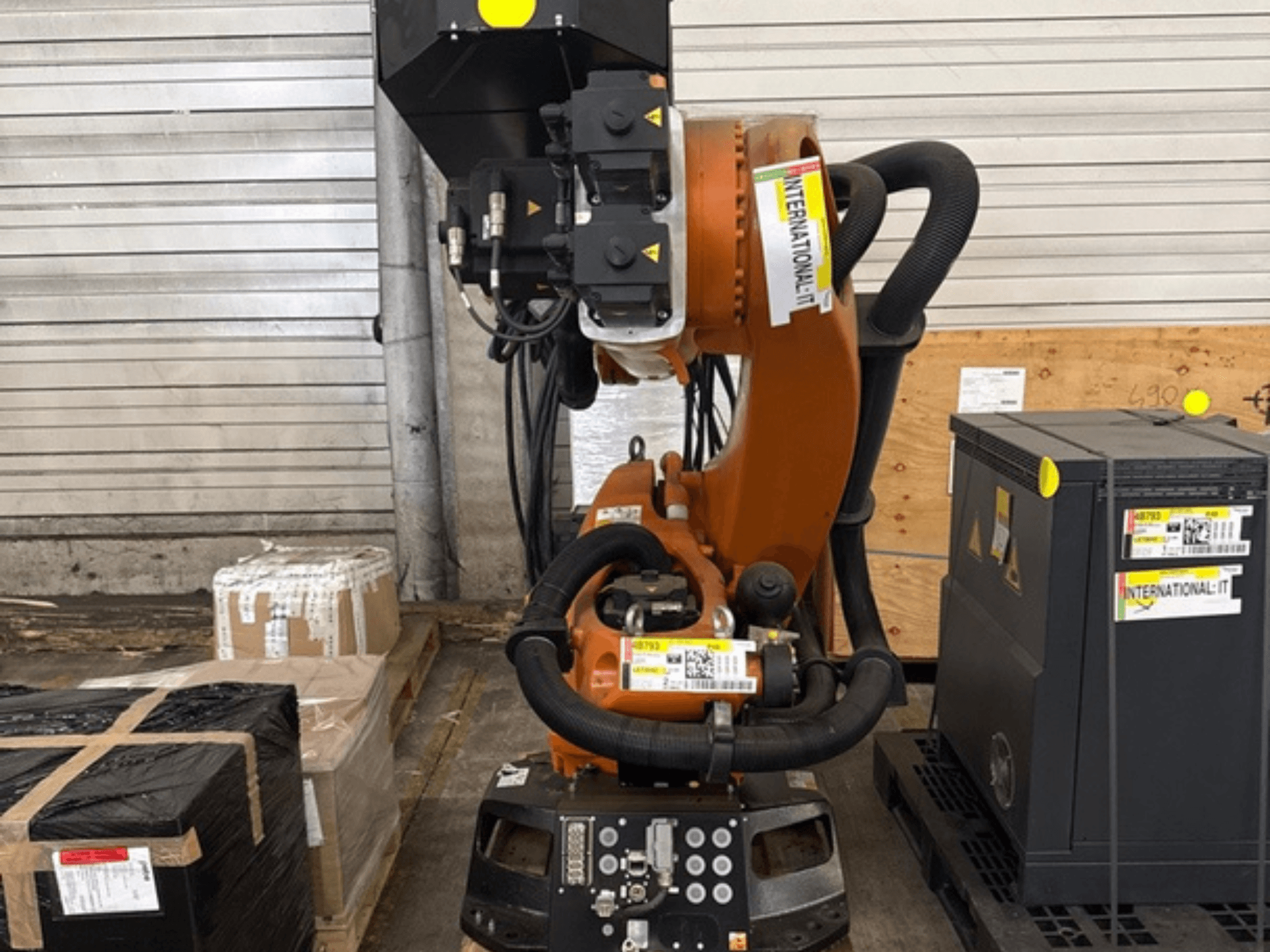

This 6-axis KUKA KR 210 R2700 extra was manufactured in 2016. It features a maximum reach of 2,696 mm and a nominal load capacity of 210 kg, making it suitable for various applications. The robot arm is designed for floor mounting and has a compact footprint of 830 × 830 mm. If you are looking to get high-quality automation capabilities, consider the KUKA KR 210 R2700 extra robot arm we have for sale. Contact us for further details.

Overview

  • brand: KUKA
  • year: 2016
  • MODEL: KR 210 R2700 extra
  • application type: Robotics
  • Location: Italy
  • machine type: Robot Arm

Technical Information - KUKA KR 210 R2700 extra

Dimensions

  • Machine Weight: 1068 kg

Movement

  • Number of Axes: 6

Technical Specification

  • Max. Handling Weight: 210 kg
  • Max. Reach: 2696 mm

Additional Information

  • Operating hours: 5,600 h

  • Nominal load (payload): 210 kg

  • Nominal additional load (carousel / swing arm / arm): 0 kg / 0 kg / 50 kg

  • Nominal total load: 260 kg

  • Position repeatability (ISO 9283): 0.06 mm

  • Mounting position: Floor

  • Footprint: 830 × 830 mm

  • Axis movement ranges:

    • A1: ±185°

    • A2: -140° to -5°

    • A3: -120° to 155°

    • A4: ±350°

    • A5: ±125°

    • A6: ±350°

  • Axis speeds at nominal load:

    • A1: 123°/s

    • A2: 115°/s

    • A3: 112°/s

    • A4: 179°/s

    • A5: 172°/s

    • A6: 219°/s

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
