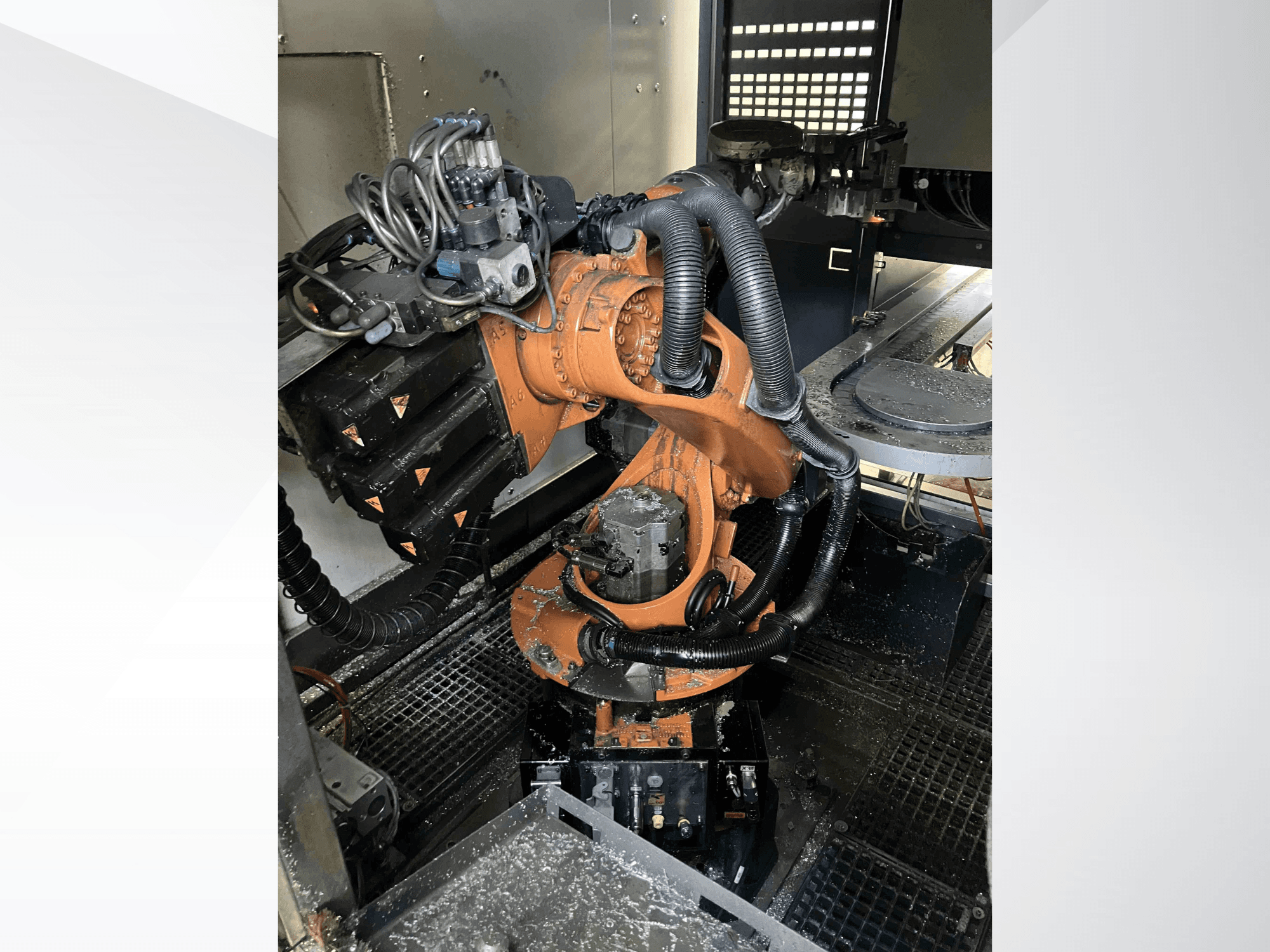

KUKA KR 16 robot arm viewed from a top angle, showcasing mechanical components and wiring in a workshop environment.
KUKA KR 16 robot arm viewed from a top angle, showcasing mechanical components and wiring in a workshop environment.

KUKA - KR 16DE-ROB-KUK-2013-00002

£ 8,711
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 6-axis KUKA KR 16 was manufactured in 2013. It features a maximum reach of approximately 1610 mm and a payload capacity of around 16 kg. The robot arm is designed for versatility, allowing for floor or ceiling mounting. If you are looking to get high-quality automation capabilities, consider the KUKA KR 16 robot arm we have for sale. Contact us for further details.

Overview

  • brand: KUKA
  • year: 2013
  • MODEL: KR 16
  • application type: Robotics
  • Location: Germany
  • machine type: Robot Arm

Technical Information - KUKA KR 16

Dimensions

  • Machine Weight: 235 kg

Movement

  • Number of Axes: 6

Technical Specification

  • Max. Handling Weight: 16 kg
  • Max. Reach: 1610 mm

Additional Information

  • 2x units available

  • Payload: approx. 16 kg (KR 16 series standard)

  • Repeatability: ±0.05 mm

  • Maximum reach: approx. 1610 mm

  • Mounting position: floor or ceiling

  • Additional arm load: 10 kg (additional load on arm variable)

  • Maximum total load: 46 kg

  • Axis ranges:

    • Axis 1: ±185°

    • Axis 2: +35° to −155°

    • Axis 3: +154° to −130°

    • Axis 4: ±350°

    • Axis 5: ±130°

    • Axis 6: ±350°

  • Axis speeds:

    • Axis 1: approx. 156 °/s

    • Axis 2: approx. 156 °/s

    • Axis 3: approx. 156 °/s

    • Axis 4: approx. 330 °/s

    • Axis 5: approx. 330 °/s

    • Axis 6: approx. 615 °/s

  • Protection class: IP65 (robot)

  • Operating temperature: +5 °C to +55 °C

  • Storage temperature: −20 °C to +60 °C

  • Drive system/technology: AC brushless servo motors

  • Gear system: maintenance-free gear units

  • Brake system: motor holding brakes on all axes

  • Power supply: 3-phase AC (via KRC2 controller)

  • Controller: KRC2

    • PC CPU: Celeron 2.0 GHz

    • RAM: DDR 512 MB

    • Software: KRC V5.6.10 Build 54

    • Programming: via KUKA KCP teach pendant

  • Installation environment: industrial

  • Robot structure: cast light alloy construction

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
