➤ Used Krauss Maffei KME 45 XS For Sale | gindumac.com

Show in original language

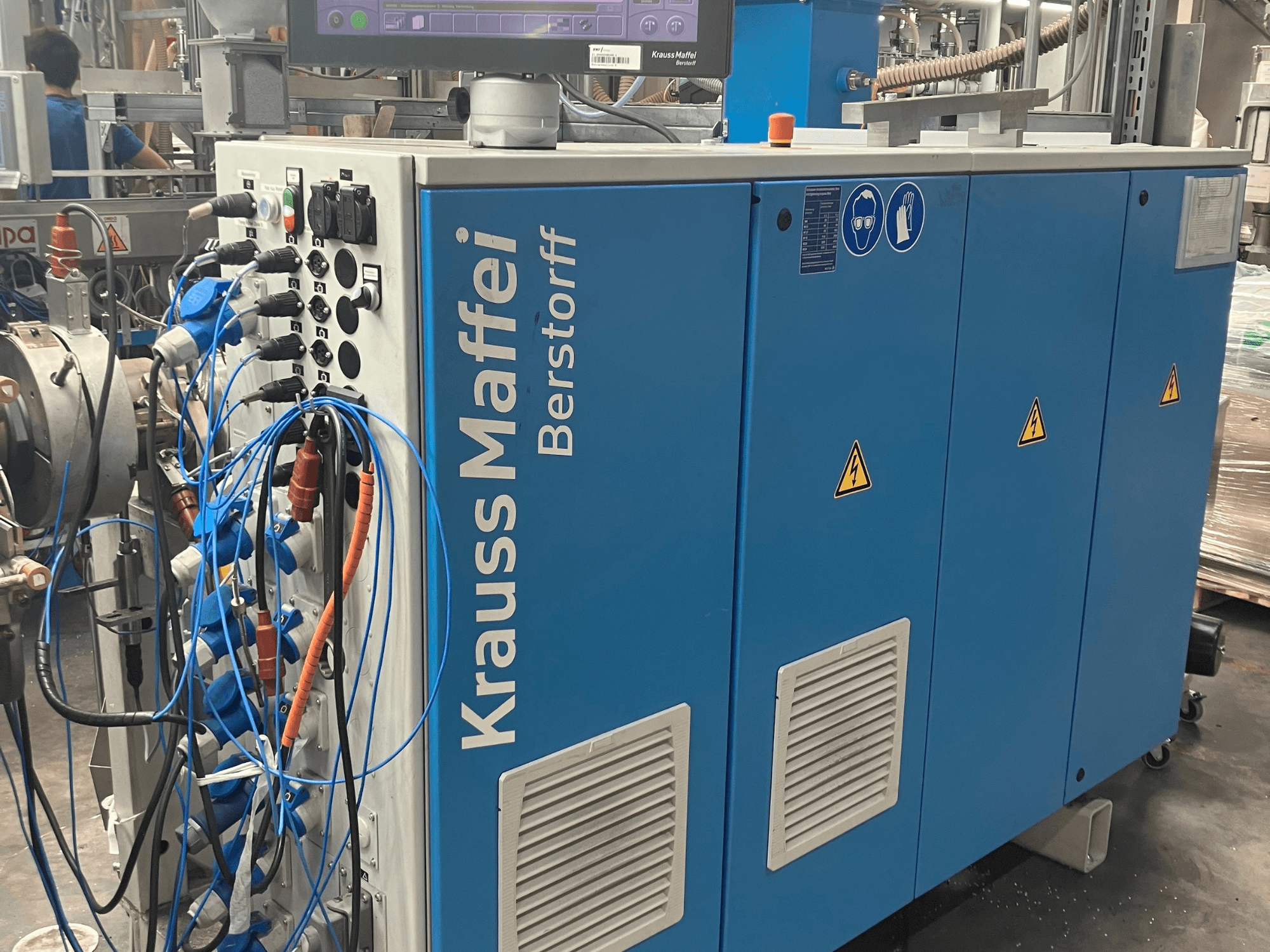

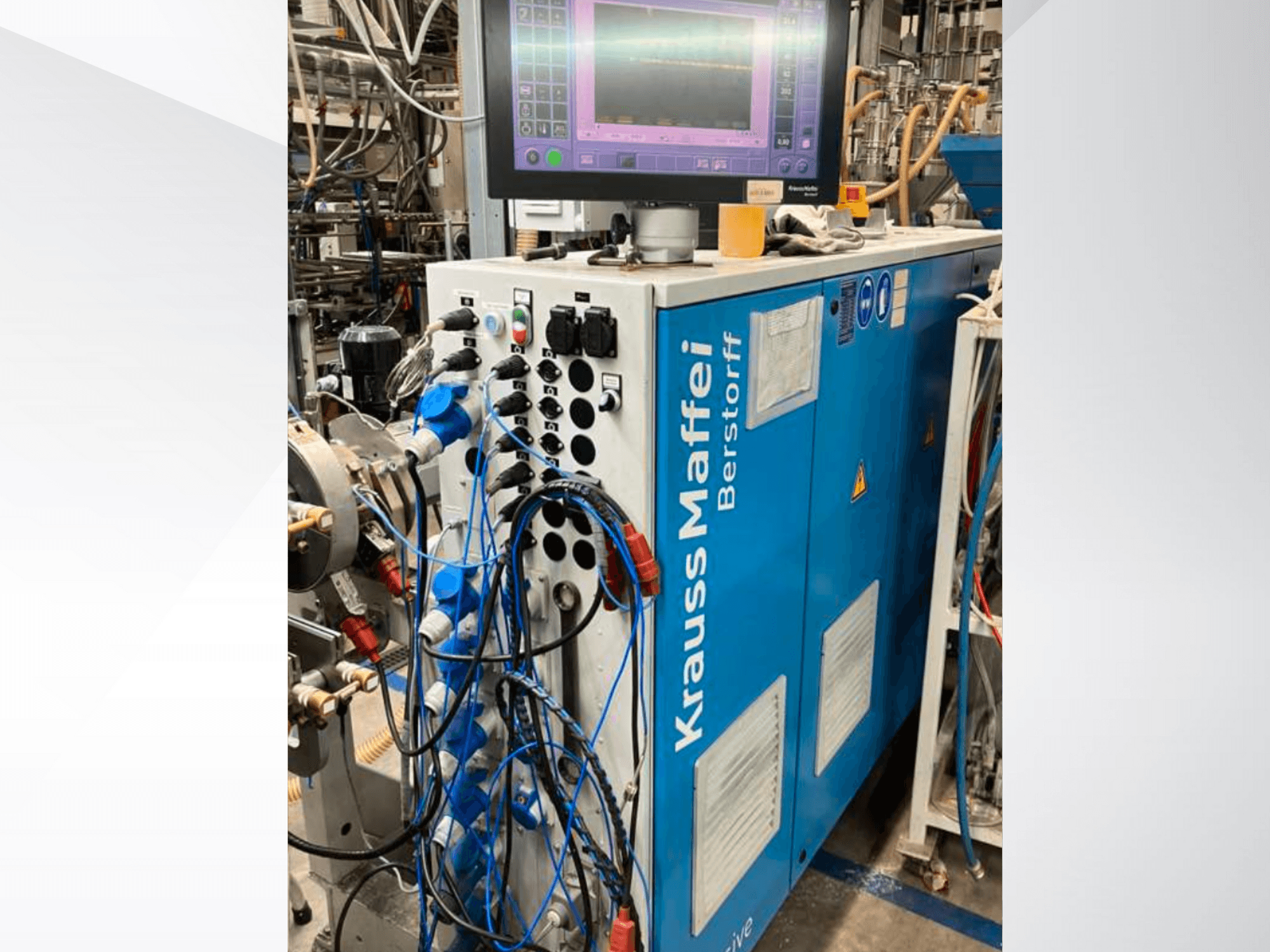

This Krauss Maffei KME 45 XS single screw extruder was manufactured in 2016. It features a screw diameter of 45 mm and a length of 1350 mm, with a drive power of 23 kW and a maximum speed of 2486 rpm. The machine includes five heating/cooling zones and can handle a maximum air flow of 5 × 630 m³/h. If you are looking to get high quality extrusion capabilities consider the Krauss Maffei KME 45 XS machine we have for sale. Contact us for more information.

Overview

brand: Krauss Maffei
year: 2016
MODEL: KME 45 XS
application type: Extrusion
Location: Germany
machine type: Single Screw Extruder

Technical Information - Krauss Maffei KME 45 XS

Dimensions

Machine Height: 1960 mm
Machine Length: 2120 mm
Machine Weight: 1100 kg

Technical Specification

Screw Diameter: 45 mm

Additional Information

Main drive
- Rated power: 23 kW
- Max drive speed: 2486 rpm
- Gear ratio: 1:12.4
Screw
- Length: 1350 mm
- Speed range: 20–200 rpm
Cylinder
- Heating/cooling zones: 5
- Max air flow with fan cooling: 5 × 630 m³/h
- Max installed cylinder heating capacity: 10 kW
Dimensions and weight
- Extrusion height: 1000 mm
- Width (incl. control panel): 1125 mm
Connection data
- Cooling water requirement: approx. 0.6 m³/h
- Tool heating zones:
  - Pipe extrusion: 4 × 10 kW
  - Profile extrusion: 5 × 3.6 kW
- Max total connected load:
  - Pipe extrusion: 90 kW
  - Profile extrusion: 76 kW
Material feed
- Hopper volume: 0.1 m³

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
