Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Krauss Maffei - 850-12000 MXPL-INJ-KRA-2011-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used Krauss Maffei 850-12000 MX For sale | gindumac.com

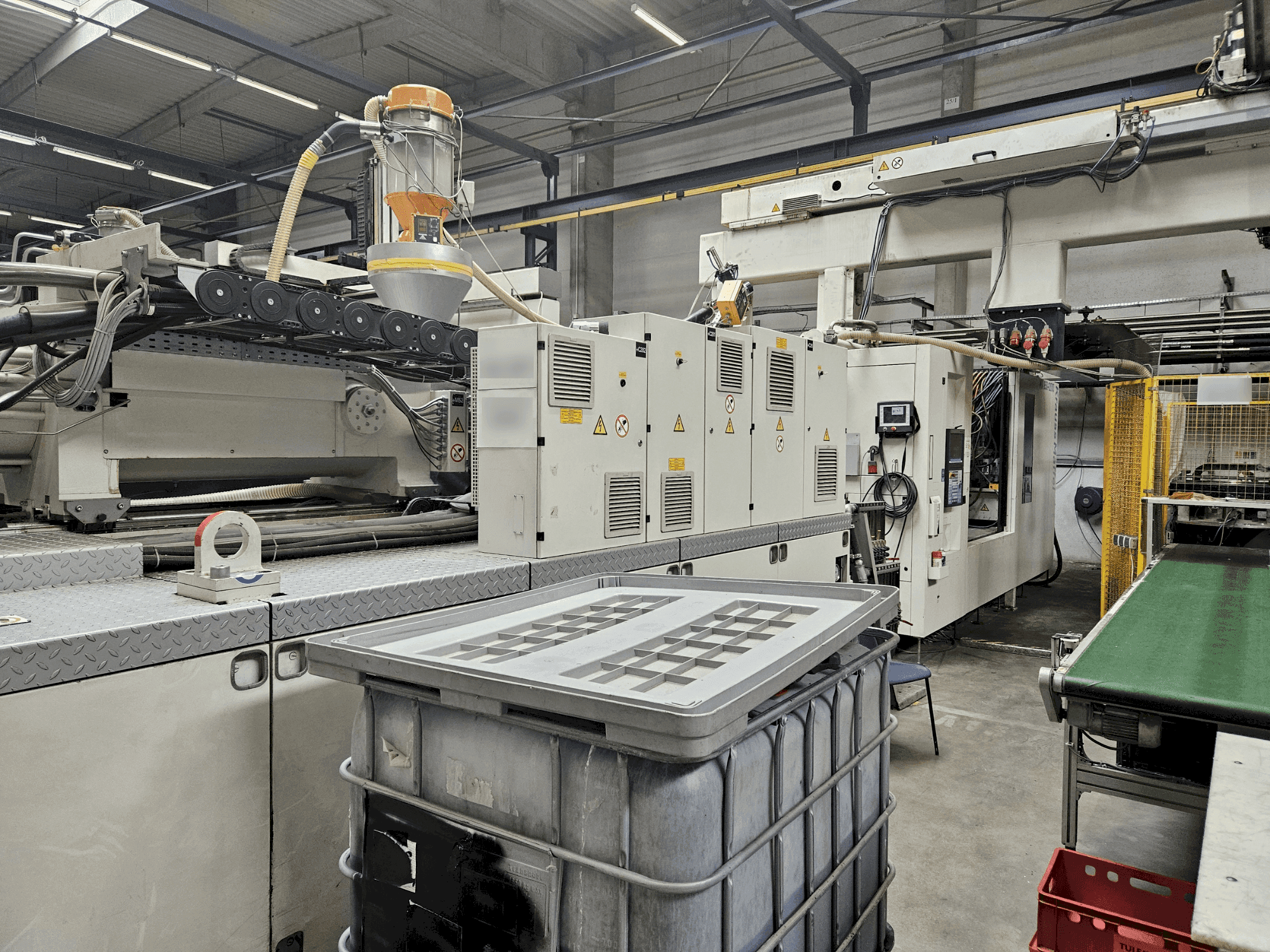

This Krauss Maffei 850-12000 MX was manufactured in 2011. A robust hydraulic clamping unit and a standard screw with a diameter of 135 mm ensure efficient operation. It features a high injection pressure of 1389 bar and a maximum injection rate of 1415 cm³/s. The machine includes a KM LRX 500 handling robot, enhancing automation and productivity. Ideal for those needing a dependable injection moulding machine. Contact us for more information.
Overview
- brand: Krauss Maffei
- year: 2011
- MODEL: 850-12000 MX
- production hours: 73436
- application type: Injection Moulding
- Location: Poland
- machine type: Hydraulic Injection Moulding Machine
- control unit brand: KRAUSS MAFFEI
Technical Information - Krauss Maffei 850-12000 MX
Control Unit
- Control Brand: KRAUSS MAFFEI
- Control Model: MC5
Additional Information
Additional equipment
- Handling Robot: KM LRX 500
Machine Benefits
Qualitative Machine Benefits
- High injection pressure and rate for efficient molding
- Versatile with options for core pullers and hot runner control
Technical Machine Benefits
- High clamping force of 8500 kn for robust operations
- Advanced control system for precise operations
- Equipped with a handling robot for automated processes
- Clamping force: 8500 kn
- Type of clamping unit: hydraulic
- Screw diameter: 135 mm, volume of screw channel: 8588 cm³
- Non-return valve: yes
- Max. Injection pressure: 1389 bar, max. Injection rate: 1415 cm³/s
- L/d ratio: 23:1
- Plasticizing capacity: 8588 g/s, injection capacity: 7815 cm³, shot weight in ps: 1600 g
Extra Information
Opening Stroke: 500/1100 mm, Mold Height (min/max): 2100 mm, Max. Daylight Opening: 1600/1530 mm, Platen Dimensions: 1120 x 1000 mm, Clearance Between Tie Bars: 12200 mm, Max. Mold Weight: 250/250 kg, Centering Ring: M36, Ejector Stroke: 300 mm, Core Pullers: 1, Cooling Circuits: 2, Hot Runner Control: 2 zones,
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
