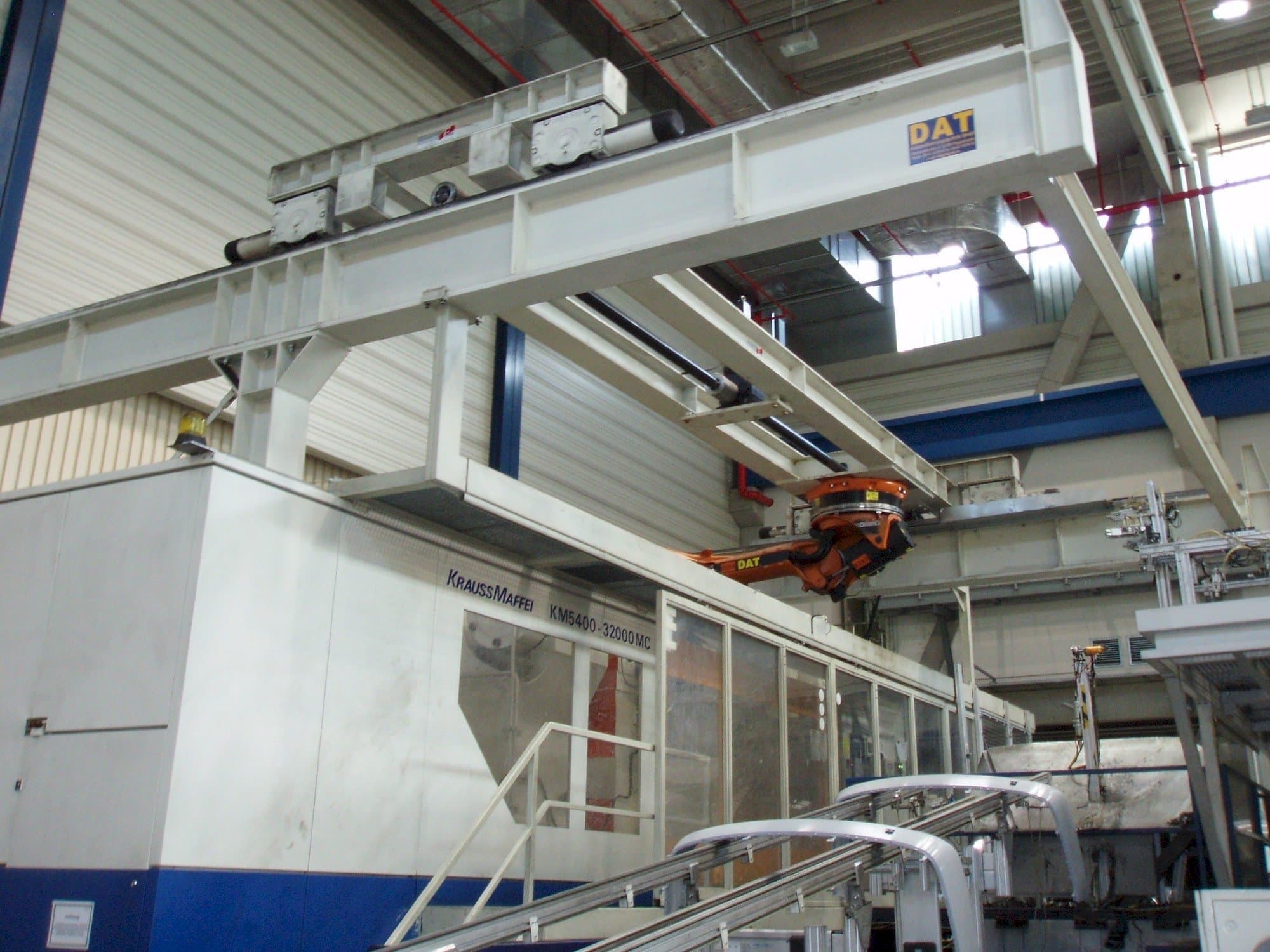

Front view of Krauss Maffei 5400-32000 MC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 5400-32000 MC

Photo Gallery

Krauss Maffei - 5400-32000 MCDE-INJ-KRA-2001-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 5400-32000 MC Injection Moulding Machine

Show in original language

This Krauss Maffei 5400-32000 MC Injection Moulding Machine was made in the year 2001 in Germany. It is equipped with a Krauss Maffei MC4 control unit. It counts with clamping force of 54000 kN.

Overview

brand: Krauss Maffei
year: 2001
MODEL: 5400-32000 MC
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 5400-32000 MC

Control Unit

Control Brand: KRAUSS MAFFEI
Control Model: MC4

Dimensions

Machine Depth: 6000 mm
Machine Height: 4000 mm
Machine Weight: 335658 kg

Technical Specification

Clamping Force: 54000 kN
Max. Shot Weight: 15869 g
Screw Diameter: 175 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Connector water: rmi 209 ds/as x 3
Number of hotrunner heating zones: 72
Inner width between tie bars h-v: 2500m-2200mmm,
Minium mold dimension: ø 1540 mm
Center ring fs/ms: ø 350 mm
Nozzle thread: m56 x 3
Shutt-off nozzle: hydraulic
Number of kascades: 12 fach
Number of corepullers fixed side: 2
Number of corepullers moving side: 3/1

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
