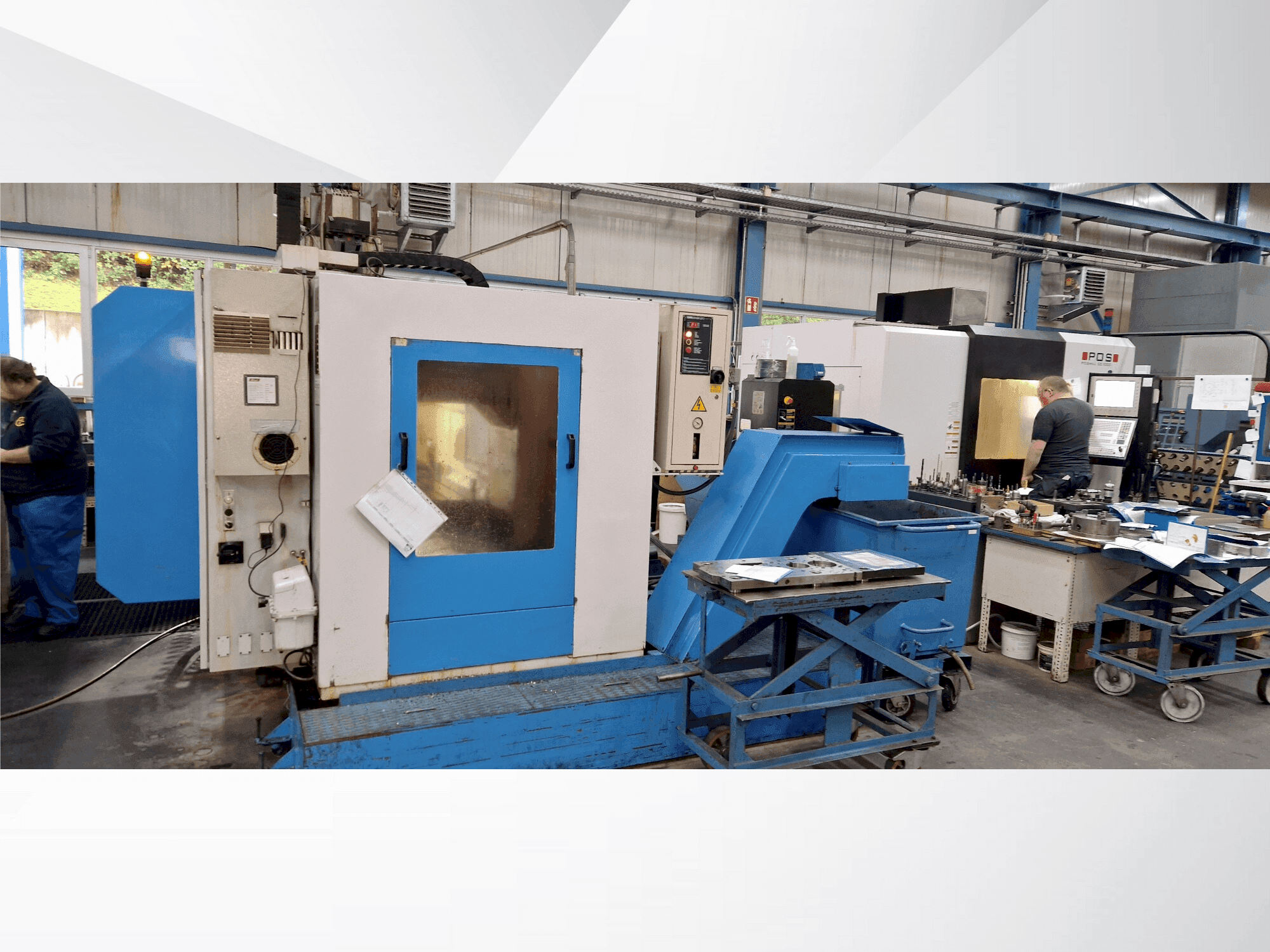

This 3-axis KONDIA HM-2010 vertical machining centre was manufactured in 2000. It features a large working envelope with dimensions X 2000mm, Y 1000mm, Z 800mm, and is equipped with a SK 40 spindle and a 20-fold tool changer. The Heidenhain 426 control ensures precision and ease of use. A great opportunity to buy this KONDIA HM-2010 vertical machining centre. Contact us for further details regarding this vertical machining centre.
Overview
- brand: KONDIA
- year: 2000
- MODEL: HM-2010
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - KONDIA HM-2010
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: 426
Dimensions
- Machine Weight: 12000 kg
Technical Specification
- Spindle Power: 7.5 kW
- Spindle Speed: 4000 RPM
- Taper Size: SK 40
Additional Information
Additional equipment
- Coolant System for the Work Spindle: Included
- Number of Tools: 20
- Random Selection System: Yes / Tool Orientation: Non-directional
- Max. Tool Diameter (with adjacent tools): 35 mm / Max. Tool Diameter (without adjacent tools): 135 mm / Max. Tool Length: 250 mm / Max. Tool Weight: 6 kg
- Tool Change Time: 2.3 seconds
- DRIVES Work Spindle Motor (Dual-Winding): 5.5/7.5 kW (Optional: 7.5/11 kW) X and Z Axis Motor (Three-phase): 1.8 kW Y Axis Motor (Three-phase): 1.3 kW
- Coolant System (Work Spindle): 0.8 kW / Coolant System (Tool): 2.5 kW / Total Power Requirement: 14 kW
- Footprint: 5130 x 3570 mm
Machine Benefits
Technical Machine Benefits
- Worktable dimensions: 2000 x 1000 mm
- Number of t-slots: 7 / t-slot spacing: 125 mm / t-slot width: 22 mm / distance from table to floor: 860 mm
- Dimensions of ball screws (x, y, z axes): 50/40/40 mm
- Max. Recommended table load capacity: 2000 kg
- Rapid traverse (x and y axes): 24,000 mm/min / rapid traverse (z axis): 20,000 mm/min / feed rate: 5,000 mm/min
- Max. Available torque (at 330 rpm): 233 nm / max. Distance between milling spindle and table: 635 mm
- Programmable, oriented stop: 0. 1 s
- Positioning accuracy: +/- 0. 01 mm / repeatability: +/- 0. 005 mm / resolution: 0. 001 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
