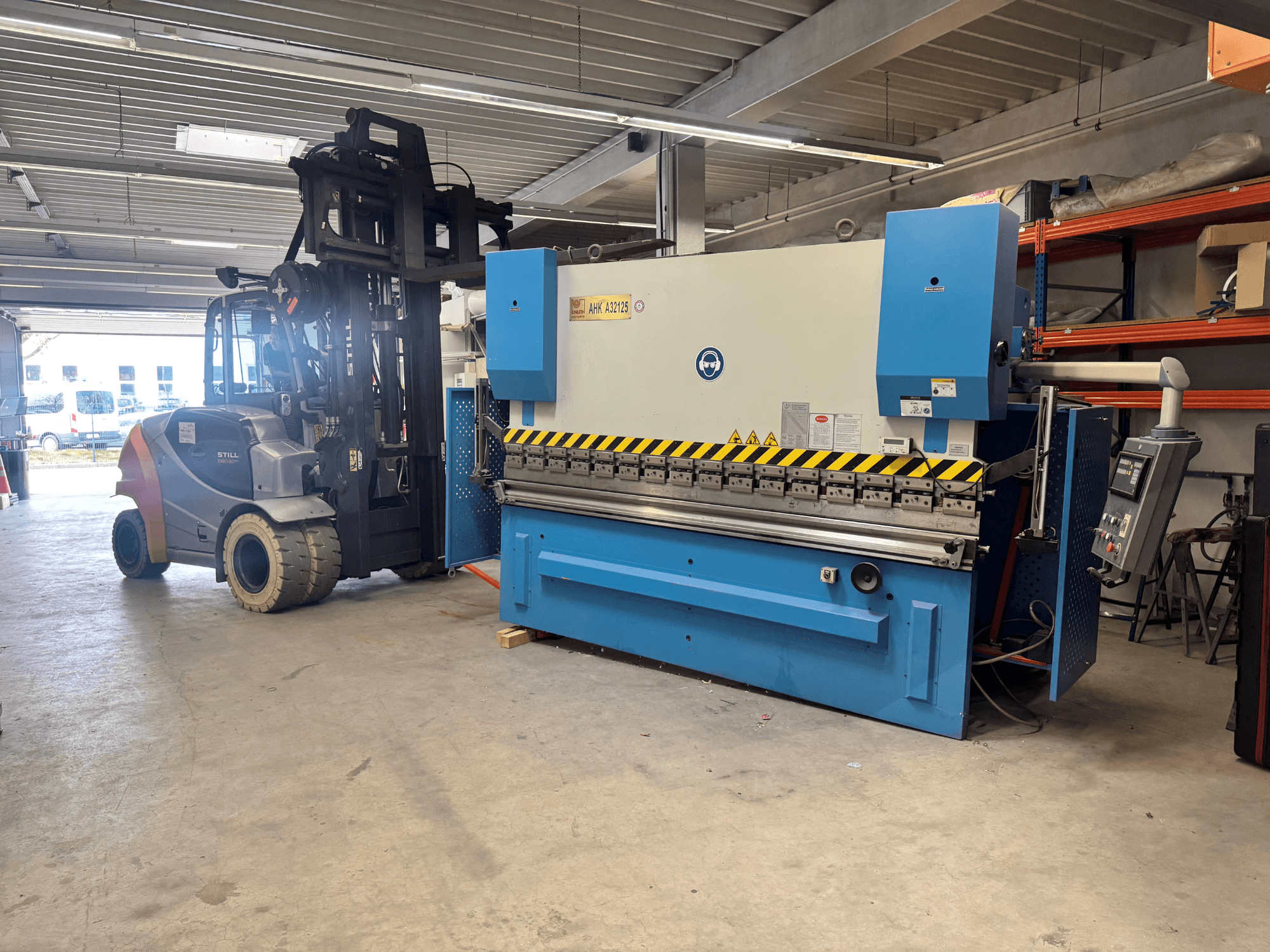

This hydraulic press manufactured in 2010 features a normal pressure of 1250 KN and a maximum working width of 3200 mm. It has a throat depth of 350 mm and a cylinder stroke of 160 mm. The machine operates at a working speed of 9 mm/s and has a robust construction with a weight of 8600 kg. If you are looking to get high-quality pressing capabilities, consider the KNUTH AHK A 32125 machine we have for sale. Contact us for further details.
Overview
- brand: KNUTH
- year: 2010
- MODEL: AHK A 32125
- application type: Bending
- Location: Germany
- machine type: Hydraulic Press
Technical Information - KNUTH AHK A 32125
Dimensions
- Machine Height: 2540 mm
- Machine Length: 3300 mm
- Machine Weight: 8600 kg
- Machine Width: 1680 mm
Movement
- Number of Axes: 2
Technical Specification
- Pressing Force: 1250 Kn
Additional Information
- Normal Pressure / Tonnage: 1250 KN (125 Tons)
- Max. Working Width: 3200 mm
- Distance Between Uprights: 2700 mm
- Throat / Throat Depth: 350 mm
- Machine Height: 395 mm
- Cylinder Stroke: 160 mm
- Table Height: 900 mm
- Working Speed: 9 mm/s
- Approach Speed: 80 mm/s
- Return Speed: 90 mm/s
- Pump Flow Rate: 25 ml/r
- Normal Pump Pressure: 25 MPa
- Power Capacity: 11 KW
- Rotation Speed: 1460 r/min.
- Machine Length: 3300 mm
- Machine Width: 1680 mm
- Machine Height: 2540 mm
- Machine Weight: 8600 kg
- Service Provider: Dervoth Services (Schmalenbrook 14, 24647 Wasbek)
- Inspection Standard: Visual and functional testing according to DIN EN 12622 (Annual UVV inspection)
- Last Inspection Date: 12.08.2025
- Next Inspection Due Date: 08/2026
- Measurement Values: Overrun path: 2.8 mm; Overrun time: 122 msec
- Measured Safety Distance: >248 mm (Required: 248 mm)
- Operational Status / Maintenance Findings:
* Overall machine condition is "i.O." (In Order / Passed).
* Machine does not have a Two-Hand Safety Control (ZHS). Operates via foot switch.
* Light barrier (BWS) is present and functional.
* Hydraulic hoses are older than 6 years, but in very good condition.
* Overrun time (NLZ) is noticeably high, but the customer currently works with the selector switch set to "Setup" mode, making rapid/high-speed advance impossible. The selector switch is locked and the key is safely stored.
* The operation instruction manual should be physically attached to the machine.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
