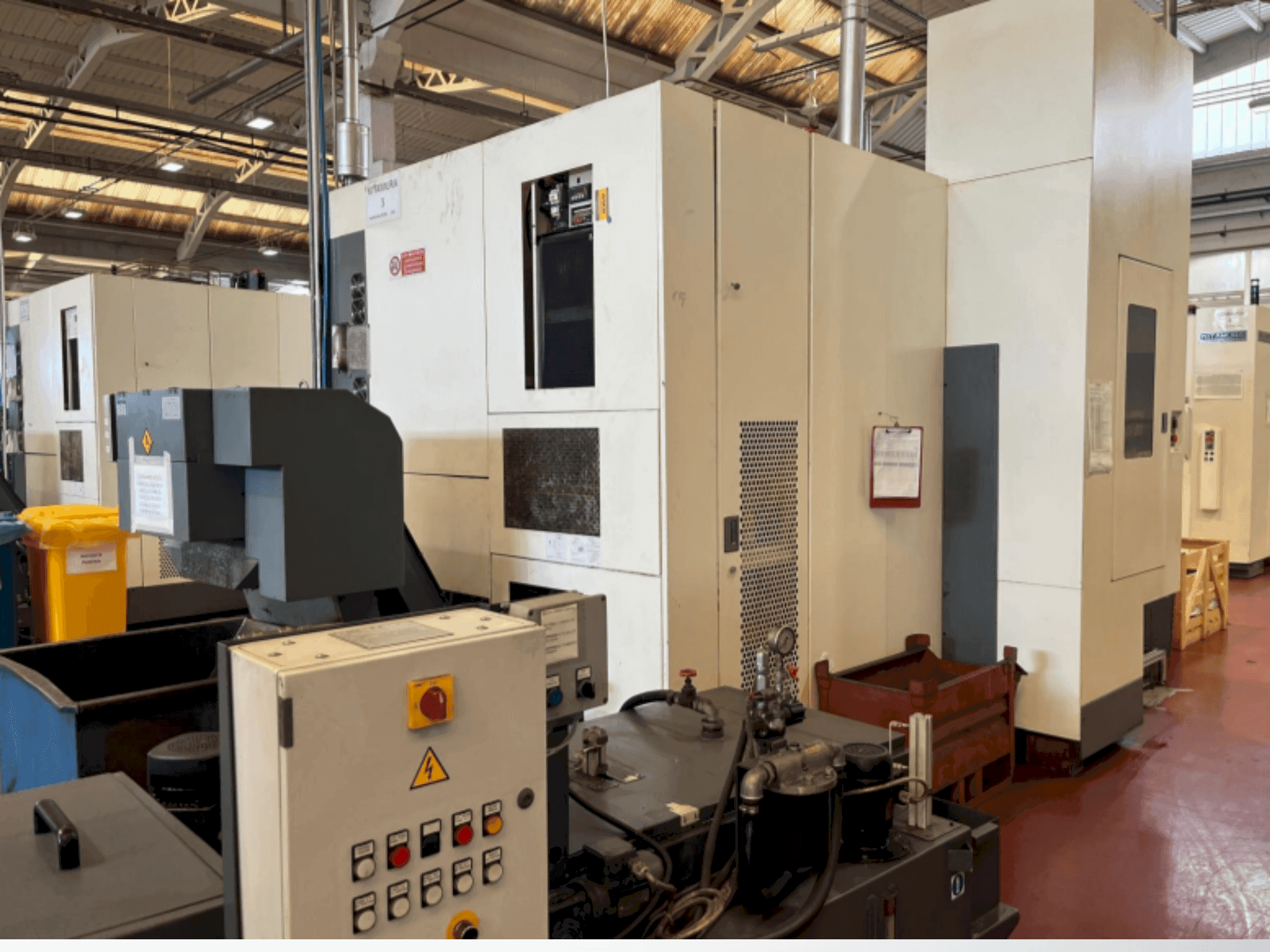

This 4-axis Kitamura Mycenter-HX500iTGA was manufactured in 2011. It features a robust 500x500mm table, capable of handling workpieces up to 800x1000mm and 800kg. With X/Y/Z travels of 870mm, 1020mm, and 950mm respectively, and a high-pressure coolant system, it's ideal for demanding machining tasks. The machine includes a 50-tool storage capacity, automatic pallet changer, and is driven by a powerful 26kW spindle motor. Contact us for more information about this machine.
Overview
- brand: Kitamura
- year: 2011
- MODEL: Mycenter-HX500iTGA
- application type: Milling
- Location: Italy
- machine type: Horizontal Machining Centre
- control unit brand: FANUC
Technical Information - Kitamura Mycenter-HX500iTGA
General Data
- Machine weight: 17000 kg
Control Unit
- Brand: FANUC
- Model: Series 16i-MB
Main drive
- Number of spindles: 26kW
- Spindle speed range: 8000 rpm 1/MIN
- Tool taper: NST No. 50
- Number of axis: 4
Movement
- X-AXIS Movement: 870mm
- Y-AXIS Movement: 1020mm
- Z-AXIS Movement: 950mm
Table
- Table load: 800kg
Tools
- Max weight: 25kg
- Max tool diameter: 125 mm
- Max tool length: 400mm
- Type of tool holder: MAS BT50 / CAT50
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Max. Workpiece size (diameter × height): Ø800×1000mm
- - B axis (rotary table): 360000 positions (0. 001° indexing)
- - Tool storage capacity: 50 tools (options for 105, 150, 200, 300 tools)
- - Adjacent pockets full; Ø210×400mm, adjacent pockets empty
- - Tool change time (tool to tool): 1. 5 sec //tool change time (cut to cut): 5. 5 sec
- - Pull stud: jis b 6339 / iso
- - Drive method: gear drive 2+2
- - Power requirement: ac 200v/3-phase, 55kva
- - Air requirement: 410 l/min
- - Coolant through spindle: high pressure 50 bar
- - CNC: FANUC SERIES 16i MB Glass Scales: X/Y/Z axes and B (rotary) axis
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
