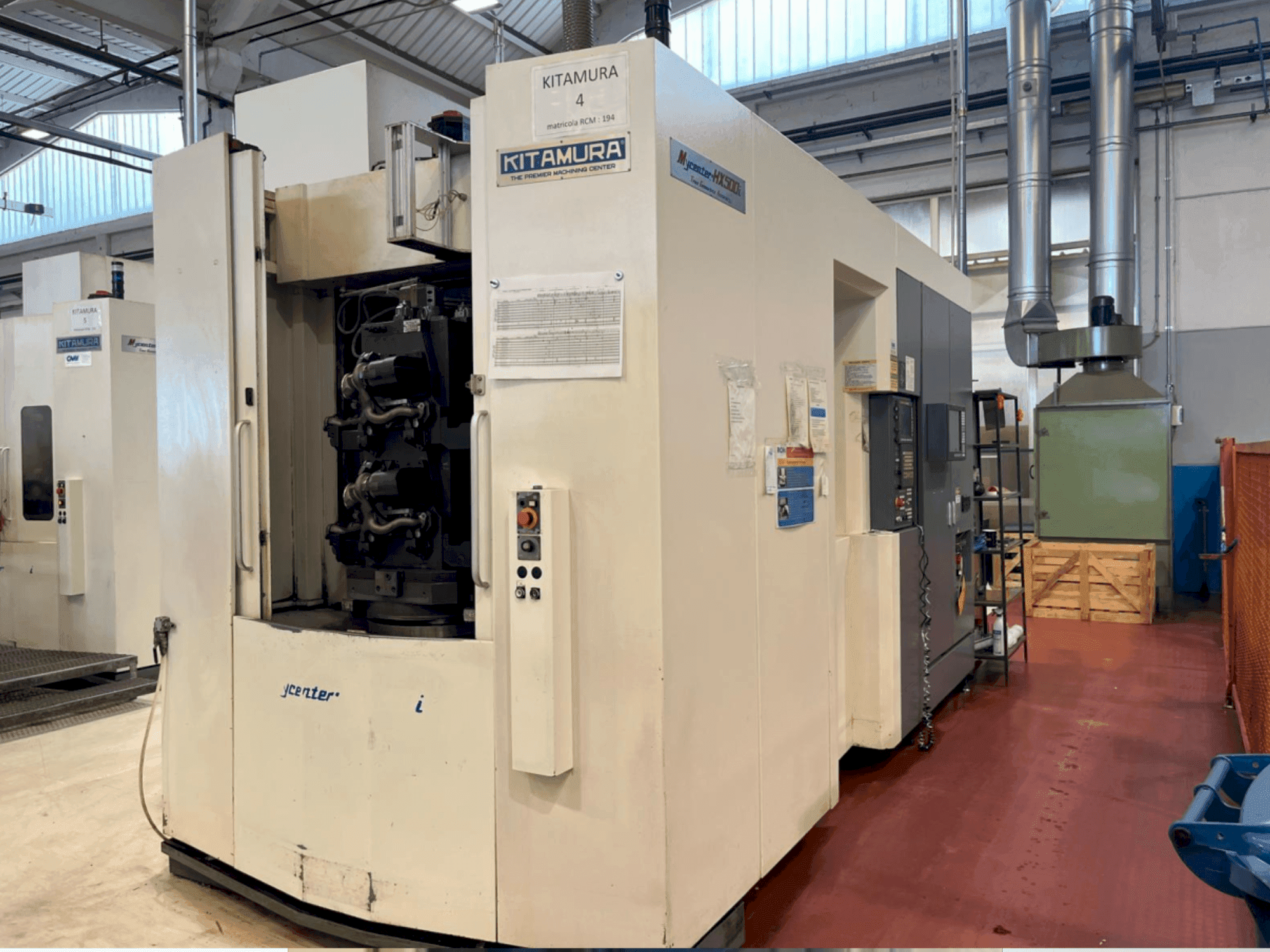

Front view of Kitamura Mycenter-HX500iTGA  machine

Kitamura - Mycenter-HX500iTGAIT-MIL-KIT-2011-00001

£ 154,750
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis Kitamura Mycenter-HX500iTGA was manufactured in 2011. It features a robust 500×500mm table, capable of handling loads up to 800kg, and a high-speed spindle at 12,000 rpm. The machine includes a 200-tool magazine, dual pallet changer, and advanced FANUC Series 30i Model B CNC. Ideal for precision machining with its extensive Y, Z, and X travels. Contact us for more information about this machine.

Overview

  • brand: Kitamura
  • year: 2011
  • MODEL: Mycenter-HX500iTGA
  • application type: Milling
  • Location: Italy
  • machine type: Horizontal Machining Centre
  • control unit brand: FANUC

Technical Information - Kitamura Mycenter-HX500iTGA

General Data

  • Machine weight: 18000 kg

Control Unit

  • Brand: FANUC
  • Model: Series 30i-MODEL B

Main drive

  • Spindle speed range: 12000 rpm 1/MIN
  • Spindle motor power: 26 kW (continuous) / 30 kW (30 min)
  • Tool taper: NST No. 50
  • Number of axis: 4

Movement

  • X-AXIS Rapid traverse: 60 m/min
  • Y-AXIS Rapid traverse: 60 m/min
  • Z-AXIS Rapid traverse: 60 m/min

Table

  • Table load: 800 kg

Tools

  • Max weight: 30 kg
  • Max tool diameter: 125 mm
  • Max tool length: 500 mm

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Chip Conveyor: Included
    • - 50 Bar High Pressure Coolant Through Spindle
    • - Glass Scales on X, Y, Z Axes
    • - Glass Scale on B Axis (Rotary Table)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Cutting feed rate (all axes): 60 m/min
        • - B rotary table feed rate: 45000 deg/min
        • - Distance from table surface to spindle center: 75–795 mm
        • - Distance from table center to spindle nose: 90–1110 mm
        • - Table work area (w×l): 500 × 500 mm
        • - B axis (rotary table): 360000 positions, 0. 001° indexing
        • - Power requirement: ac 200/220v, 3-phase, 55kva
        • - Hydraulic unit: 4. 3 mpa
        • - Coolant pump: 410 l/min

      Extra information

      • - Tools Magazine Capacity: 200 Tools Adjacent Pockets Full: 90 mm Tool Change Time (Tool-Tool): 2.1 sec Tool Change Time (Chip-Chip): 4.3 sec Tool Selection: Random (Bi-Directional) ATC Magazine: Chain Type (Pivoting Arm)

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
