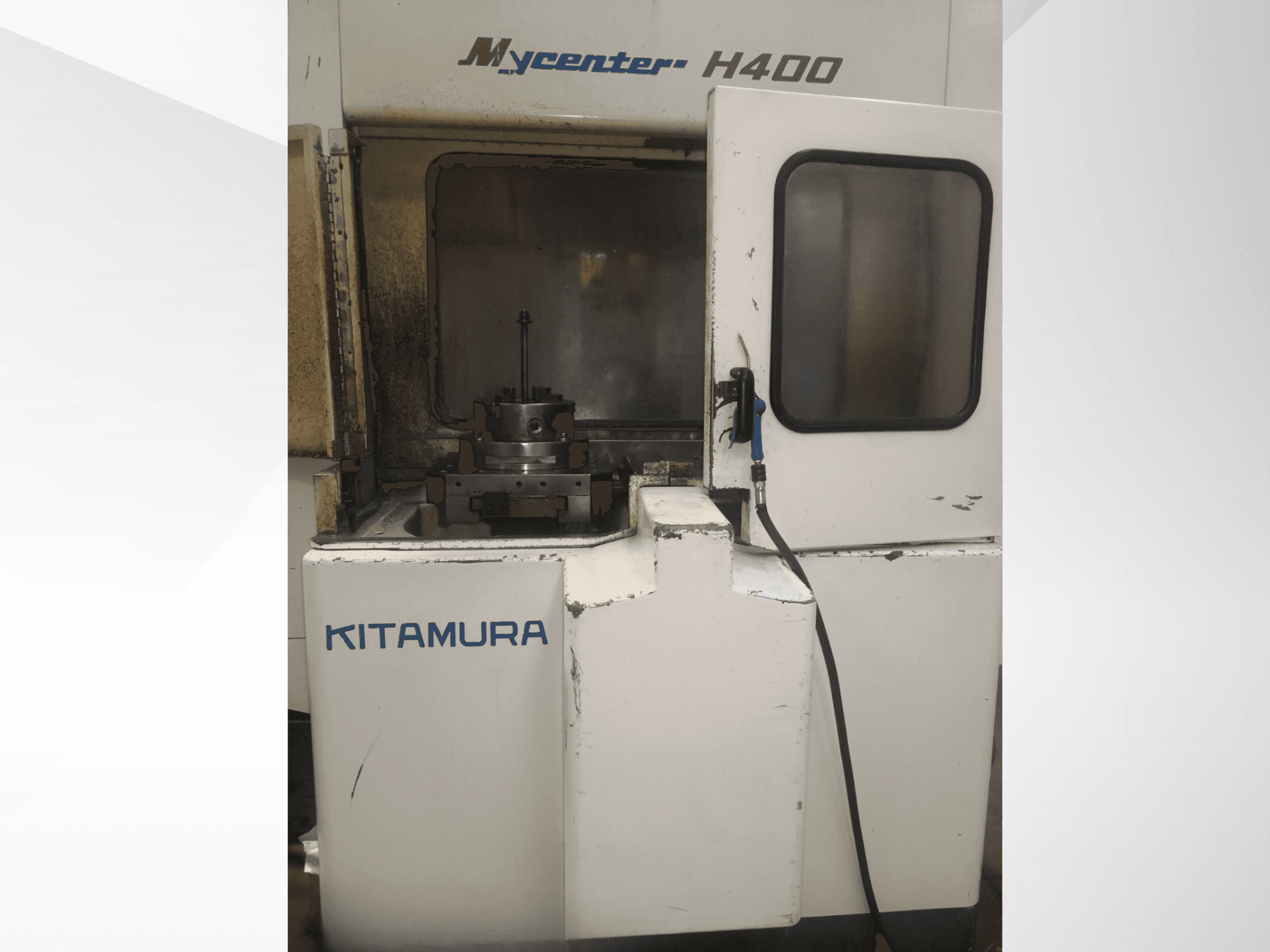

This 3s Kitamura mycenter H400 was manufactured in 2002. It features a full simultaneous 4-axis capability, a pallet changer, and a FANUC 15M control system. The machine has a maximum workpiece diameter of Ø600 mm and a pallet size of 400 × 400 mm. With a spindle speed of 20 – 10,000 rpm and a tool magazine capacity of 100 tools, consider the opportunity to buy this Kitamura mycenter H400 horizontal turning machine. Contact us for further details.
Overview
- brand: Kitamura
- year: 2002
- MODEL: mycenter H400
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
Technical Information - Kitamura mycenter H400
Dimensions
- Machine Height: 2424 mm
- Machine Weight: 10800 kg
Movement
- Number of Axes: 4
- X-axis Travel: 510 mm
- Y-axis Travel: 510 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 10 kg
- Spindle Power: 15 kW
- Spindle Speed: 10000 RPM
Additional Information
Table/Pallet:
Pallet size: 400 × 400 mm (15.7" × 15.7")
Pallet indexing: 1°
Max workpiece diameter: Ø600 mm (23.6")
Max workpiece height: 510 mm (20")
Max load on pallet: 400 kg
Travels:
B: 360° (continuous)
Spindle:
Taper: NST No.40
Max torque: 191.7 Nm
Feed rates:
Rapid traverse (X/Y/Z): 24 m/min
Cutting feed: 0 – 10,000 mm/min
ATC (Automatic Tool Changer):
Magazine capacity: 100 tools
Tool selection: Random
Max tool diameter: Ø95 mm (adjacent tools) / Ø150 mm (empty adjacent)
Max tool length: 350 mm
Accuracy:
Positioning: ±0.005 mm
Repeatability: ±0.002 mm
Machine dimensions:
Floor space (approx.): 3,495 × 4,044 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
