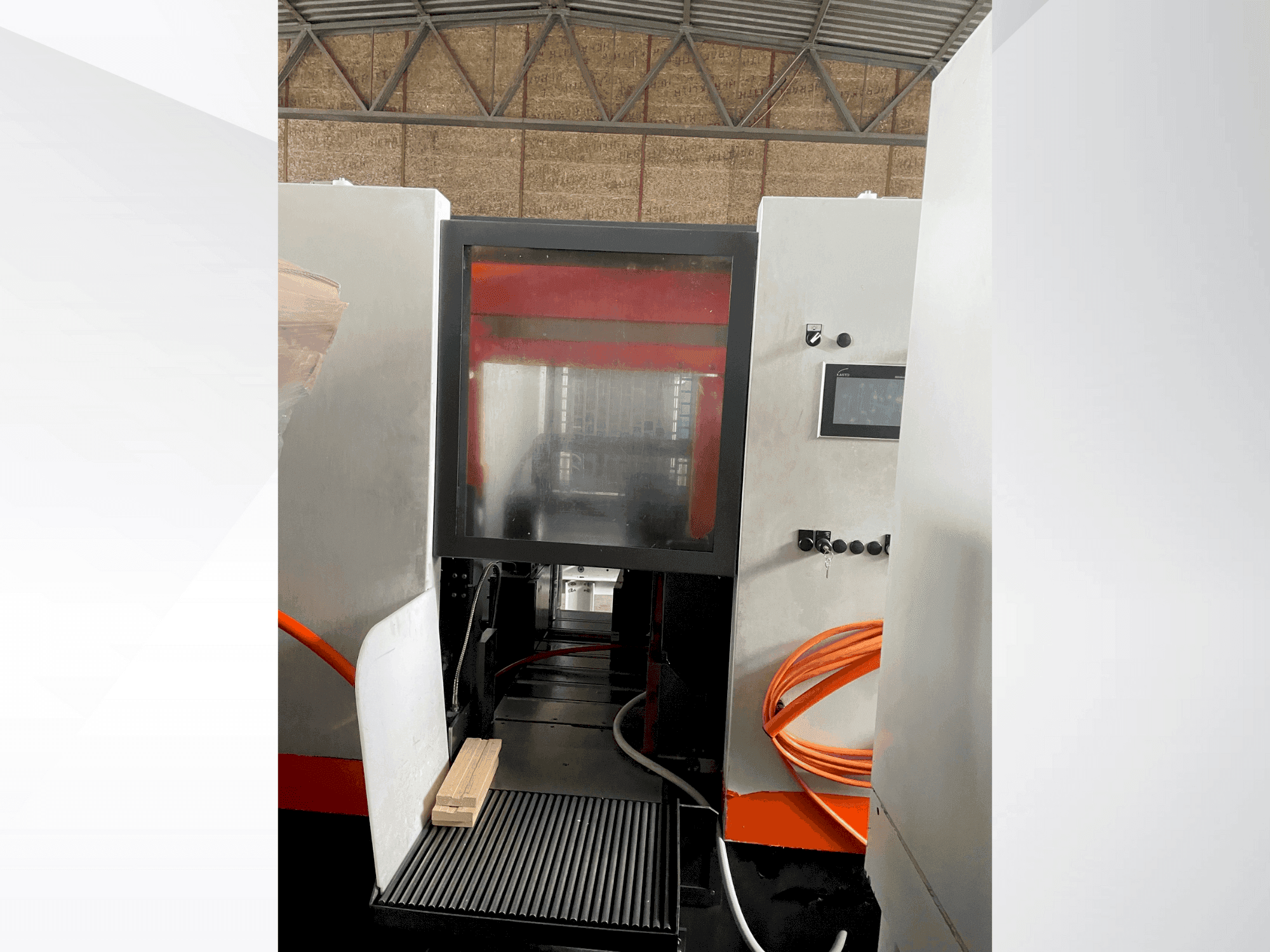

This KASTO WIN A4.6 sawing machine was manufactured in 2019. With a cutting range of 460 mm, it's suitable for various material sizes, offering flexible operation. The machine has a hydraulic material clamping system and a saw motor with variable cutting speed ranging from 12 to 150 m/min. Its dimensions are 1650 mm in length, 2900 mm in width, and 2030 mm in height, with a weight of 3450 kg. Consider purchasing this KASTOWIN A4.6 for enhanced sawing capabilities. Contact us for further details regarding this sawing machine.
Overview
- brand: KASTO
- year: 2019
- MODEL: WIN A4.6
- production hours: 4900
- application type: Sawing
- Location: Austria
- machine type: Metal Band Saw
- availability: Immediately
Technical Information - KASTO WIN A4.6
General Data
- Measurements width: 2900 MM
- Measurements depth: 1650 MM
- Measurements height: 2030 MM
- Machine weight: 3450 KG
Main drive
- Main motor power: 4 kw
Additional Information
- Technical Machine Benefits:
- - Band length & width: 6096 x 54 mm.
- - Cutting range: 460 mm.
- - Cutting area: 460 x 460 mm.
- - Clamping range: 0 - 460 mm.
- - Smallest cut-off length: 10 mm.
- - Smallest dimension to be sawn: 10 x 10 mm.
- - Shortest remaining piece length in automatic mode: 35 mm.
- - Cutting feed: electrically adjustable via ball screw.
- - Material clamping: hydraulic.
- - Saw blade cleaning: self-adjusting chip clearing brush, driven by electric motor.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
