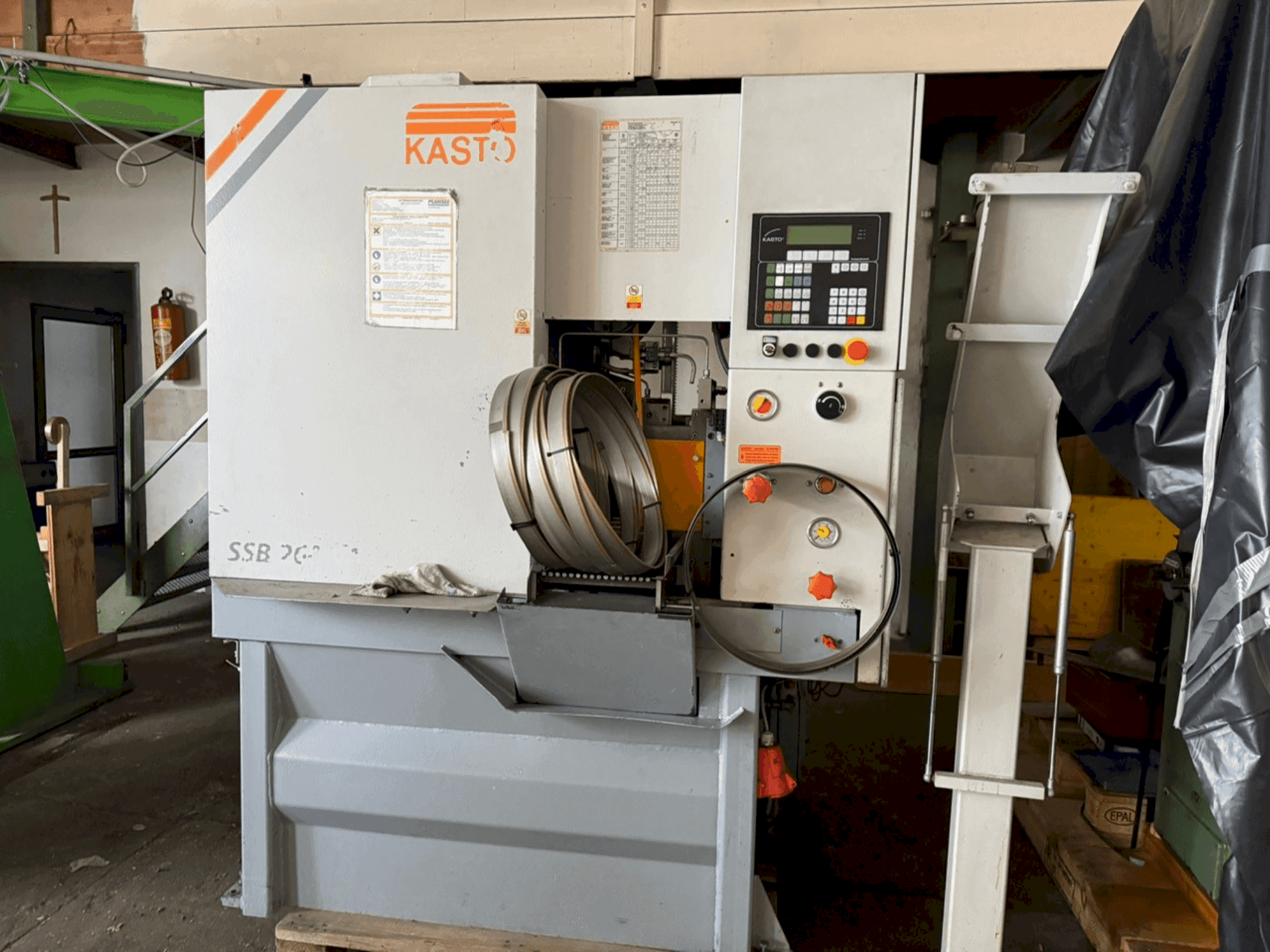

KASTO - SSB 260 VA-CC-CNCDE-SAW-KAS-1998-00001

Additional Equipment

• - Accessories: 18 saw bands (see photos)

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Dimensions of the entire system: length 2160 mm /width 2080 mm/ height 2030 mm / total weight approx. 2 200 kg
  • - Total drive power approx. 6. 5 kw/ saw motor approx. 4. 0 kw/ cutting range round 260 mm /cutting area square 260 x 260 mm /smallest diameter to be sawn 10 mm /smallest cut-off length 5 mm
  • - Minimum offcut length single cut 10 mm/ minimum offcut length in automatic mode 110 mm/ automatic material feed single max. 600 mm multiple material feed (up to 9x) 400 mm /belt speed: mm infinitely variable 15 - 125 m/min /cutting feed: infinitely variable /material feed: hydraulic
  • - Automatic feed: with horizontal clamping /material clamping: hydraulic, infinitely variable /clamping force: horizontal vice (sp l) 150 - 800 dan /feed vice (sp ii) 150 - 800 dan
  • - Saw blade dimensions 4115 x 41 x 1. 3 mm /saw blade guide: carbide, replaceable /saw blade tensioning: hydraulic saw blade cleaning: hydraulic with easily replaceable wire brush. Driven via flex shaft in the same ratio as the main drive driven.
  • - Supply via coolant nozzle/ volume 100 1/ pump capacity 50 l/min.

Extra information

• - Machine still under power
