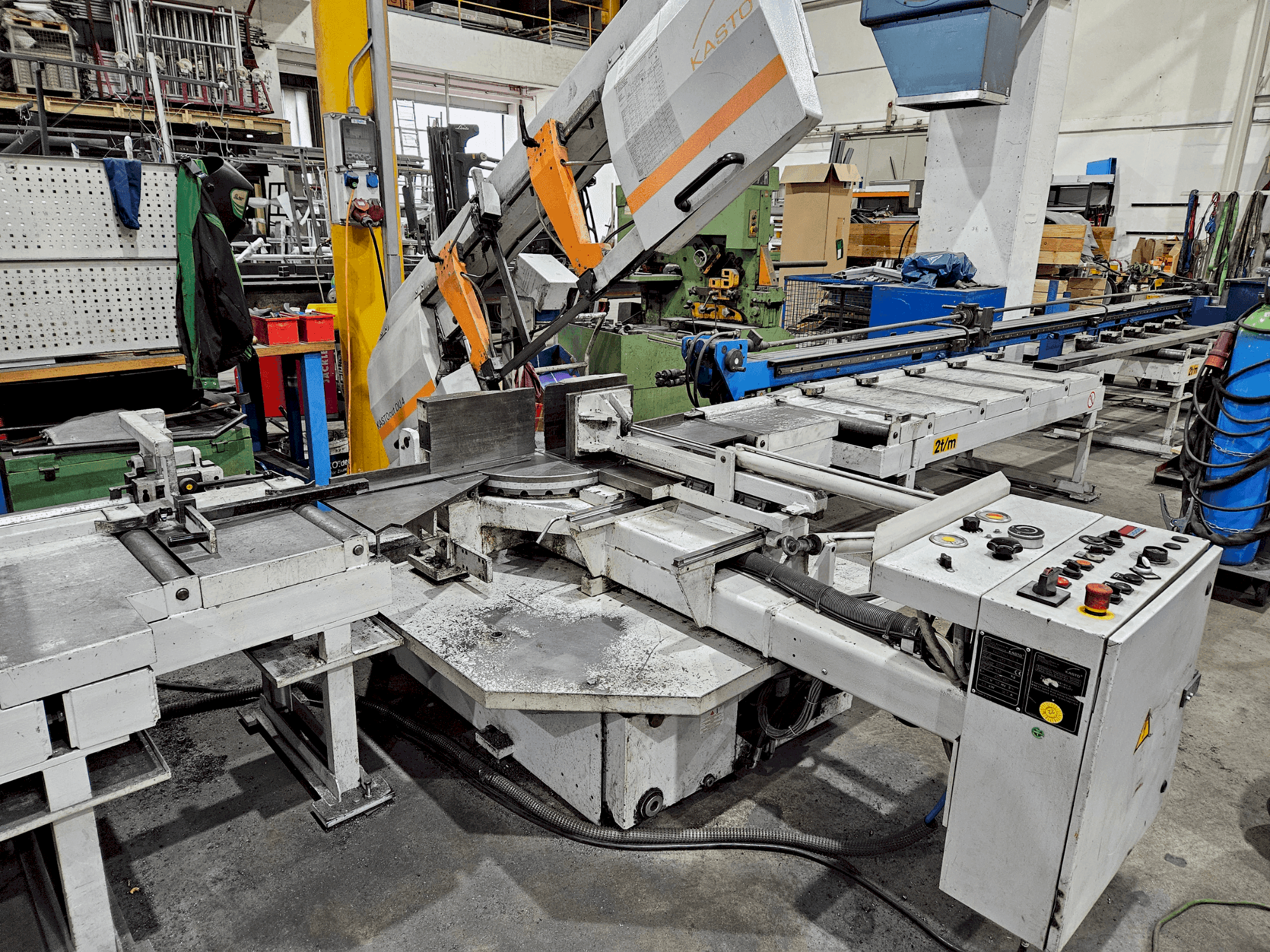

Front view of KASTO cut DU 4  machine

KASTO - cut DU 4DE-SAW-KAS-2009-00002

£ 12,600
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Metal Band Saw was manufactured in 2009. It features a robust design with dimensions ranging up to 2460mm in length and 2185mm in height, and a total weight of approximately 1300 kg. The saw motor is powered by 3.0 kW, supporting a cutting speed from 20 to 110 m/min. It includes hydraulic material clamping and a coolant system with a 65-liter capacity. Ideal for handling material weights up to 400 kg/m. For more information about this Metal Band Saw, please reach out to us.

Overview

  • brand: KASTO
  • year: 2009
  • MODEL: cut DU 4
  • application type: Sawing
  • Location: Germany
  • machine type: Metal Band Saw
  • availability: Immediately

Technical Information - KASTO cut DU 4

General Data

  • Measurements width: 2890 MM
  • Measurements depth: 2460 MM
  • Measurements height: 2185 MM
  • Machine weight: 1300 KG

Main drive

  • Main motor power: Total drive 5.0 kW, Saw motor 3.0 kW

    Additional Equipment

    • - Hydraulic material clamping
    • - Coolant system with 2 coolant nozzles
    • - Saw blade cleaning with easily replaceable plastic brush

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Mitre adjustment - 60°/ + 60°
        • - Cutting speed: infinitely variable from 20 to 110 m/min
        • - Cutting feed: infinitely variable
        • - Saw blade guide: carbide, replaceable
        • - Saw blade tensioning: hydraulic
        • - Cutting ranges (standard) in mm approx:mitre angle 0° (90°) ± 45° ± 60° round: Ø 400 mm, 320 mm, 250 mm square: 320 x 320 mm, 320 mm, 220 x 220 mm flat wxh: 520 x 320 mm, 320 x 320 mm, 220 x 320 mm
        • - Minimum diameter to be sawn: 10 mm
        • - Minimum length to be sawn: 10 mm
        • - Shortest remaining piece length: 45 mm
        • - Maximum material weight: 400 kg/m
      • Qualitative Machine Benefits:
        • - Coolant filling quantity: approx. 65 litres
        • - Coolant pump capacity: approx. 25 l/min

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
