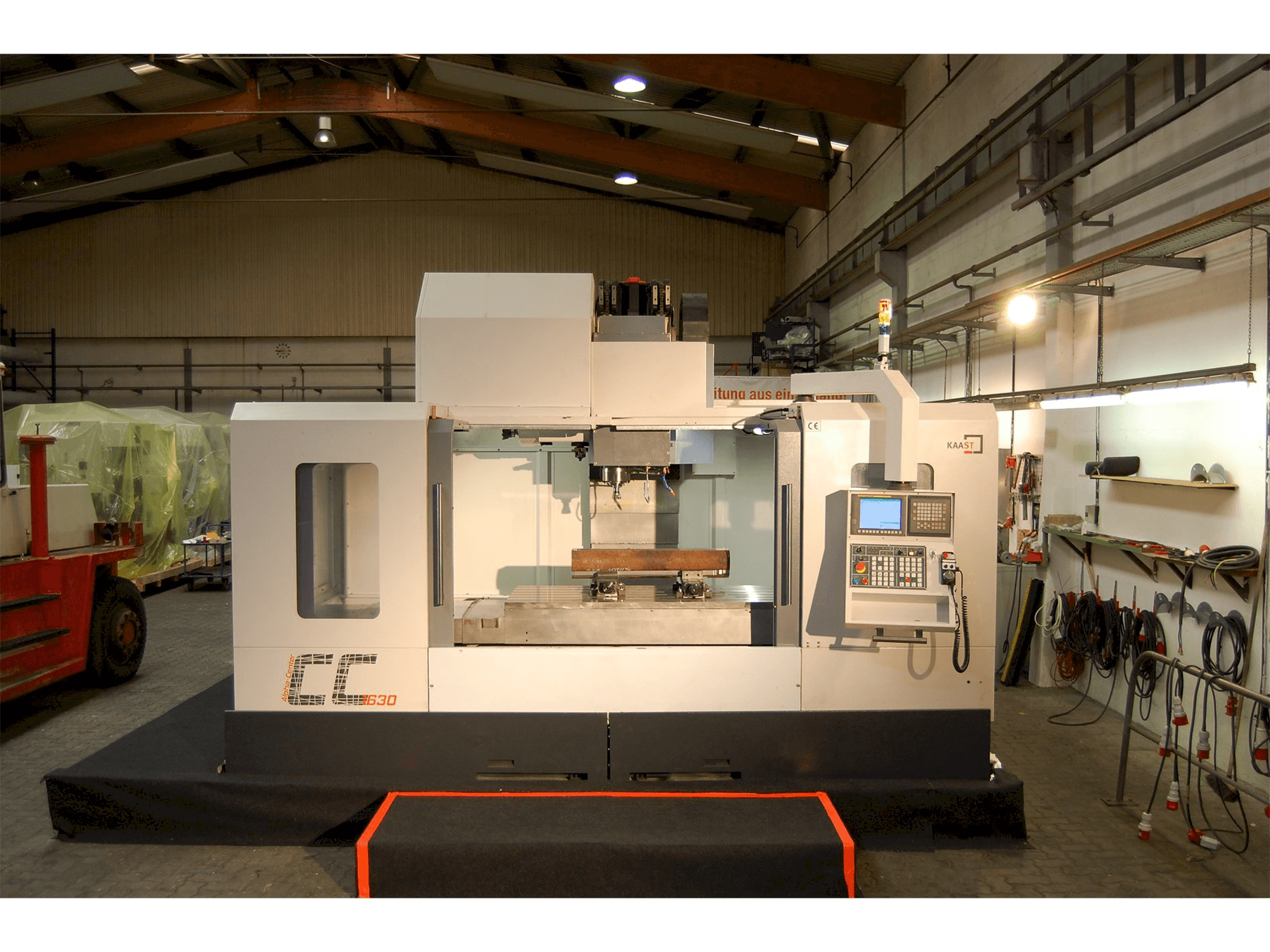

Kaast CC1630 Vertical Machining Center

Show in original language

This Kaast CC1630 Vertical Machining Center from 2015 was made in Germany and has 4500 production hours, of which 1000 are spindle hours. This 3 axis with hydraulic clamping to build up machine is operated through a Fanuc Oi MD control unit. This machine counts with a spindle speed up to 9000 rpm and spindle motor power of 18.5 kW.

Overview

brand: Kaast
year: 2015
MODEL: CC1630
production hours: 4500
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Kaast CC1630

Control Unit

Control Brand: FANUC
Control Model: Oi MD

Dimensions

Machine Depth: 3580 mm
Machine Weight: 12600 kg
Table Length: 1750 mm
Table Load: 2300 kg
Table Width: 800 mm

Movement

Number of Axes: 3
X-axis Travel: 1630 mm
Y-axis Travel: 850 mm
Z-axis Travel: 815 mm

Technical Specification

Max. Tool Weight: 7 kg
Spindle Power: 18.5 kW
Spindle Speed: 9000 RPM
Taper Size: ISO 40

Additional Information

Additional equipment

Tool cone DIN 69871 ISO 40
Tool magazine for 28 tools/ arm changer
Full protection cabin with "Top Close
Control cabinet temperature control
Halogen work area light
Coolant outlet around the spindle
Portable electr. handwheel
Hinged belt chip conveyor
Oil separator, Tempered main motor flange plate
4+5 axis included

Machine Benefits

Qualitative Machine Benefits

Z-axis as block guide
Ktr couplings
Thk linear guides x and y, z flat guides
Set-up elements
Operating tool
Operating instructions

Technical Machine Benefits

Distance spindle-table 100-915 mm
Distance spindle center-z-axis cover 860 mm
Positioning accuracy ± 0. 005 mm
Repeat accuracy ± 0. 003 mm
Max. Tool tool without adjacent tool 130 mm
Tool change time 2. 2 sec
Air pressure 7 kg/cm²

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
