➤ Used JYOTI VMC 850 - Vertical Machining Center

Show in original language

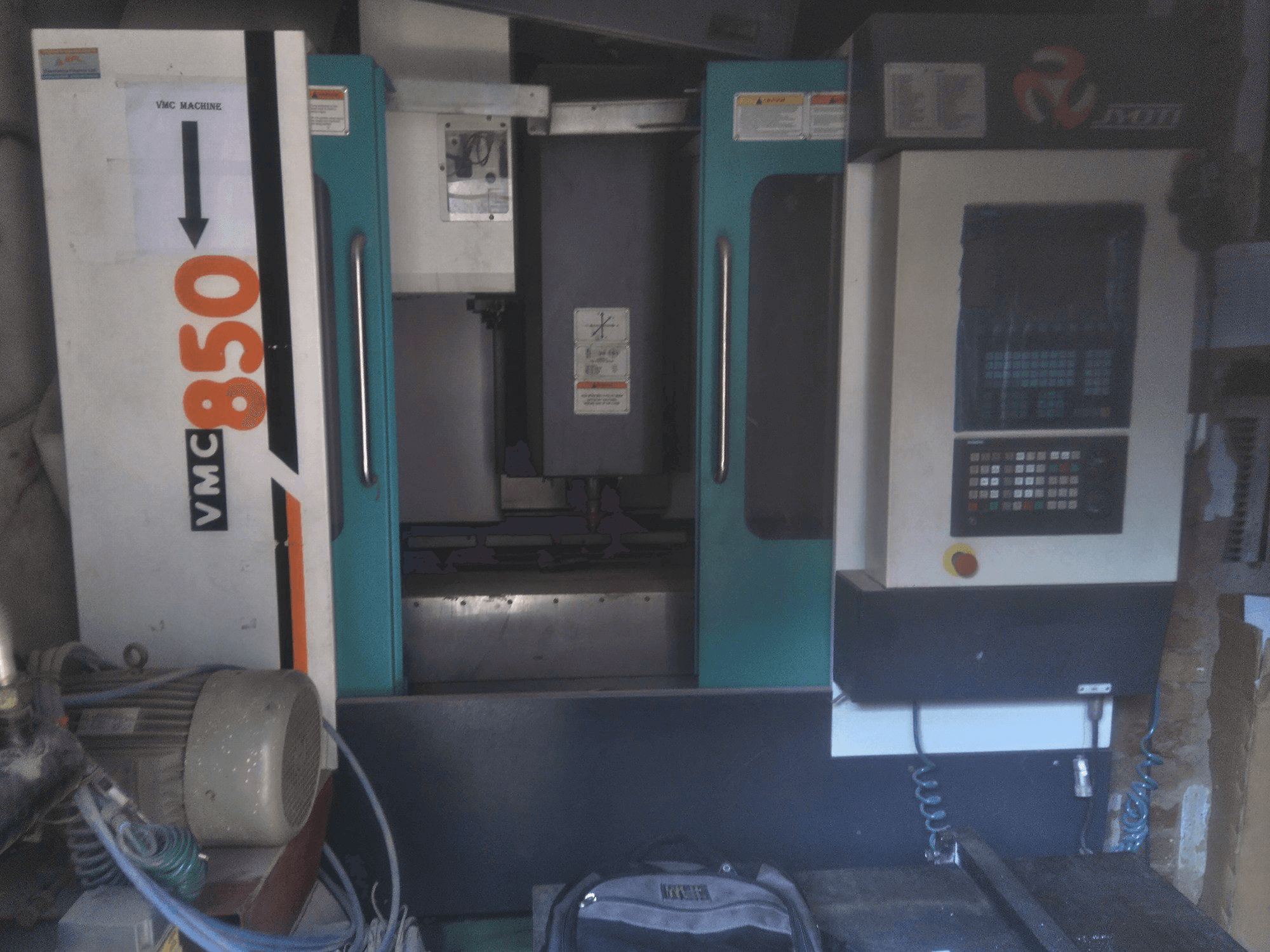

This JYOTI VMC 850 Vertical Machining Center was manufactured in the year 2013 in India. This nearly new machine has a production record of only 10 hours. Equipped with a Siemens Sinumerik 828D control unit, this machine presents perfectly good conditions due to its little working hours.

Overview

brand: JYOTI
year: 2013
MODEL: VMC 850
production hours: 10
application type: Milling
Location: India
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - JYOTI VMC 850

General Data

Measurements width: 2100 mm
Measurements depth: 2500 mm
Measurements height: 2800 mm
Machine weight: 5700 kg

Control Unit

Brand: SIEMENS
Model: Sinumerik 828D
CNC main language: English
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/min

Movement

X-AXIS Movement: 820 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 1000 mm
Outer width: 530 mm

Tools

Slots in storage: 20
Max weight: 7 kg
Max tool diameter: 80 mm
Max tool length: 250 mm

Media

Main electronic connection: 415 V / 50Hz
Power consumption: 80 kVA

Additional Equipment

- Tools
- 10 HP Compressor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
