Johnford - DMC-1600FR-MIL-JOH-2008-00001

Name: Johnford DMC-1600
Brand: Johnford
SKU: FR-MIL-JOH-2008-00001
Price: 46000 GBP
Availability: InStock

£ 46,000

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Johnford DMC-1600 For Sale | gindumac.com

Show in original language

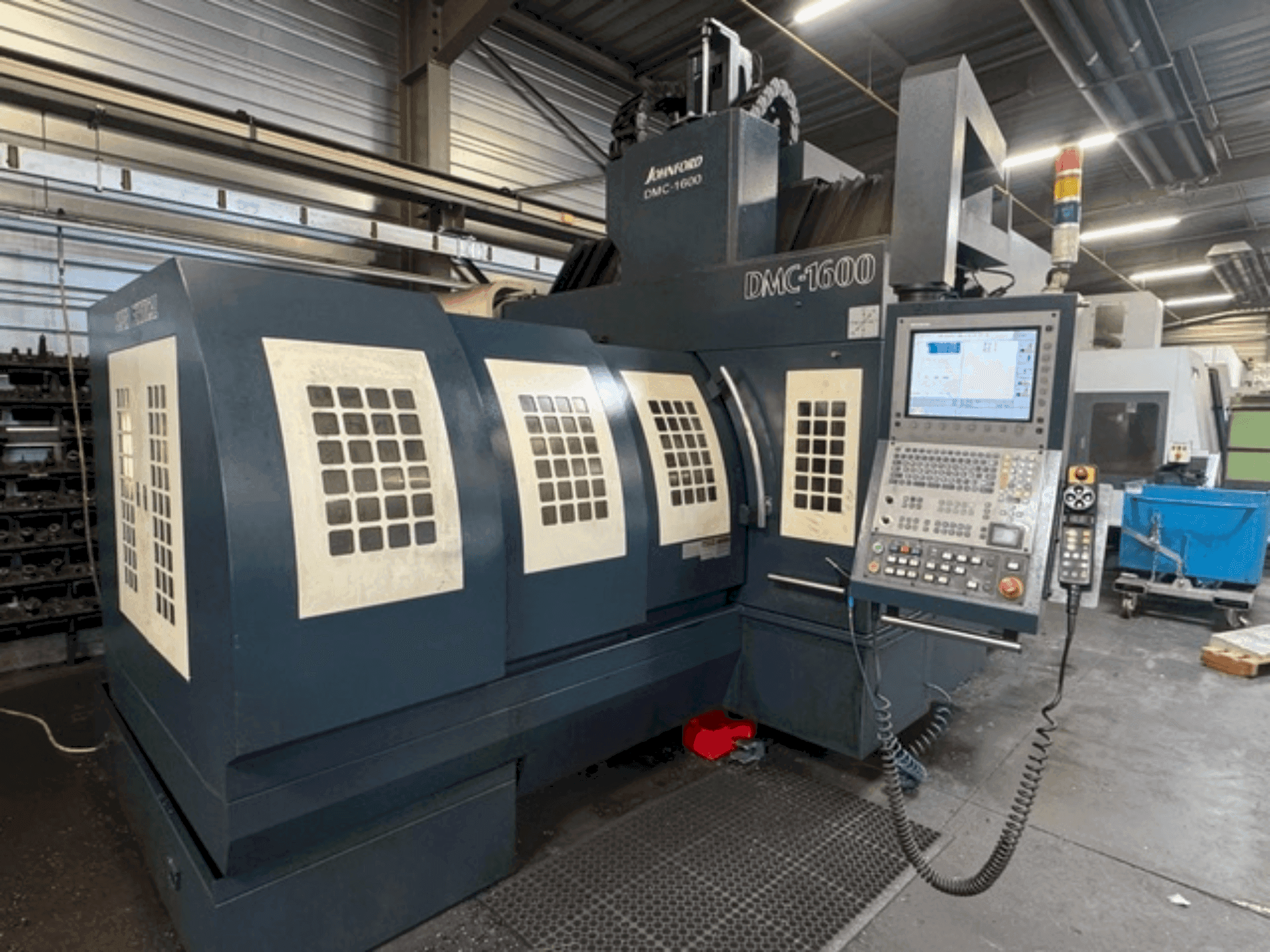

This 3-axis Johnford DMC-1600 was manufactured in 2008. It features a robust table surface of 1700x1100 mm, capable of handling loads up to 6000 kg. With travels of X1600 mm, Y1100 mm, and Z800 mm, it offers extensive machining capabilities. The spindle operates at 8000 rpm with a BT40 taper, supported by a 24-station tool magazine. Additional features include a chip conveyor, coolant system, and a comprehensive set of tools. Contact us for more information about this machine.

Overview

brand: Johnford
year: 2008
MODEL: DMC-1600
application type: Milling
Location: France
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Johnford DMC-1600

General Data

Measurements width: 3300 mm
Measurements depth: 6465 mm
Measurements height: 3600 mm
Machine weight: 20000 kg

Control Unit

Brand: HEIDENHAIN
Model: iTNC 530

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 15/20 kW
Tool taper: BT40
Number of axis: 3

Movement

X-AXIS Movement: 1600 mm
Y-AXIS Movement: 1100 mm
Z-AXIS Movement: 800 mm

Table

Table load: 6000 kg

Additional Information

Additional equipment

Electronic Handwheel
USB-RS232 Ports
Air-Conditioned Cabinet
Coolant Through Spindle
3-Color Status Light
Chip Conveyor + Bucket
Full Documentation
Angle Heads
Large Set of Approx. 60 Tool Holders and Cutting Tools

Machine Benefits

Technical Machine Benefits

Spindle/table surface distance: 150-950 mm
Rapid feed speed: 15000/12000 mm/min
Table surface: 1700x1100 mm
Tool magazine: random-arm tool magazine with 24 stations

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
