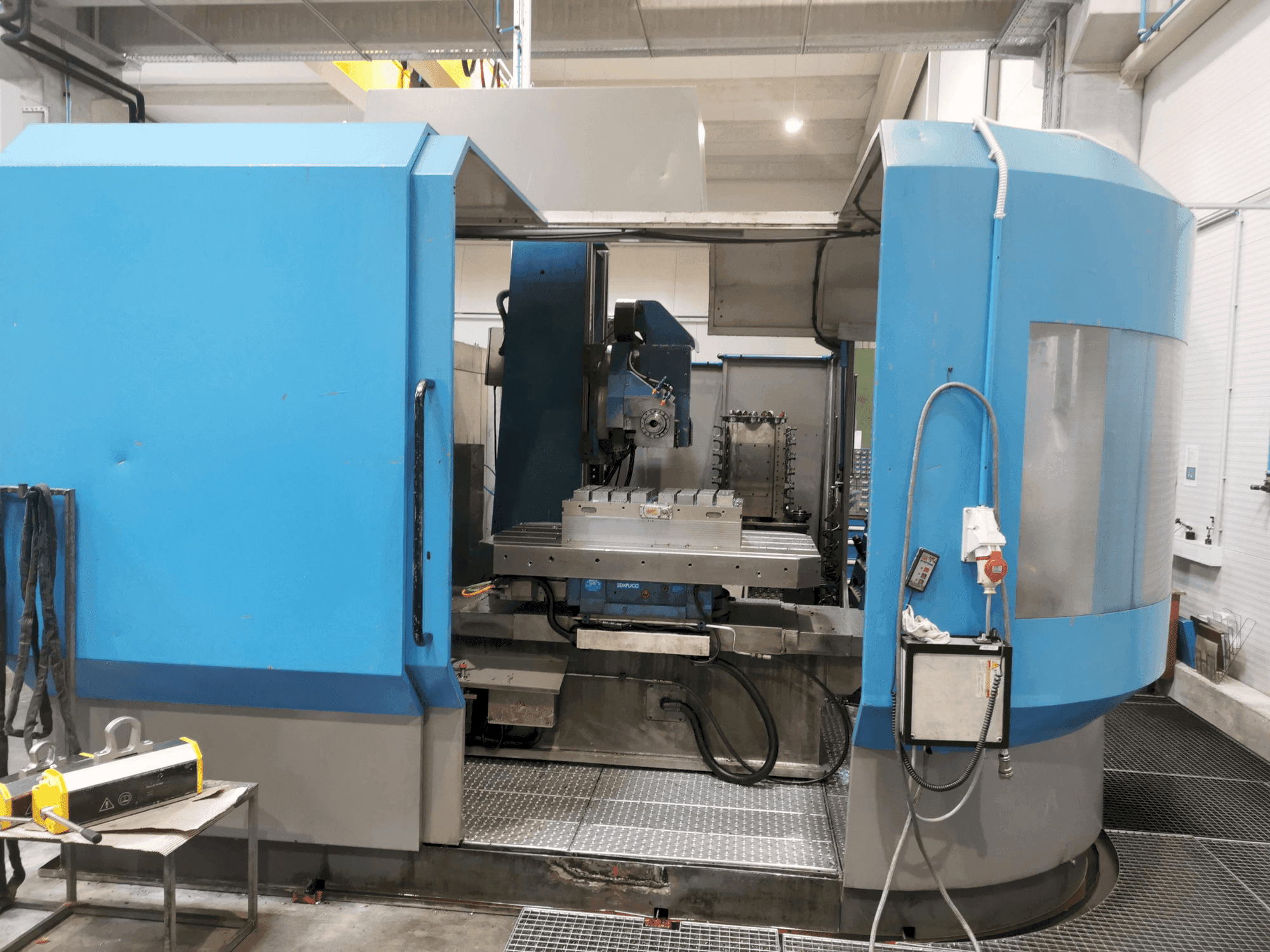

This 4-axis IXION IA 3 TLF drilling machine was manufactured in 2002. It features a deep drilling diameter range of 4 to 32 mm, with a maximum of 40 mm, and a maximum drilling depth of 1,300 mm. The machine is equipped with a high-capacity milling spindle, supporting speeds from 80 to 6000 rpm and a power of 7.5 kW. It also includes a robust SIEMENS Sinumerik 840D controller. For more information about this drilling machine, please reach out to us.
Overview
- brand: IXION
- year: 2002
- MODEL: IA 3 TLF
- application type: Other Machine Tools
- Location: Slovenia
- machine type: Drilling Machine (Metal)
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - IXION IA 3 TLF
Control Unit
- Brand: SIEMENS
- Model: Sinumerik 840D
Main drive
- Number of spindles: 1
- Spindle speed range: 6000 rpm 1/MIN
- Spindle motor power: 7.5 kW (13 kW optional)
- Tool taper: HSK 63, DIN 69871
- Number of axis: 4
Movement
- X-AXIS Movement: 1200/1600 mm
- Y-AXIS Movement: 800/1200 mm
- Z-AXIS Movement: 700 mm
Table
- Outer length: 1000 mm
- Outer width: 1000 mm
- Table load: 7000/10000 kg
Additional Equipment
- - Combined milling coordinate transformation
- - Integrated tool monitoring
- - Digital AC drive
Additional Information
- Technical Machine Benefits:
- - Deep drilling diameter with bta tools: 4 to 32 mm (up to 40 mm max)
- - Maximum drilling depth: 1,300 mm
- - Maximal feed rate in a single pass: 200 cmm
- - Possible re-positioning for drilling: yes
- - Rotary table max load capacity: 360 kg
- - Table rotation: 360°, 25 to 15 rpm
- Qualitative Machine Benefits:
- - Ce compliant machine construction
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
