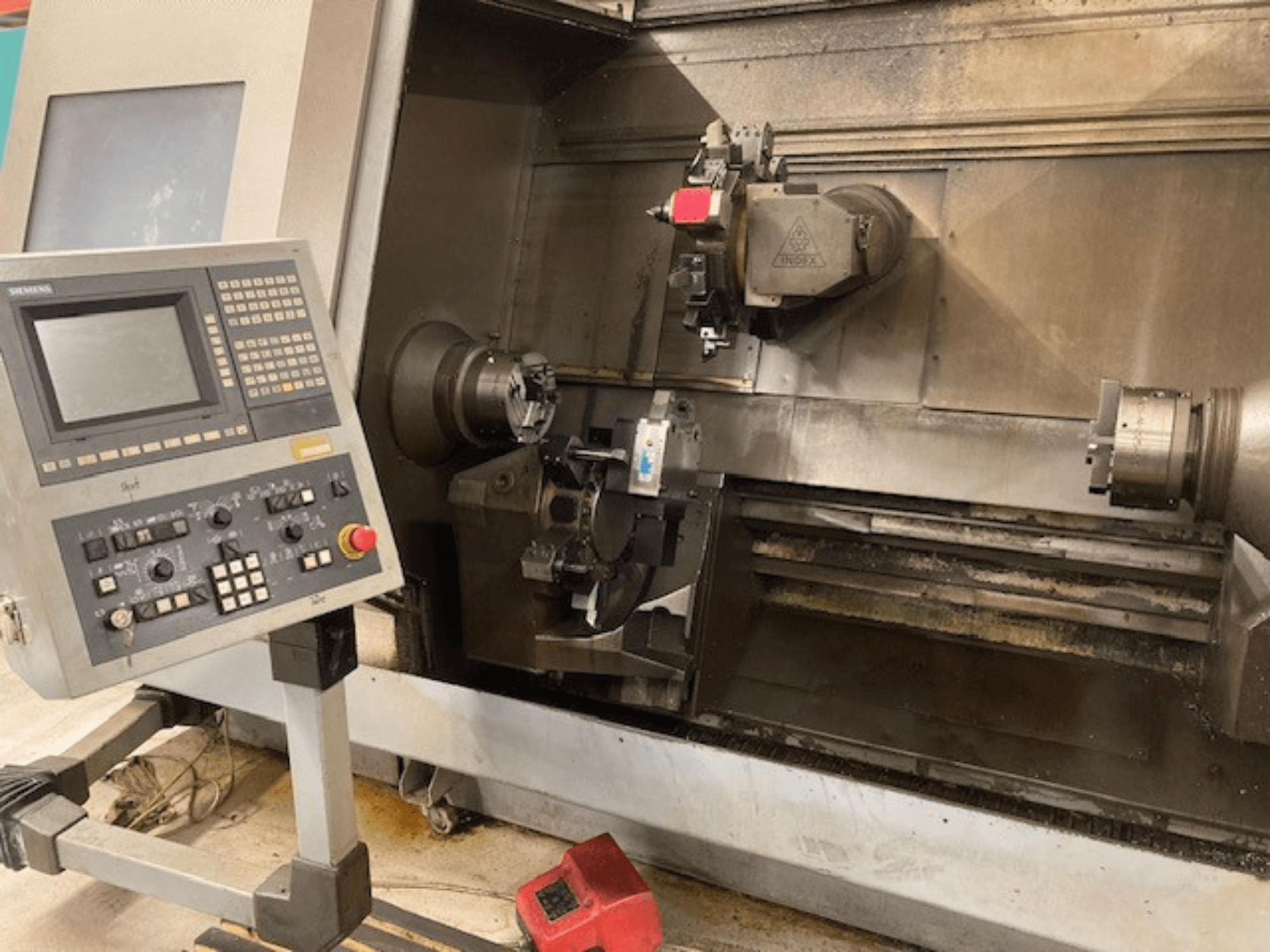

Horizontal turning machine Index G300 L YB with control panel, visible chuck, and work area, front view.
Horizontal turning machine Index G300 L YB with control panel, visible chuck, and work area, front view.

Index - G300 L YB DE-TUR-IND-1999-00003

£ 39,229
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 7-axis Index G300 L YB was manufactured in 1999. It features a maximum turning diameter of 270 mm and a maximum swing diameter of 590 mm. The machine includes a robust tool system with 12 stations and a milling spindle speed of up to 6000 rpm. If you are looking to get high-quality turning capabilities, consider the Index G300 L YB horizontal turning machine we have for sale. Contact us for further details.

Overview

  • brand: Index
  • year: 1999
  • MODEL: G300 L YB
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine

Technical Information - Index G300 L YB

Dimensions

  • Machine Height: 2100 mm
  • Machine Length: 7250 mm
  • Machine Weight: 8330 kg
  • Machine Width: 2150 mm

Movement

  • Number of Axes: 7
  • X-axis Travel: 140 mm
  • Y-axis Travel: 100 mm
  • Z-axis Travel: 1245 mm

Technical Specification

  • Counter Spindle: Yes
  • Driven Tools: No
  • Spindle Power: 9.4 kW
  • Spindle Speed: 6000 RPM
  • Taper Size: VDI 30

Additional Information

  • Power supply: 3 phase / 50 Hz

  • Rated voltage: 400 V

  • Control voltage: 24 V

  • Rated current: 120 A

  • Rated power: 67 kW

  • Electrical cabinet weight: 710 kg

  • Spindle bore: 65 / 90 mm

  • Spindle bearing diameter (front): 110 / 140 mm

  • Spindle nose: ISO 702/1 size 6 / 8

  • Chuck diameter: 200 / 250 / 315 mm

  • Maximum turning diameter: 270 mm

  • Maximum swing diameter: 590 mm

  • Power (100% duty cycle): 19 / 28 / 43 kW

  • Power (40% duty cycle): 28 / 40 / 57 kW

  • Torque (100% duty cycle): 120 / 178 / 275 Nm

  • Torque (40% duty cycle): 178 / 255 / 363 Nm

  • Maximum speed: 5000 / 3500 rpm

  • Counter spindle bore: 65 / 90 mm

  • Counter spindle bearing diameter: 110 / 140 mm

  • Counter spindle nose: ISO 702/1 size 6 / 8

  • Counter spindle chuck diameter: 200 / 250 / 315 mm

  • Counter spindle power (100%): 19 / 28 kW

  • Counter spindle power (40%): 28 / 40 kW

  • Counter spindle torque (100%): 120 / 178 Nm

  • Counter spindle torque (40%): 178 / 255 Nm

  • Counter spindle max speed: 5000 / 3500 rpm

  • Minimum distance between spindles: 20 mm

  • Longitudinal travel: 770 / 1310 mm

  • Rapid traverse: 22.5 m/min

  • Rapid traverse X: 24 m/min

  • Rapid traverse Z: 30 m/min

  • Rapid traverse Y: 24 m/min

  • Tool system: VDI 30

  • Number of tool stations: 12

  • Max boring bar diameter: 50 mm

  • Milling spindle speed: up to 6000 rpm

  • Milling spindle power: 9.4 kW

  • Milling spindle torque: 19 Nm

  • Tailstock stroke: 630 mm

  • Tailstock quill diameter: 125 mm

  • Tailstock force: 7500 N

  • Hydraulic tank: 165 liters

  • Coolant tank: 300 liters

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
