Hyundai Wia L210LA

Photo Gallery

Hyundai Wia - L210LAPT-TUR-HYU-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

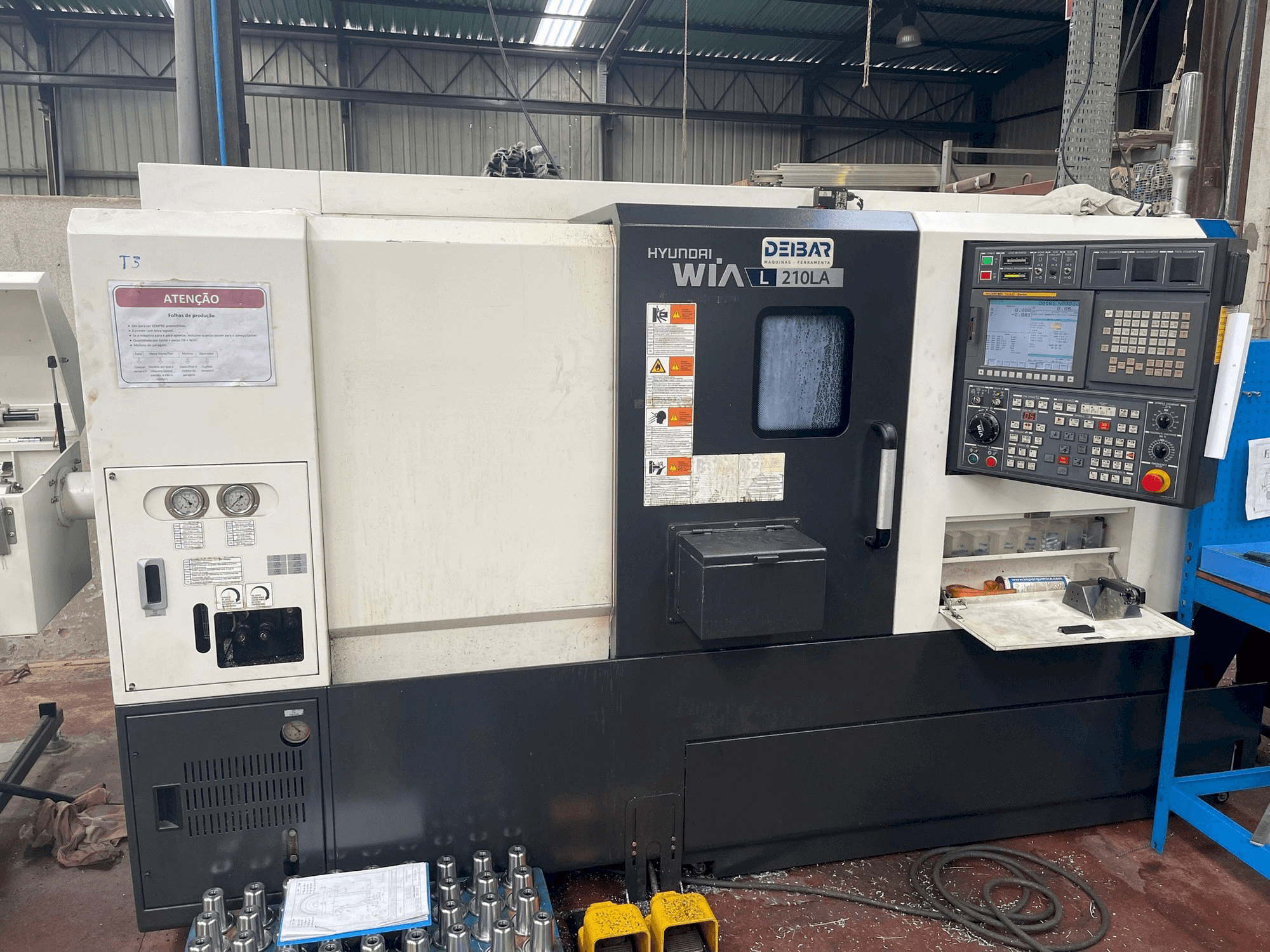

Hyundai Wia L210LA Lathe machine

Show in original language

This Hyundai Wia L210LA Lathe machine was manufactured in Korea in 2016. This machine is operated by a FANUC control unit. It works with a spindle speed up to 4000 rpm and has 11408 working hours of which 2886 are cutting hours. A programmable tailstock MT4, and presetter are included.

Overview

brand: Hyundai Wia
year: 2016
MODEL: L210LA
production hours: 11408
application type: Turning
Location: Portugal
machine type: Horizontal Turning Machine

Technical Information - Hyundai Wia L210LA

Dimensions

Machine Depth: 1650 mm
Machine Height: 1870 mm
Machine Weight: 4200 kg

Movement

Number of Axes: 2
X-axis Travel: 210 mm
Y-axis Travel: 430 mm

Technical Specification

Spindle Speed: 4000 RPM

Additional Information

Additional equipment

Presetter is included

Machine Benefits

Qualitative Machine Benefits

Programmable tailstock mt4
Motor (max/cont. ) kw(hp) 15/11(20/15) [22/18. 5 (29. 5/24. 8)]
Torque (max/cont. ) n. M(lbf. Ft) 286. 4/210(211. 2/154. 9) [252/211. 9(185. 9/156. 3)

Technical Machine Benefits

Swing over the bed 550 (21. 7″) mm(in)
Swing over the carriage 350 (13. 8″) mm(in)
Max. Turning dia. 350 (13. 8″) mm(in)
Max. Turning length 530 (20. 9″ mm(in)
Bar capacity 65 mm
Chuck size 169 (6. 7″) mm(in)
Spindle bore 78 (3″) mm(in)
Spindle type - belt
Spindle nose - a2-6
Tailstock travel 520 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
