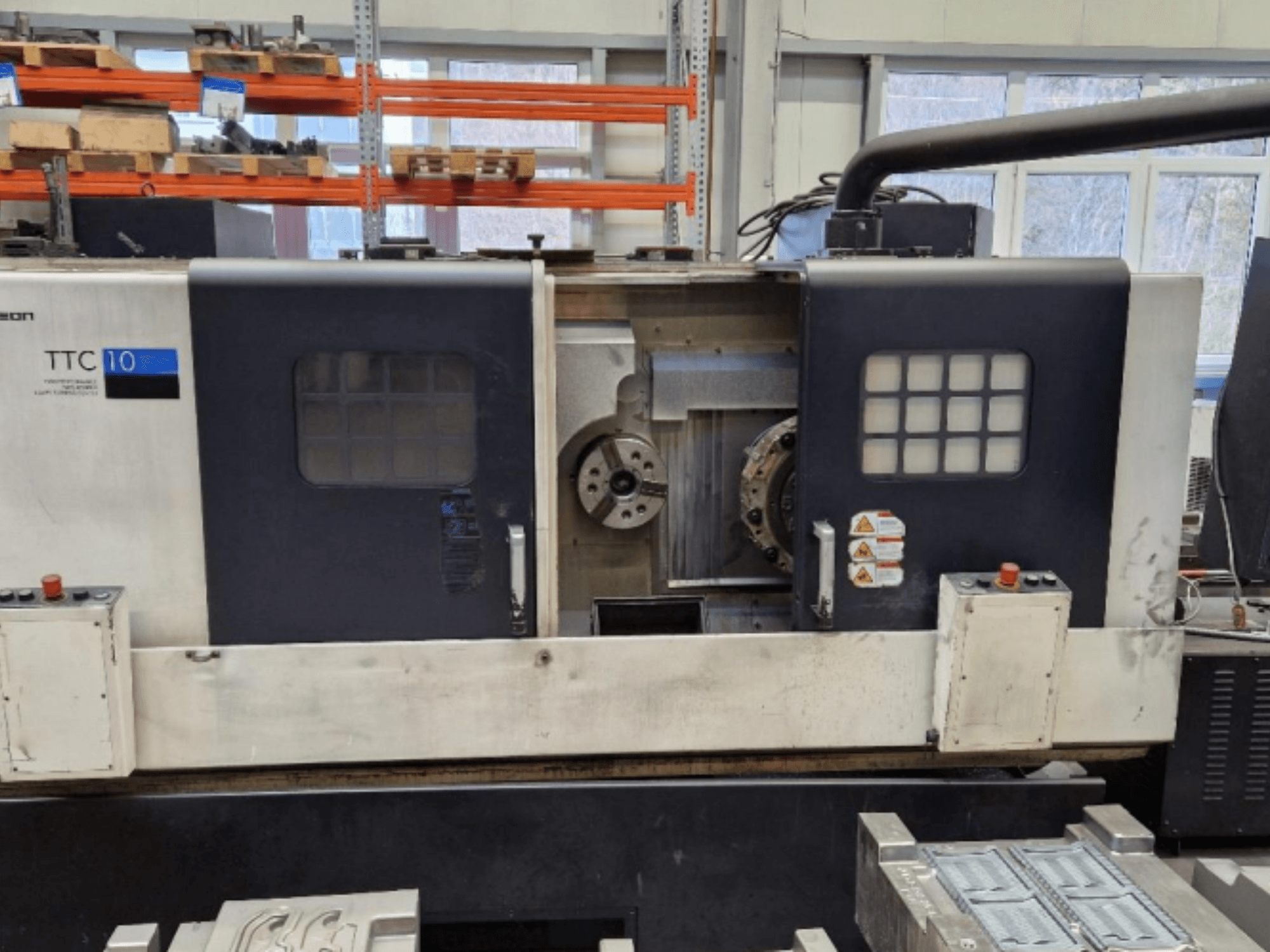

This HWACHEON TTC-10 horizontal turning machine was manufactured in 2015. It features a swing over bed of Ø 500 mm, a maximum machining diameter of Ø 400 mm, and a maximum machining length of 203 mm. Equipped with a Fanuc Oi-TF Plus control, it offers rapid traverse rates of 30 m/min in both X and Z axes. Consider the opportunity to buy this HWACHEON TTC-10 horizontal turning machine. Contact us for more information about this machine.
Overview
- brand: HWACHEON
- year: 2015
- MODEL: TTC-10
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - HWACHEON TTC-10
Control Unit
- Control Brand: FANUC
- Control Model: 0i-TF Plus
Dimensions
- Machine Height: 2046 mm
- Machine Length: 3000 mm
- Machine Weight: 9500 kg
Movement
- Number of Axes: 2
- X-axis Travel: 215 mm
- Z-axis Travel: 230 mm
Technical Specification
- Spindle Power: 18.5 kW
- Spindle Speed: 2000 RPM
Additional Information
Capacity / Performance
Swing over bed: Ø 500 mm
Max. machining diameter: Ø 400 mm
Standard machining diameter: Ø 320 mm
Max. machining length: 203 mm
Chuck size: 10″ + 10″
Spindle / Drive
Spindle type / nose: ASA A2-8
Through spindle bore: Ø 77 mm
Max. bar diameter: Ø 59 mm
Tooling / Turret
Number of tool stations: 12 + 12
Tool holder: □25 × Ø50 mm
Turret indexing time: 0.4 s/station
Axes / Feed
Rapid traverse X/Z: 30 / 30 m/min
Tank / Supply
Lubricant: 12 l
Hydraulics: 50 l + 50 l
Coolant: 380 l
Power consumption: 75 kVA
Additional equipment
2 × 10″ chucks
Approx. 10 × tool holders (various designs)
Documentation / Operating instructions (if available)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
