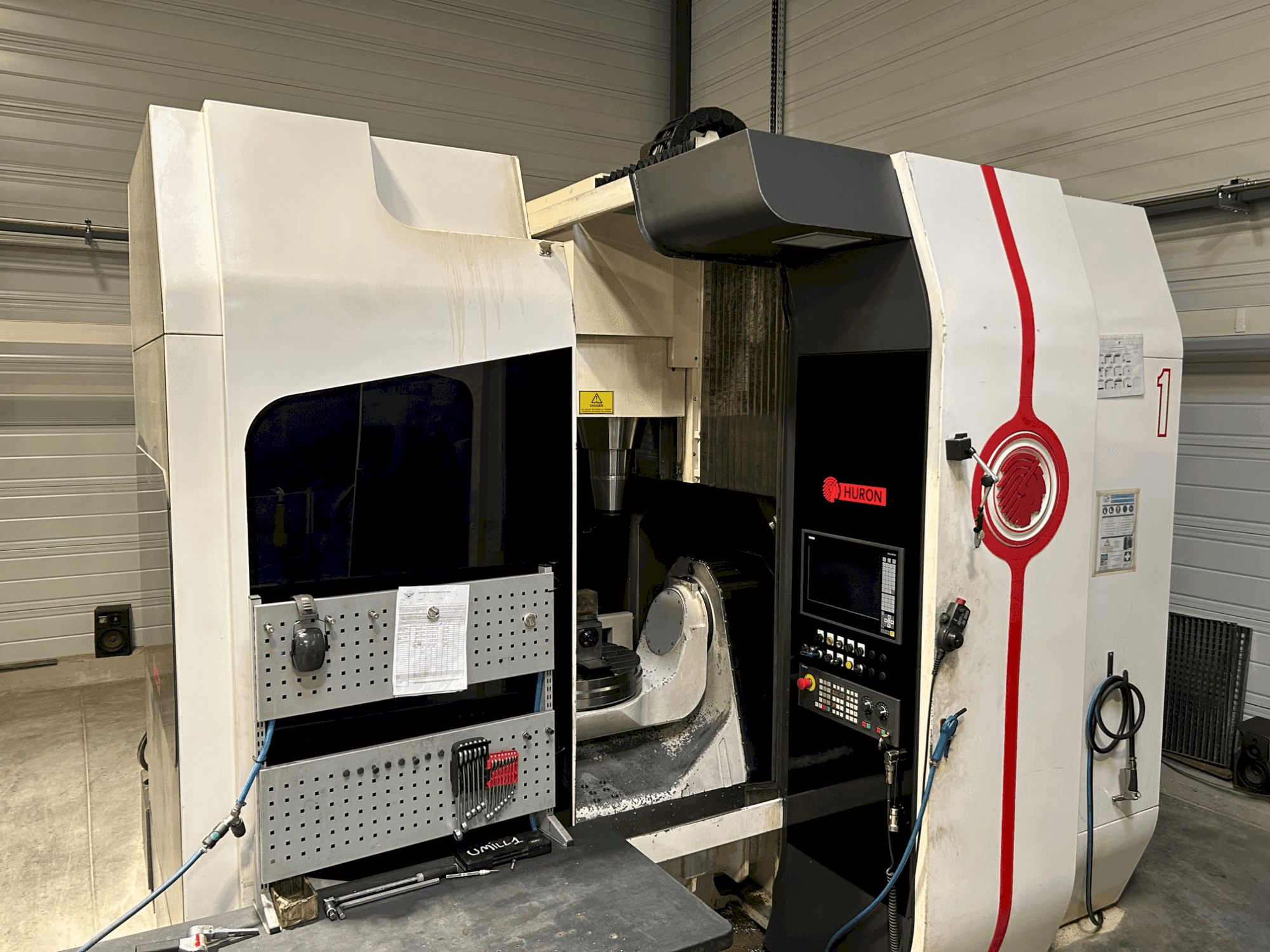

This 5-axis Huron UMILL 6 was manufactured in 2018. It features a Siemens 840D SL CNC, X Y Z travel of 700 x 740 x 550 mm, and a rotation speed of 10,000 rpm. The spindle power is 18 kW with an ISO 40 taper. It includes a 30-tool changer, chip conveyor, and a table diameter of 630 mm. If you are looking to get high-quality milling capabilities, consider the Huron UMILL 6 machine we have for sale. Contact us for more information.
Overview
- brand: Huron
- year: 2018
- MODEL: UMILL 6
- application type: Milling
- Location: France
- machine type: Universal Machining Centre
- control unit brand: SIEMENS
Technical Information - Huron UMILL 6
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D SL
Dimensions
- Machine Depth: 4410 mm
- Machine Height: 3540 mm
- Machine Weight: 12250 kg
Movement
- Number of Axes: 5
- X-axis Travel: 700 mm
- Y-axis Travel: 740 mm
- Z-axis Travel: 550 mm
Technical Specification
- Spindle Speed: 10000 RPM
- Taper Size: ISO 40
Additional Information
A-axis travel: +20° / -110°
C-axis: 360,000 positions
Table diameter: 630 mm
Tool changer: 30 tools
Through-spindle coolant: 20 bar, 25 l/min
Linear scales on X/Y/Z
Additional equipment
Chip conveyor
BLUM probes: TC54-20 (tool) and TC52 (part)
Portable electronic handwheel
Wash-down gun
Air nozzle blow-off
Isolation transformer
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
