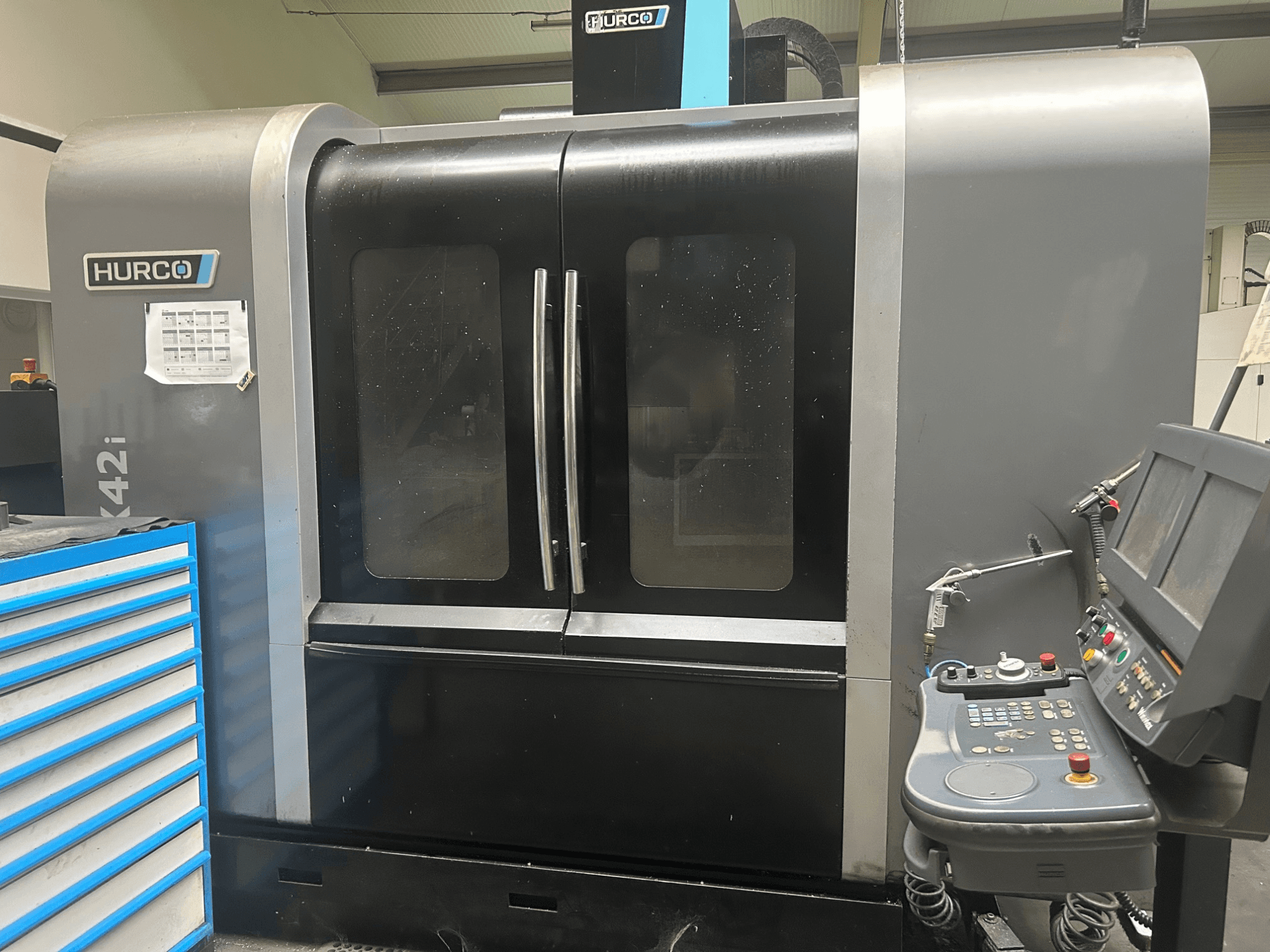

Hurco VMX42i CNC machine, front view with control panel on the side, features double doors and visible technical details.
Hurco VMX42i CNC machine, front view with control panel on the side, features double doors and visible technical details.

Hurco - VMX42iHU-MIL-HUR-2013-00002

£ 41,932
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Hurco VMX42i was manufactured in 2013. It features a robust table size of 1,270 × 610 mm with a maximum load of 1,500 kg. The spindle can reach speeds up to 12,000 rpm, supported by a 15 kW motor. It includes an automatic tool changer with a capacity for 24 tools. Ideal for high precision tasks, it also offers rapid traverse rates of 24 m/min. Contact us for more information about this machine.

Overview

  • brand: Hurco
  • year: 2013
  • MODEL: VMX42i
  • application type: Milling
  • Location: Hungary
  • machine type: Vertical Machining Centre

Technical Information - Hurco VMX42i

Dimensions

  • Machine Depth: 2800 mm
  • Machine Height: 2800 mm
  • Machine Weight: 5000 kg
  • Table Load: 1500 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 1.067 mm
  • Y-axis Travel: 610 mm
  • Z-axis Travel: 610 mm

Technical Specification

  • Max. Tool Weight: 7 kg
  • Spindle Speed: 12000 RPM

Additional Information

  • Table:

    • Table size: 1,270 × 610 mm

  • Spindle:

    • Lubrication: Grease-lubricated spindle

  • Feed Rates:

    • Maximum cutting feed: 20 m/min

  • Tool Changer:

    • Type: Automatic tool changer (carousel type)

  • Accuracy:

    • Positioning accuracy: ±0.005 mm

    • Repeatability: ±0.003 mm

  • Control System:

    • Control unit: Hurco WinMax dual-screen CNC control

    • Display: 19” color touchscreens (2×)

    • Software features: Conversational and NC programming, DXF import, 3D model verification

Additional equipment

  • Coolant through spindle (CTS): optional

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
