Hexagon - MARVEL IT-MEA-HEX-2024-00001

• Measurement rate:

  • Standard / Single Line: 2,100,000 pts/s

  • Fine: 900,000 pts/s

• Scanning area: up to 600 x 550 mm

  • Single Line mode width: 300 mm

• Light source: 22 blue laser lines + 1 single blue laser line + 5 parallel blue laser lines

• Resolution: up to 0.02 mm

• Accuracy (with targets):

  • Volumetric (Standard): 0.02 + 0.04 mm/m

  • Volumetric with scale bar: 0.02 + 0.03 mm/m

  • Volumetric + photogrammetry: 0.02 + 0.02 mm/m

  • Hole accuracy: up to 0.03 mm

  • Hole volumetric accuracy: 0.03 + 0.04 mm/m

• Target-free accuracy:

  • Volumetric (Standard): 0.05 + 0.02 mm/m

  • Hole volumetric accuracy: 0.06 + 0.02 mm/m

• Built-in photogrammetry:

  • Volumetric accuracy: 0.020 mm/m

  • Average deviation: 0.007 mm

• Depth of field:

  • General: 600–2500 mm

  • By mode: Standard/Single Line 450 mm; Fine 150 mm

  • Maximum DOF at furthest range: 550 mm

• Stand-off distance:

  • Standard / Single Line: 300 mm

  • Fine: 150 mm

• Recommended part size: 0.1–6 m

• Physical / operating:

  • Weight: 1.3 kg

  • Dimensions: 300 x 150 x 75 mm

  • Connection: USB 3.0

  • Working temperature: -10 to 40°C

  • IP rating: IP50

  • Working humidity: 10–90% non-condensing

• Export formats: .stl, .ply, .obj, .txt, .xyz, .asc

• Customisable formats: Available

• Compatible software:

  • Hexagon: Inspire, PC-DMIS, DESIGNER, Geomagic, BendingStudio XT

  • Third-party: PolyWorks, Metrologic, and other software importing point clouds or STL

• Key features:

  • Built-in photogrammetry; target-free and dynamic scanning

  • Galaxy Mode; 3 main scan modes with on-the-fly switching

  • Hole Flash Capture; multi-size target recognition (3 / 6 / 12 / 16 mm)

  • Instant LED visual feedback

  • Wireless scanning capability

  • Large stand-off distance

  • Automation-ready for third-party integration

  • Combine data from different modes in one point cloud/mesh

  • Suitable for large or delicate components

• Certifications:

  • Certified to VDI/VDE 2634-3

  • Accuracy validation linked to an ISO 17025-certified laboratory

• Typical applications / sectors:

  • Railway, general manufacturing, industrial equipment, automotive, marine, non-manufacturing applications

• Quantity: 1 scanner

Additional equipment (accessories, not part of the base machine)

• 3 mm positioning targets (ID), self-adhesive

  • Article code: B841-P007-A

  • Quantity included: 10 boxes; 1,000 pcs/box (approx. 10,000 pcs total)

• 6 mm positioning targets (ID), self-adhesive

  • Article code: B841-P006-A

  • Quantity included: 10 boxes; 1,000 pcs/box (approx. 10,000 pcs total)

• 6 mm magnetic cubic positioning targets (ID)

  • Article code: B841-P050-126-A

  • Quantity included: 1 box; 8 pcs/box

• FREEBox-II Wireless Scanning Module

  • Function: 5G Wi‑Fi wireless transmission and processing of scanning data; increases operator freedom/flexibility

  • Package includes:

    • 1x FREEBox II wireless module with strap

    • 2x 1 m FREEBox II USB cables

    • 1x power adapter

    • 1x power cable

    • 1x FREEBox battery

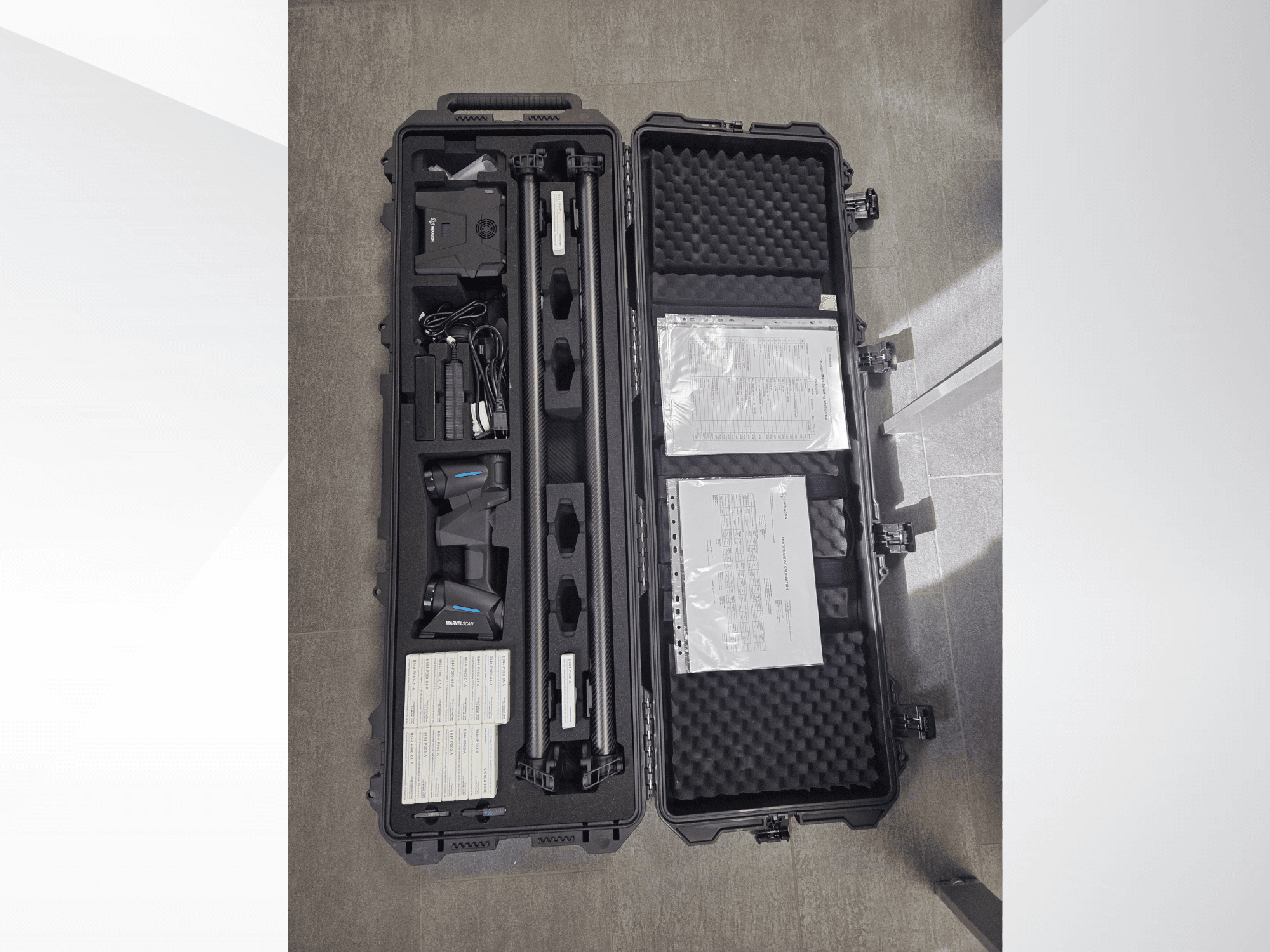

    • 1x travel case

    • 1x screwdriver set

    • Packing list

    • Quick installation guide
