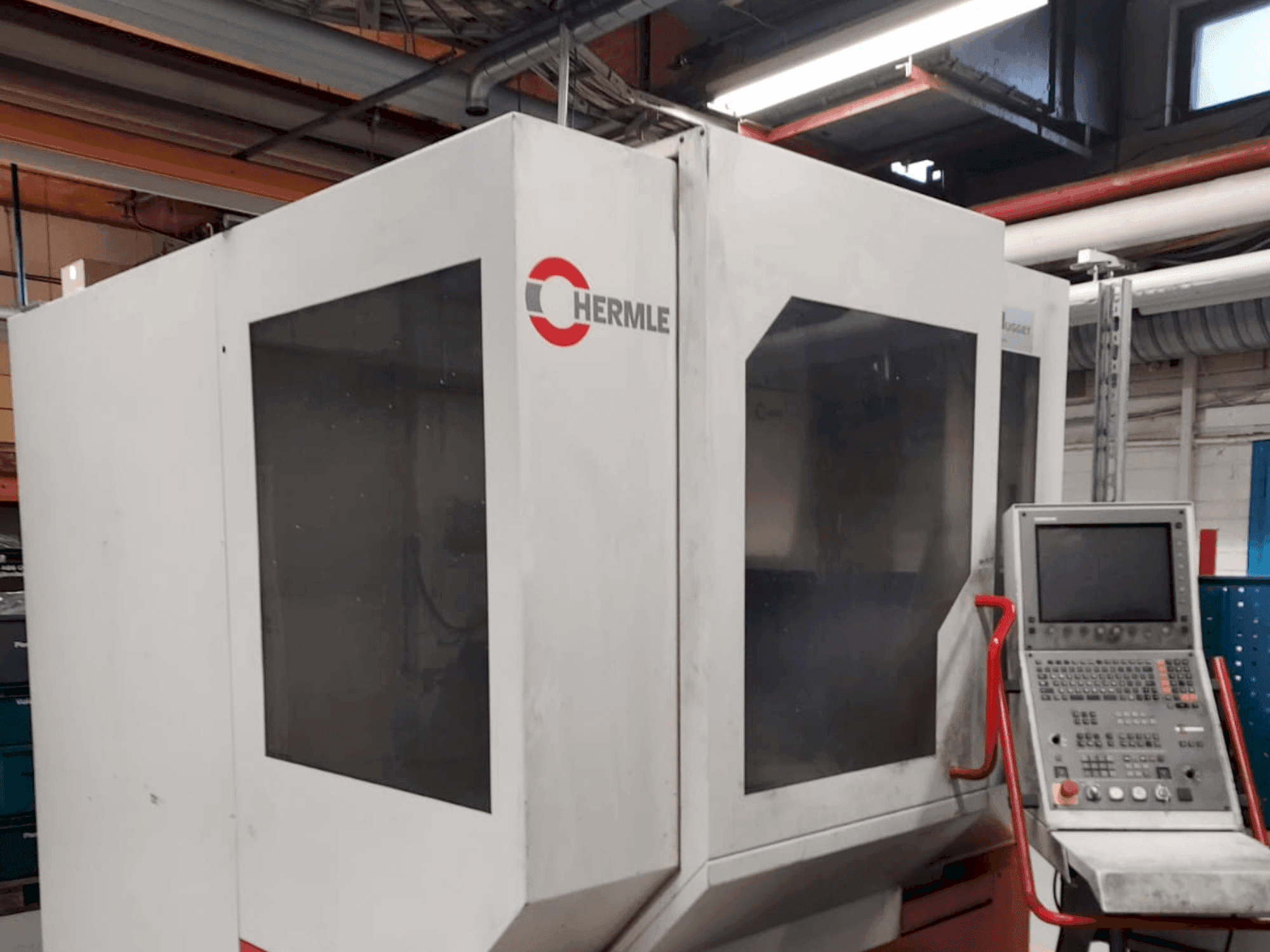

This 3-axis Hermle U 740 vertical machining centre was manufactured in 2004. It features a Heidenhain iTNC 530 control system, a spindle speed of 12,000 rpm, and a maximum workpiece weight of 700 kg. The machine dimensions are 2390mm in width, 3000mm in depth, and 7300mm in height. If you are looking to get high-quality milling capabilities, consider the Hermle U 740 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: HERMLE
- year: 2004
- MODEL: U 740
- production hours: 21000
- application type: Milling
- Location: Finland
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - HERMLE U 740
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Depth: 3000 mm
- Machine Height: 7300 mm
Movement
- Number of Axes: 3
- X-axis Travel: 740 mm
- Y-axis Travel: 500 mm
- Z-axis Travel: 500 mm
Technical Specification
- Spindle Power: 32 kW
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
Additional Information
Additional equipment
- Chip Collecting Pan
- Renishaw Touch Probe
- BLUM Tool Breakage Measurement
Machine Benefits
Technical Machine Benefits
- Spindle torque: 200 nm
- Table length: 900 mm
- Table depth: 500 mm
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
