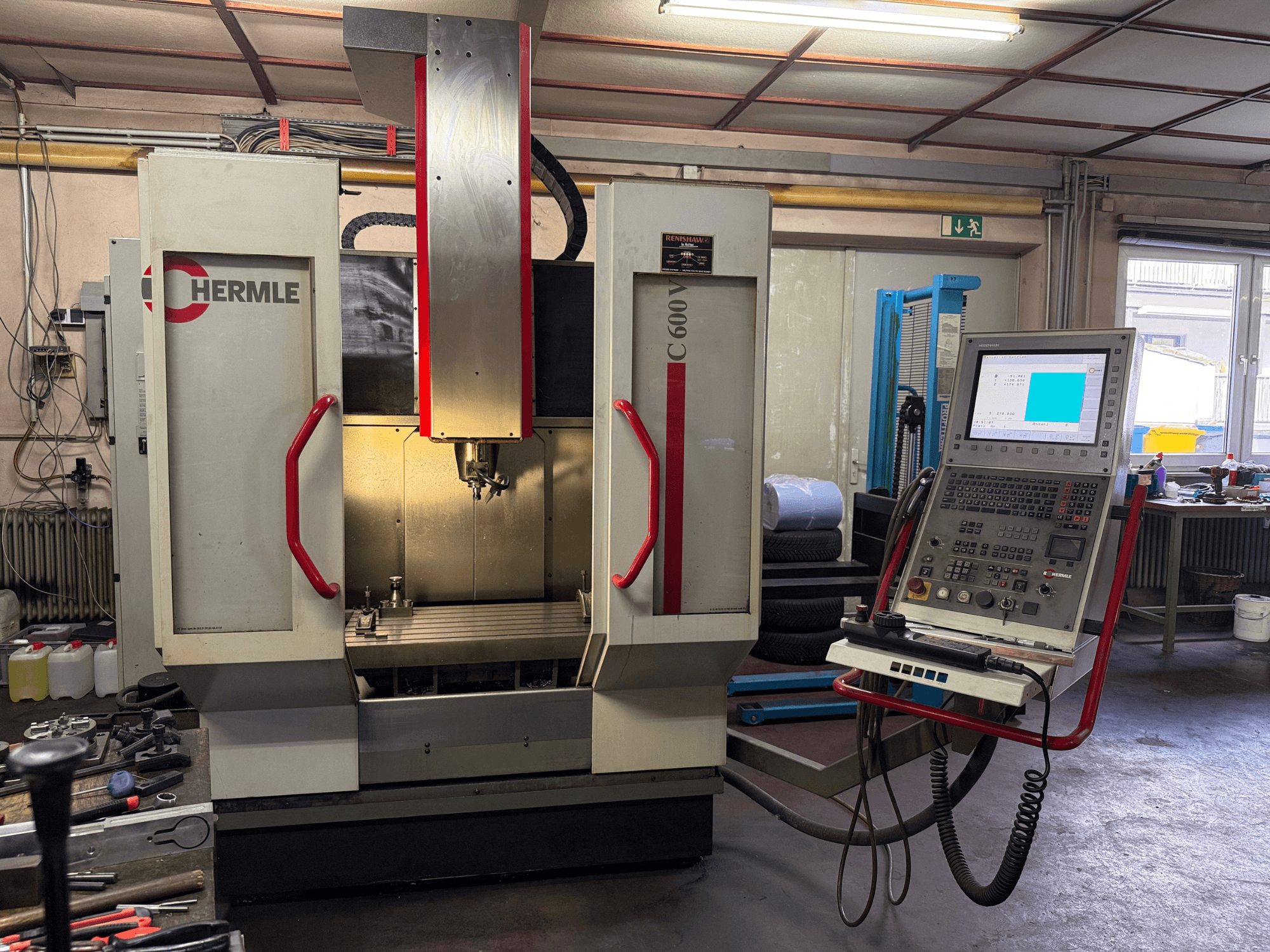

This 3-axis HERMLE C600V vertical machining center was manufactured in 2001. It features a Heidenhain iTNC 530 CNC path control, 7,000 spindle hours, and a modified gantry design. The machine offers a rapid traverse of 35 m/min, a spindle speed up to 16,000 rpm, and a tool magazine with 30 positions. If you are looking to get high-quality milling capabilities, consider the HERMLE C600V machine we have for sale. Contact us for more information.
Overview
- brand: HERMLE
- year: 2001
- MODEL: C600V
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - HERMLE C600V
Dimensions
- Table Load: 1000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 600 mm
- Y-axis Travel: 450 mm
- Z-axis Travel: 450 mm
Technical Specification
- Max. Tool Weight: 6 kg
- Spindle Power: 15 kW
- Spindle Speed: 16000 RPM
- Taper Size: SK 40
Additional Information
Spindle hours: 7,000 h
Machine design: Modified gantry design
CNC control: Heidenhain iTNC 530 with 15" TFT color screen
Flexible contour programming
6 GB part program memory
0.5 ms block processing time
Parallel operation with graphics
Thread cutting (rigid tapping; without compensating chuck)
Tool life monitoring
Ethernet interface
Feed drives
Feed force: 6,000 N
Rapid traverse: 35 m/min
Acceleration: 5 m/s²
Feed screw diameter/pitch (X/Y/Z): 40 / 20 mm
Measuring system: Direct scales, resolution 0.0001 mm
Position tolerance (Tp, VDI/DGQ 3441): 0.008 mm (X/Y/Z)
Main spindle
Torque (100% / 40% ED): 87 / 130 Nm
Taper: SK40 (similar DIN 2079), for tool holders per DIN 69871 A
Rigid clamping table
Table surface: 800 x 465 mm
Max load: 1,000 kg
T-slots: 7 slots, size 14 mm H12, spacing 63 mm
Guide slot (4th from rear): 14 mm H7
Tool changer
Magazine positions: 30
Max tool diameter: 80 mm (125 mm with free adjacent positions)
Max tool length: 250 mm
Max magazine load: 120 kg
Chip-to-chip (VDI 2852): 5.5 s
Coolant system
Extendable chip box and accessible chip screen
Tank: 200 L
Flow rate: 40 L/min at 3 bar
Utilities
Connected load: 400 V / 50 Hz
Power consumption: 22 / 35 kVA
Compressed air: 6 bar
Other features
Electrical thermal expansion compensation
Additional equipment
Electronic hand control module (handwheel)
SK40 measuring probe system
Blow-off device
Chip flushing gun
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
