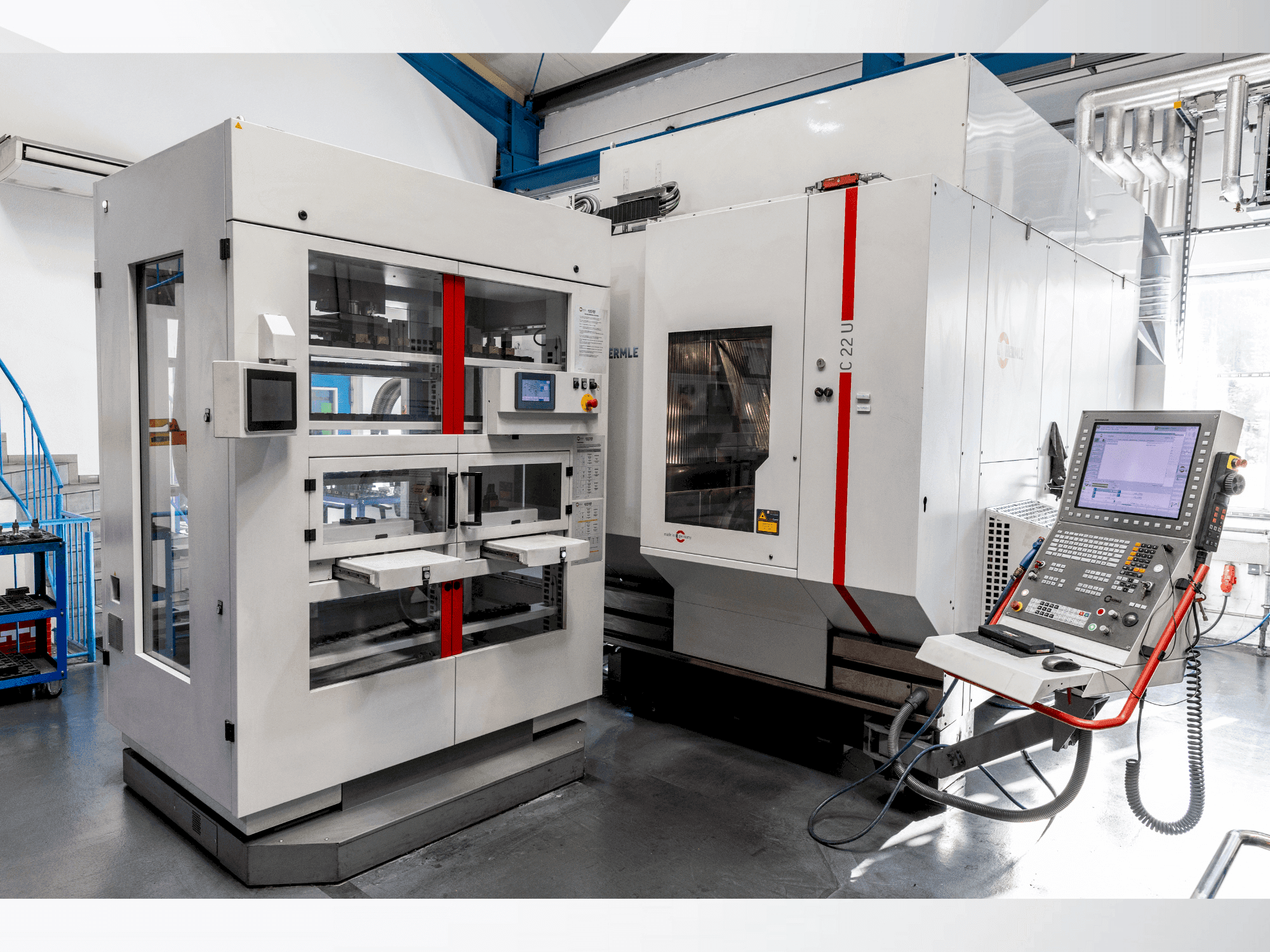

Front view of HERMLE C22 with handling system IH30  machine

HERMLE - C22U with handling system IH30DE-MIL-HER-2015-00001

£ 139,150
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis HERMLE C22U with handling system IH30 Machining Centre was manufactured in 2015. It features a Heidenhain TNC 640 control, a swivel rotary table with a 320mm diameter, and a high-speed spindle capable of 42,000 rpm. The machine includes a 65-tool magazine with HSK-E40 holders, an automatic cabin door, and a robust coolant system. Ideal for precision machining, the HERMLE C22U with handling system IH30 offers dynamic efficiency and precision. For more information about this Machining Centre, please reach out to us.

Overview

  • brand: HERMLE
  • year: 2015
  • MODEL: C22U with handling system IH30
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (universal)
  • availability: Immediately
  • control unit brand: Heidenhain

Technical Information - HERMLE C22U with handling system IH30

General Data

  • Measurements width: 1700 mm
  • Measurements depth: 1740 mm
  • Measurements height: 2400 mm
  • Machine weight: 9000 kg

Control Unit

  • Brand: Heidenhain
  • Model: TNC 640

Main drive

  • Spindle speed range: 42000 1/MIN
  • Tool taper: HSK E40
  • Number of axis: 5

Tools

  • Slots in storage: 65

    Additional Equipment

    • - It comes with Handling system IH30
    • - Rigid clamping table
    • - Coolant unit standard
    • - Chip chute left
    • - Polycarb safety disks
    • - 6-fold rotary feed-through
    • - Outer MMS
    • - BLUM tool breakage/measurement A1
    • - Chuck 3-R PowerGrip on system table
    • - Incl. adapter plate for system table

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - 55 tool positions sk40
        • - Swivel rotary table stp diameter 320mm //one-sided drive of the a-axis diameter 320
        • - Table top diameter 320mm
        • - Blow air through the center of the spindle
        • - Sealing air for scales
        • - Emulsion mist extraction incl. Secondary filter
        • - Automatic cabin door // automatic cabin roof
        • - Electric heat compensation heidenhain // electric manual control module heidenhain
        • - Ih30 shelf its50 pallets and its78
        • - Dynamic efficiency and dynamic precision for enhanced performance, high spindle speed for precision machining, comprehensive handling and tooling options integrated into the system.
      • Qualitative Machine Benefits:
        • - Standard cabin
        • - Kinematicopt hardware
        • - Blow-off device
        • - Pneumatic extension 1:2
        • - External suction unit
        • - Control panel for hacs on the ih30
        • - Parallel gripper incl. Specific gripper finger set
        • - Exchangeable gripper 3r gripper finger set
        • - High-quality components such as heidenhain control and blum tool systems ensure reliability and precision, advanced safety features like polycarb safety disks and automatic cabin doors enhance operational safety.
        • - Clamping system included and keller graphite extraction system included

      Extra information

      • - The machine includes a KUHNKE PLC software for enhanced control. Features a magazine capacity of 50 pallets and a standard gripper based on a fork gripper with pneumatic holding pins. THE MACHINE PROCESSES synthetic materials. New spindle and bearings 2018 (Hermle) Coolant tray included Kinematic OPT included. With ball on pallet.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
