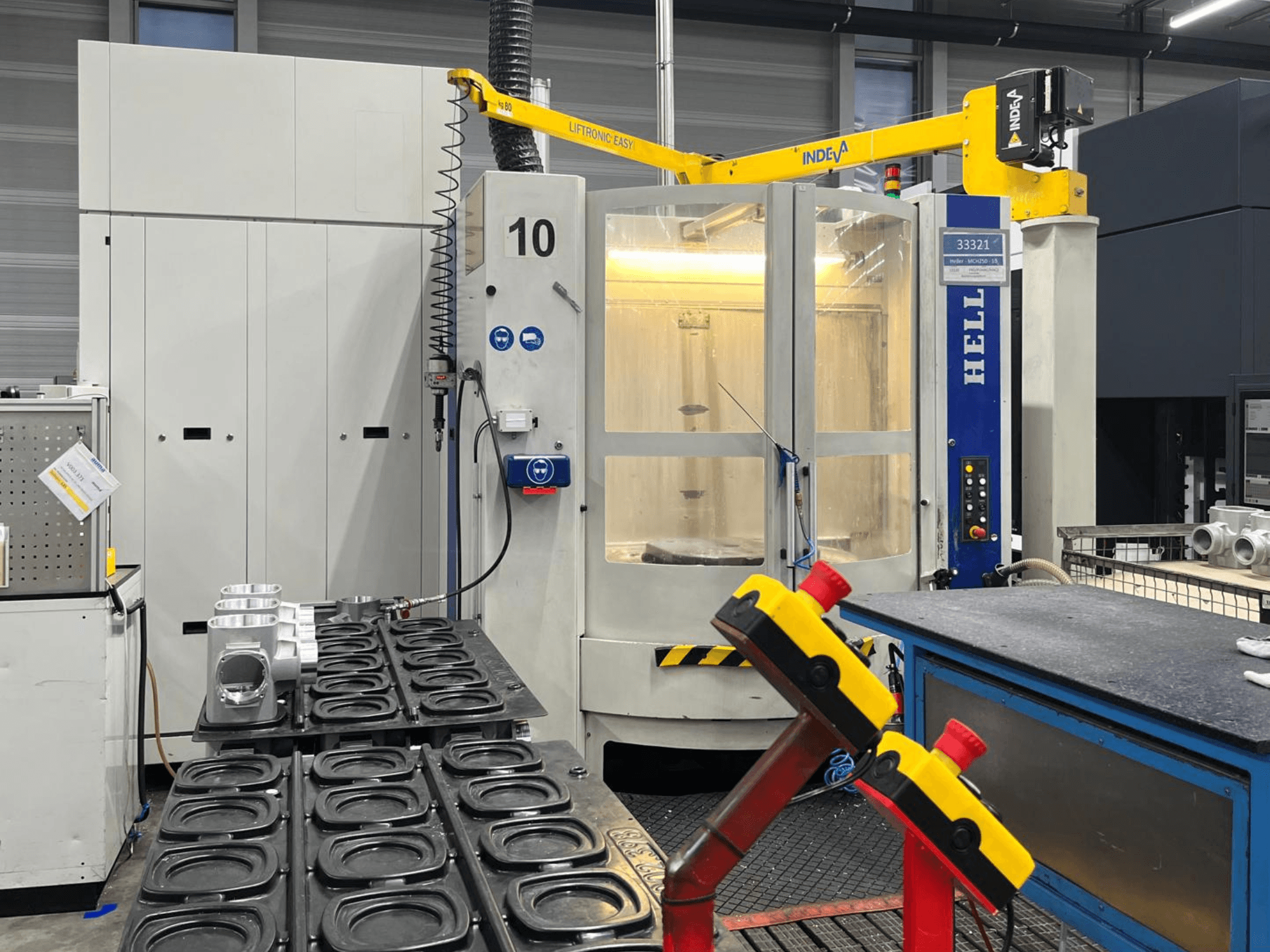

This 4-axis HELLER MCH 250 was manufactured in 2010. It features a spindle speed of 12,500 rpm and an impressive travel of 800 mm in all axes. The machine includes a chain-type tool magazine with a capacity for 100 tools and a maximum tool length of 600 mm. If you are looking to get high-quality machining capabilities, consider the HELLER MCH 250 horizontal machining centre we have for sale. Contact us for further details.
Overview
- brand: HELLER
- year: 2010
- MODEL: MCH 250
- production hours: 29200
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
Technical Information - HELLER MCH 250
Movement
- Number of Axes: 4
- X-axis Travel: 800 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 800 mm
Technical Specification
- Spindle Speed: 12500 RPM
Additional Information
B-axis rotary table: 360,000 × 0.001°
Tool holder: HSK 100 (DIN 69893 Form A)
Tool magazine: Chain type, 100 tools
Maximum tool length: 600 mm
Tool loading station with terminal
Tool setup during spindle runtime
Hydraulic interface: 5-fold media interface, 200 bar
Coolant system: KNOLL 400 K-1/150; high-pressure coolant 70 bar; coolant tank 1,500 liters
Special equipment/options: Air purge on glass scales; working area flushing; window blow-off device; Dynamics package .1; Preventive maintenance TPM; infrared receiver for Renishaw probe; IPM
Operating hours: approx. 29,200 h
Condition/service history:
Hard drive replaced in 2025
Z-axis scale replaced in 2022
Z-axis ball screw replaced in 2022
B-axis absolute encoder replaced in 2020
Complete tool changer replaced in 2020
Y-axis scale replaced in 2012
Additional equipment
Vacuum rotary filter system
Twin spiral chip conveyor in working area
Cross conveyor with 1,200 mm discharge height
Automatic coolant tank filling (Dosatron system)
2 machine pallets
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
