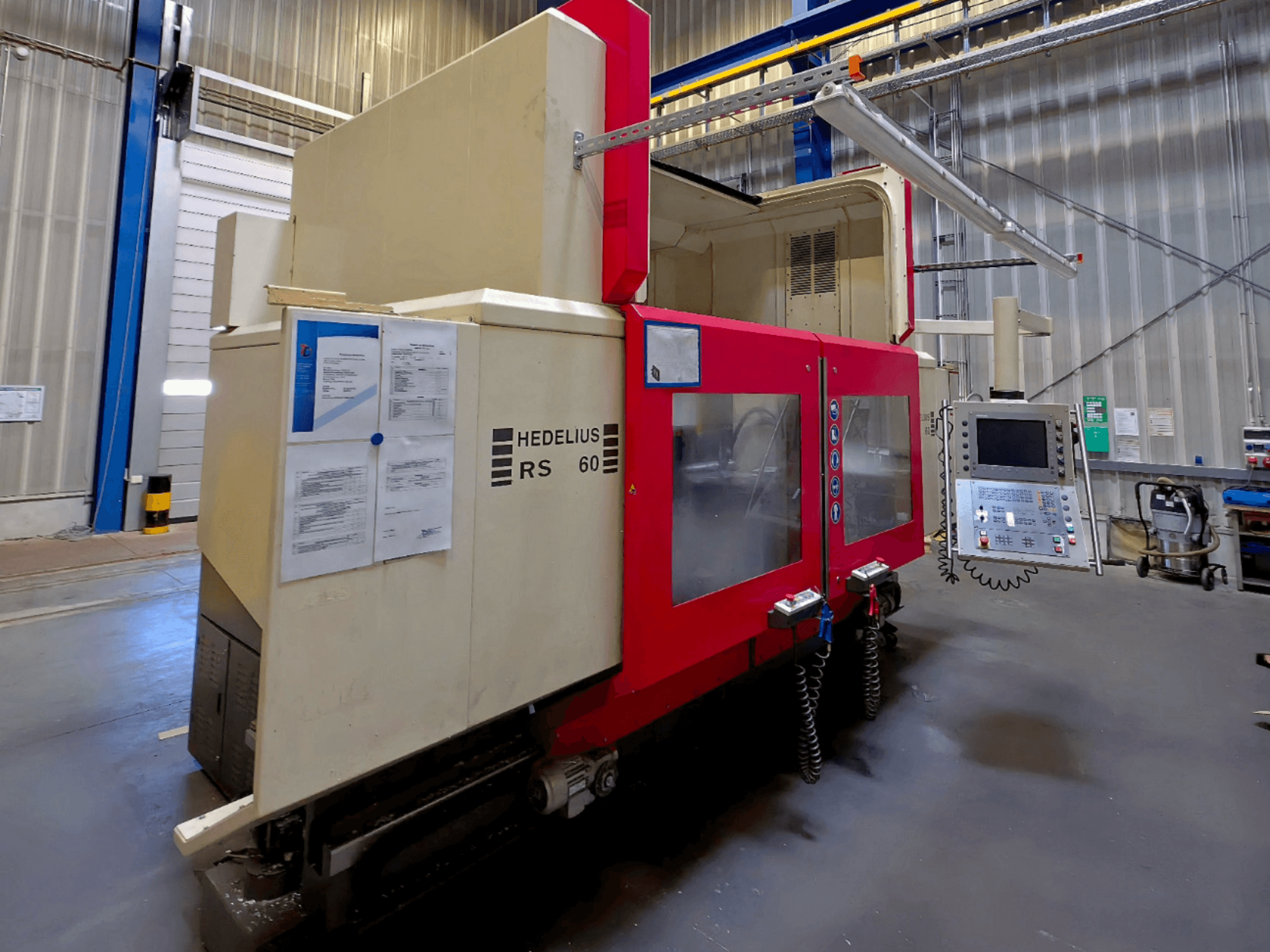

HEDELIUS RS 60 K - 2000 vertical machining centre, side view, features control panel and safety instructions visible.
HEDELIUS RS 60 K - 2000 vertical machining centre, side view, features control panel and safety instructions visible.

HEDELIUS - RS 60 K - 2000DE-MIL-HED-2005-00001

£ 38,809
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis HEDELIUS RS 60 K - 2000 was manufactured in 2005. It features a generous X-axis travel of 2000 mm, Y-axis travel of 620 mm, and Z-axis travel of 520 mm. The machine can accommodate a maximum workpiece weight of 1000 kg on the fixed table. If you are looking to get high-quality machining capabilities, consider the HEDELIUS RS 60 K - 2000 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: HEDELIUS
  • year: 2005
  • MODEL: RS 60 K - 2000
  • production hours: 10327
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - HEDELIUS RS 60 K - 2000

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: iTNC 530

Movement

  • Number of Axes: 3
  • X-axis Travel: 600 mm
  • Y-axis Travel: 620 mm
  • Z-axis Travel: 520 mm

Technical Specification

  • Number of Tools: 30
  • Spindle Speed: 3000 RPM

Additional Information

  • Travels (fixed machine table area) X2/X/Z: 775 / 620 / 520 mm

  • Spindle nose-to-table distance: 100–620 mm

  • Max. workpiece weight: rotary/tilting table 300 kg; fixed table 1000 kg

  • Main spindle: Diebold MSG-E205.15-15AK4

  • Axis drives (X/Y/Z): Siemens 1FT6082 // IMB 25 // 4.1 kW // 3,000 rpm // IP54

  • Internal cooling: Yes, internal coolant system installed

  • Prepared for automatic clamping: Yes

  • Spindle run time: 10,327:19:09

  • Condition: Used, not functional

Additional equipment

  • Heidenhain HR410/3+ handheld control unit

  • 350-liter screen filter system with 20 bar internal coolant

  • Scraper floor conveyor (chip conveyor)

  • Partition wall for pendulum machining

  • 2x blow-off guns

  • Cleaning gun (3 bar, 20 l/min)

  • Touch probe preparation: Renishaw RMP60 receiver installed; touch probe itself is not included

  • Robot interface

  • Oil mist extraction

  • Machine hood

  • Laser for tool measurement


*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
