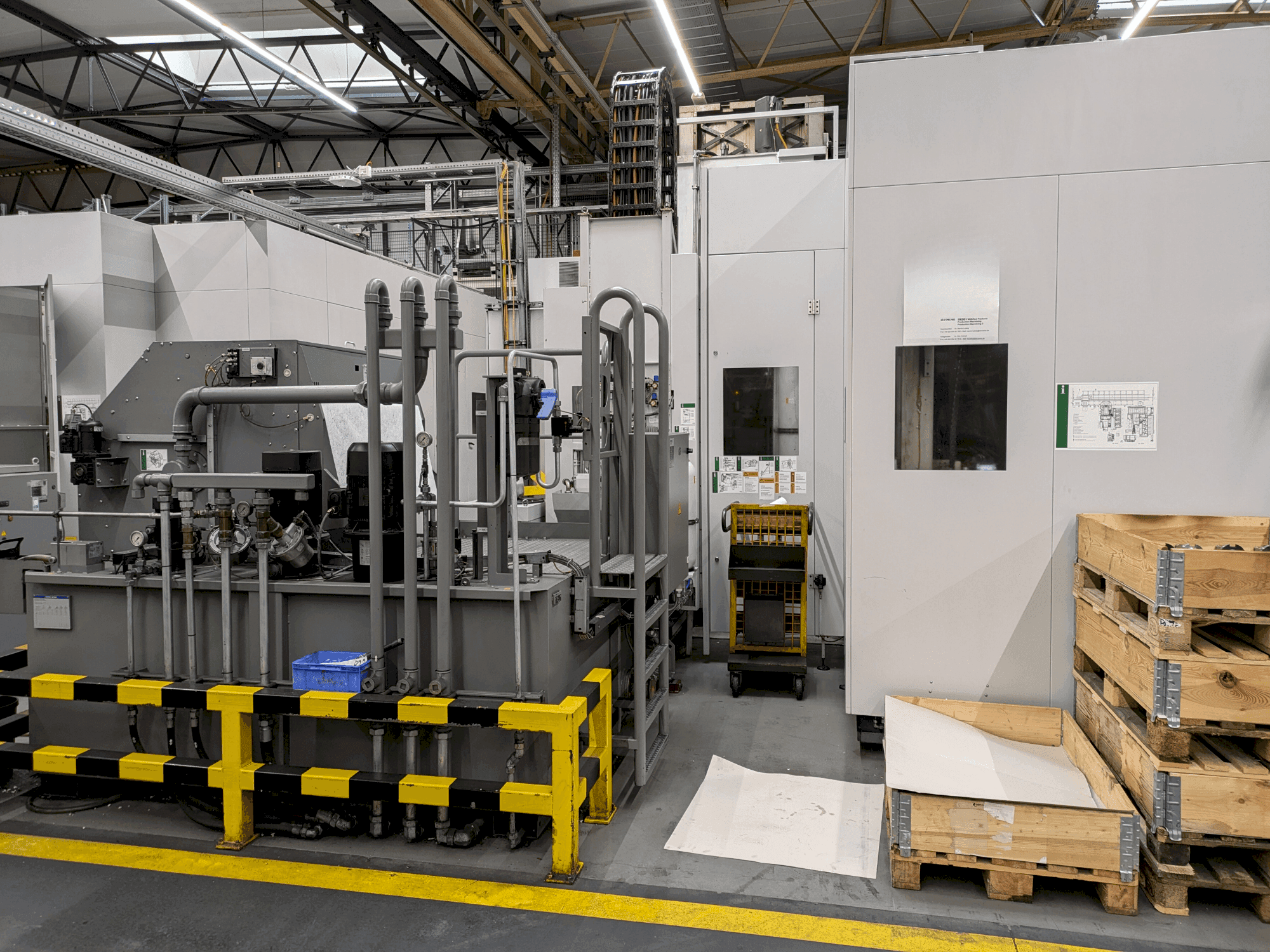

Heckert - HEC 1000 H/VDE-MIL-HEC-2012-00002

Additional Equipment

• - Coolant Unit: Compact system with internal coolant supply through spindle up to 70 bar
• - Coolant Unit Inclusions: Oil skimmer, swivel shower
• - Emission Extraction System: Mechanical filter system ensuring cleanroom exhaust quality, meeting EU 13 standards
• - Tool Breakage Control: Laser bridge for real-time tool monitoring
• - Machine Status Display: 4-color LED module Red: Machine off Green: Machine running in automatic mode Yellow: Restricted tools in magazine Blue: Workpiece machining completed
• - Optional with 13 machine pallets

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Swivel speed: up to 30 rpm
  • - Acceleration: up to 6 rpm²
  • - Max workpiece dimensions: Ø1900 mm x 1050 mm height (clamped)
  • - Special clamping hydraulics: 4-channel configuration for clamping 800x800 pallets
  • - Division accuracy: 360000 positions (0. 001° increments)
  • - Magazine type: drum magazine with 320 tool storage slots in 4 turrets
  • - Torque (s1): 61–1024 nm torque (s8): up to 1880 nm
  • - Power (s1): up to 44 kw power (s6): up to 84 kw

Extra information

• - Specifications align with: HEC 800 X5 (Machine No. 14401) Interface for Pallet Transport System (Fa. Fastems): Compatible for pallet transport and adherence to alignment tolerances Includes pallet adapter and electrical interface for integration with HEC 1000 This machine features high precision operation with efficient machining capabilities.

Payment Terms

• Payment in advance

• Asset Financing
