HALTER - LoadAssistant Universal Big 70 DE-ROB-HAL-2022-00001

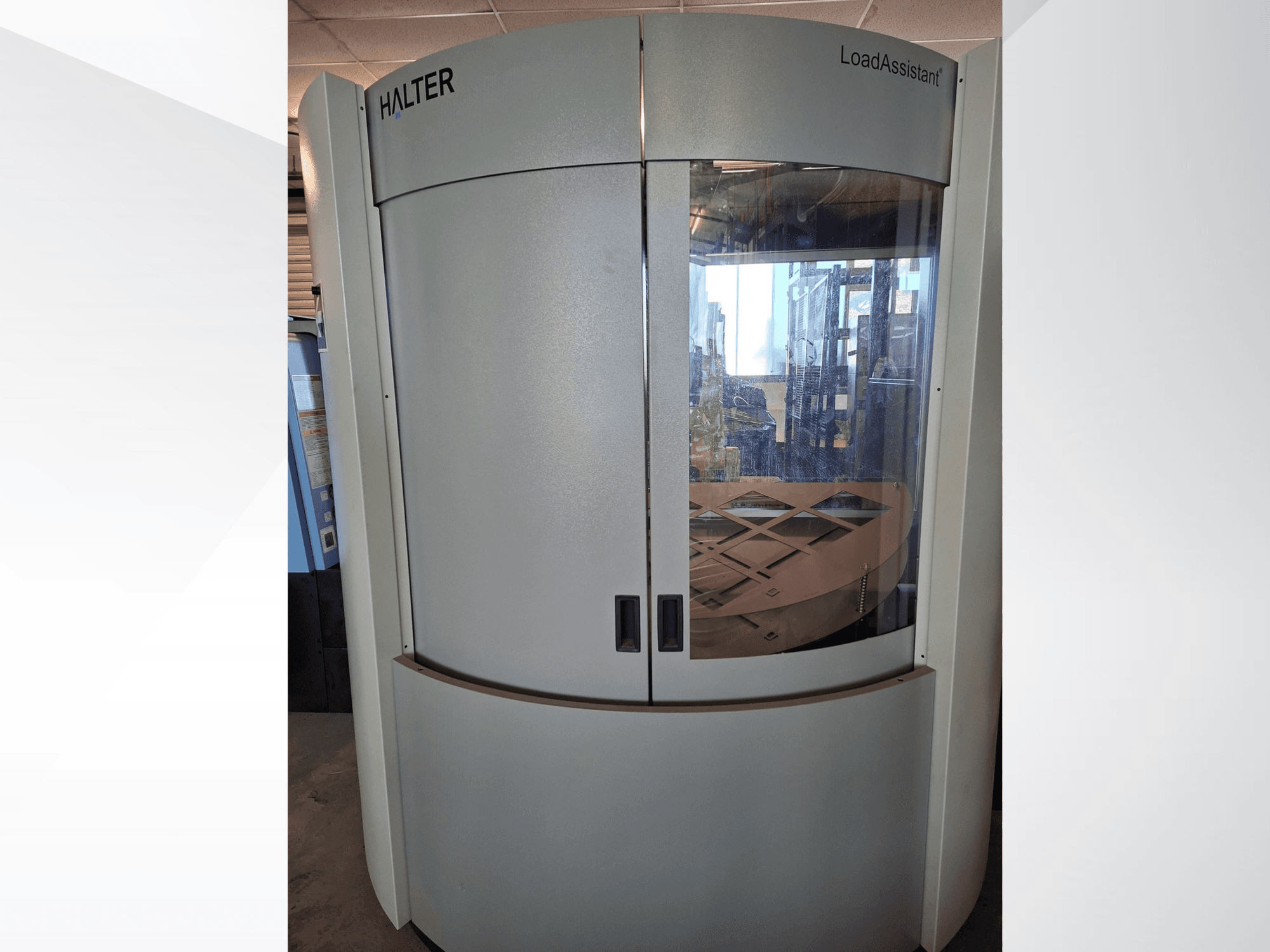

HALTER LoadAssistant Universal Big 70 (2022)

• Control Unit Brand: HALTER

• Control Unit Model: SmartControl

• Touchscreen: 21 inch

• Programming: Graphically supported programming (12 steps)

• Number of CNC Machines: Up to 4

• Robot Interface: Standard interface for CNC machines

• Power Supply: 400 V

• Maximum Current: 16 A / 32 A

• Required Air Pressure: 6.5 bar

• Length: 2800 mm

• Width: 2250 mm

• Height: 2900 mm

• Weight: 2490 kg / 2800 kg

• Rotating Loading Table: Yes

• Maximum Loading Table Capacity: 3000 kg

Workpiece Capacity:

• Workpiece Diameter: 10–300 mm

• Minimum Workpiece Size (L × W): 10 × 10 mm

• Maximum Workpiece Size (L × W): 300 × 300 mm

• Robot Payload: 35 kg / 70 kg

• Maximum Total Weight on Loading Table: 3000 kg

• Maximum Number of Workpieces (10–35 mm): 206

• Maximum Number of Workpieces (23–55 mm): 112

• Maximum Number of Workpieces (23–85 mm): 62

• Maximum Number of Workpieces (23–115 mm): 46

• Maximum Number of Workpieces (23–175 mm): 28

• Maximum Number of Workpieces (23–195 mm): 24

• Maximum Number of Workpieces (23–300 mm): 18

Shaft Loading Capacity:

• Workpiece Diameter: 10–40 mm / 10–80 mm

• Minimum Workpiece Size (L × W): 10 × 10 mm

• Maximum Workpiece Size (L × W): 40 × 40 mm / 80 × 80 mm

• Workpiece Length: 300–600 mm

Installed Options:

• Turning Gripper Universal Big 70

• Turning Station

• Status Indicator Light

• Grid Plate 23–175 mm Big

• Machine Interface Box

• Machine Connection Cable Set

• Complete Machine CE Certification

With FANUC Robot Arm:

• Manufacturer: FANUC

• Model: M-710iC/70

• Robot Type: Industrial Robot

• Number of Axes: 6

• Maximum Payload: 70 kg
