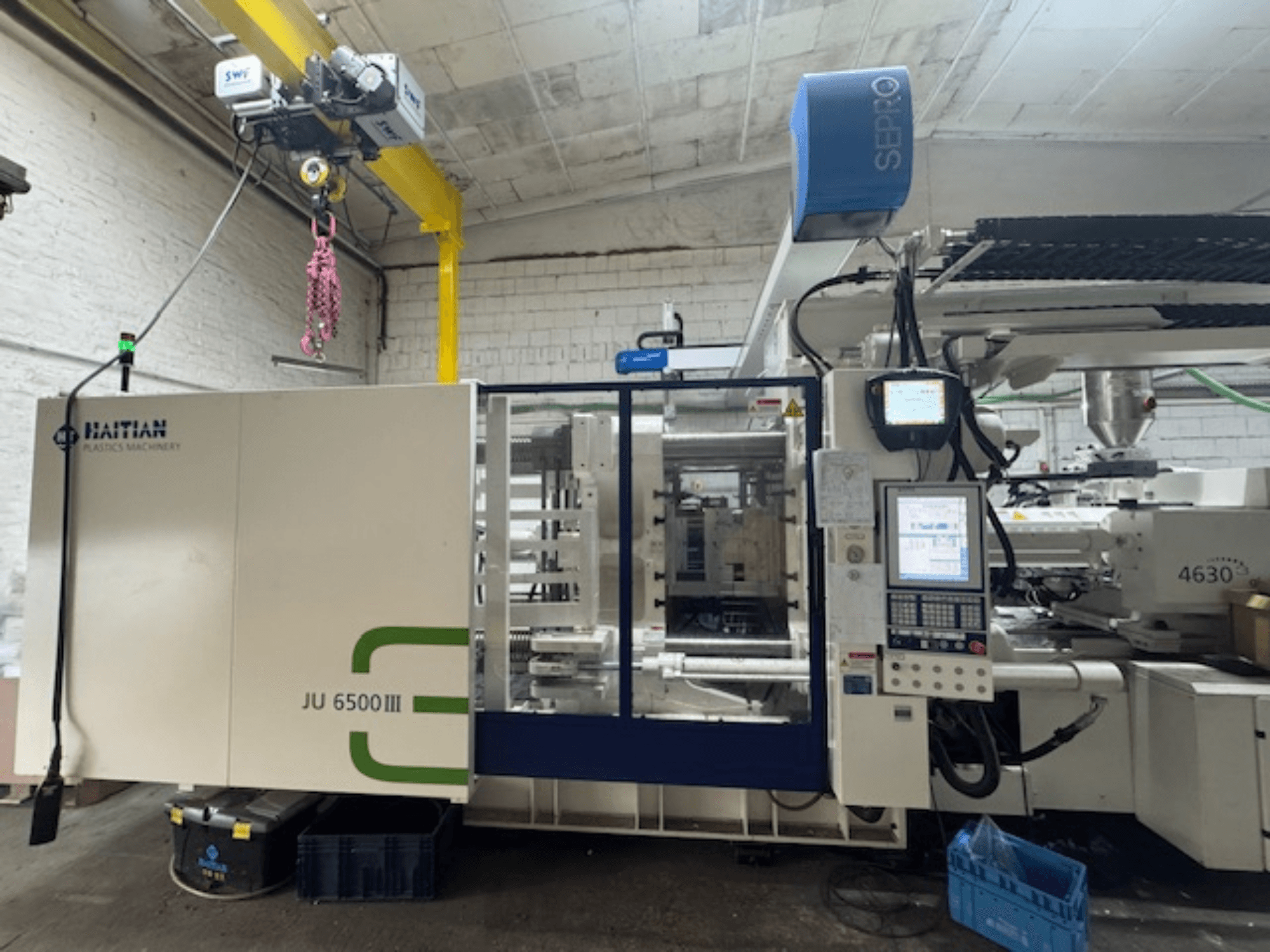

Hydraulic injection moulding machine manufactured in 2023. This HAITIAN Jupiter 3 JU 6500 features a clamping force of 6500 kN and an injection volume of 2212 cm³. It includes a maximum screw speed of 165 rpm and a tie bar distance of 1040 × 910 mm. If you are looking to get high-quality injection moulding capabilities, consider the HAITIAN Jupiter 3 JU 6500 machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: HAITIAN
- year: 2023
- MODEL: Jupiter 3 JU 6500
- production hours: 1596
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- control unit brand:
Technical Information - HAITIAN Jupiter 3 JU 6500
Dimensions
- Machine Height: 2700 mm
- Machine Length: 7700 mm
- Machine Weight: 28000 kg
- Machine Width: 2600 mm
Technical Specification
- Clamping Force: 6500 kN
Additional Information
Reduced Clamping Force Software: 5500 kN
Injection Unit: 4630
Screw Diameter: 80 mm
L/D Ratio: 22
Injection Pressure: 2090 bar
Injection Volume: 2212 cm³
Injection Weight: 525 g
Plasticizing Capacity: 73.6 g/s
Maximum Screw Speed: 0–165 rpm
Opening Stroke: 1350 / 800 mm
Tie Bar Distance: 1040 × 910 mm
Max. Mold Height: 950 mm
Min. Mold Height: 400 mm
Ejector Stroke: 250 mm
Ejector Force: 110 kN
Oil Tank Capacity: 600 L
Pump Power: 65 kW
Heating Capacity: 48 kW
Total Connected Load: 113 kW
Rated Power: 84 kW
Current Consumption: 156 A
Power Supply: AC400V / 3P / N / PE / 50Hz
Short Circuit Capacity: 25 kA
Controller: Keba 2985
Touchscreen: 15-inch Touchscreen Display
USB Interface: Yes
Hydraulic System: Rexroth / Vickers Components
Core Pull Circuits: 4
Pneumatic Circuits: 2
Closed-Loop Temperature Monitoring: Yes
Oil Temperature Monitoring: Yes
Cooling Water Manifold: Included
Hopper: Movable Ball-Bearing Mounted Hopper
Mold Temperature Controllers:
Wittmann 8-Circuit Flow Controller
Additional 8-Circuit Flow Controller
Conveyor Belt: Included
Full Automatic Hours: 1,596.8 h
Robot
Manufacturer: Sepro Group
Type: Linear Take-Out Robot
Robot Axes: 3-Axis
Robot Interface: Euromap 67
Application: Automated Part Removal
Conveyor System: Included
Integration: Installed on Machine
Condition: Very good
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
