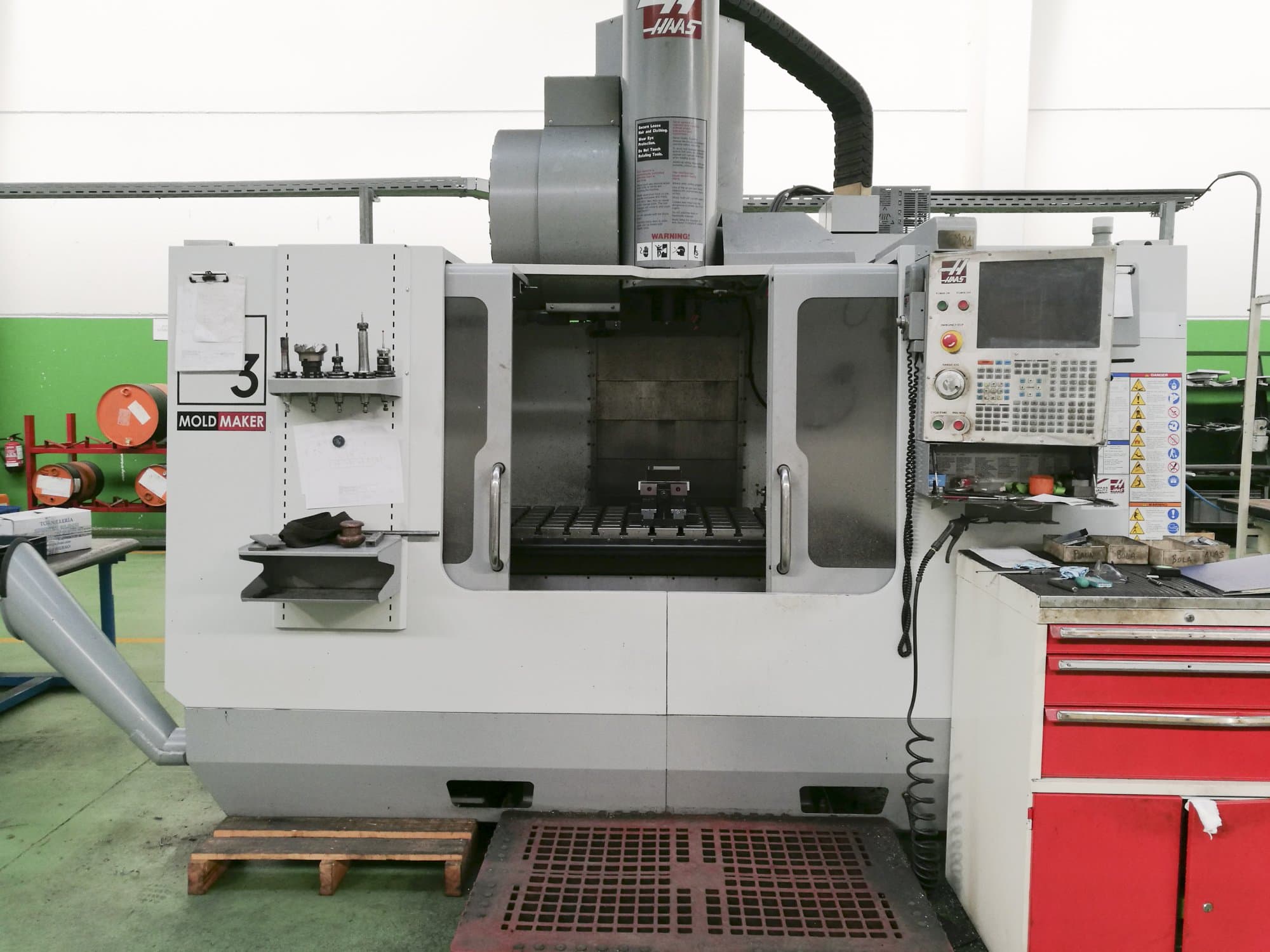

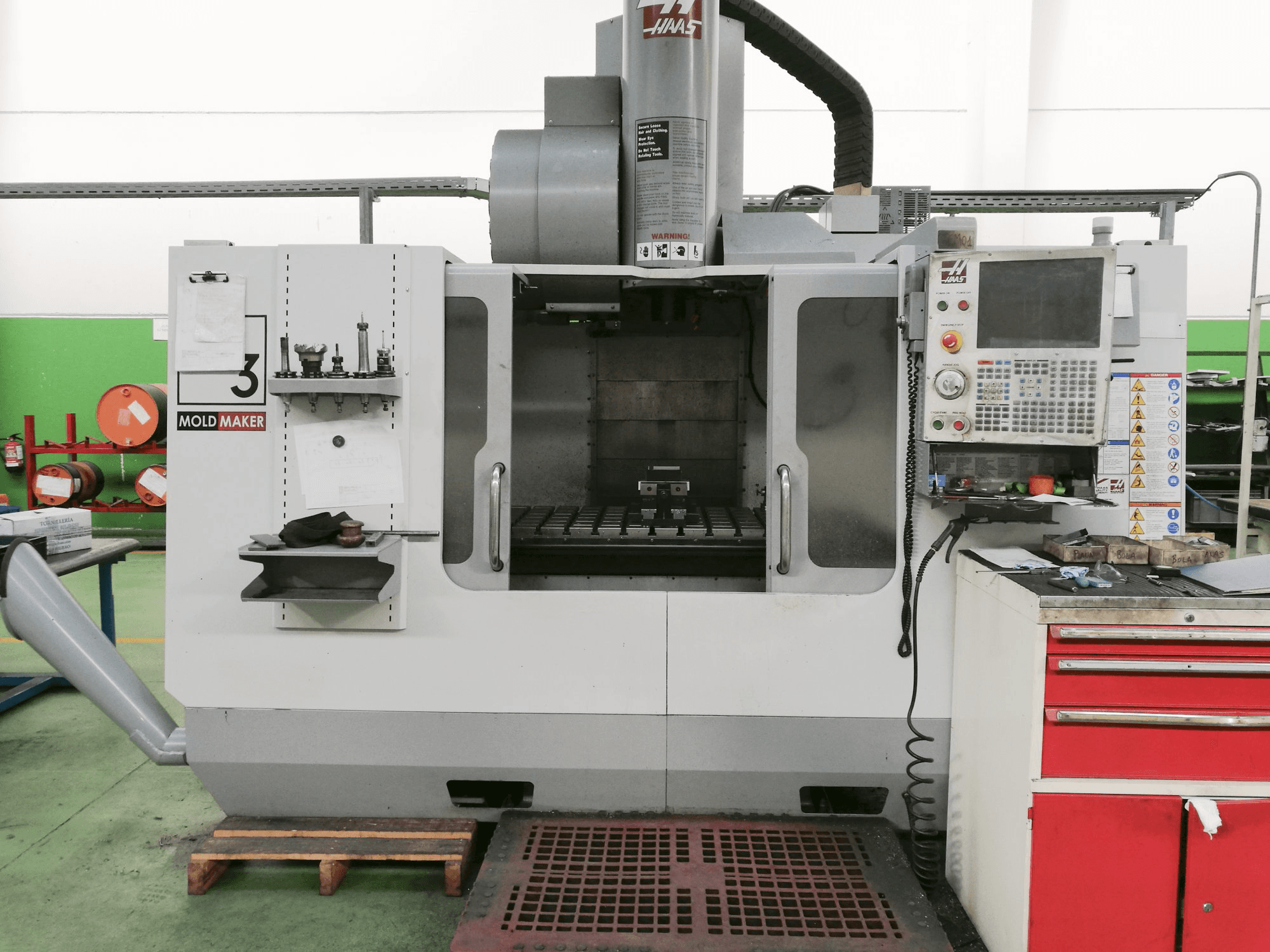

HAAS VM-3HE Vertical Machining Center

Show in original language

This HAAS VM-3HE Vertical Machining Center from 2008 has a production record of 18569 hours. With a working table of 1372 x 635 millimeters (L x W), the machine is operated through a HAAS MOCON 12.07 Control unit, which was updated to the M16.06F version in 2009. Due to its low wear, the equipment is in perfect condition, and stands out for its high precision performance. In the past, this machine has worked mainly with steel and occasionally with copper. A tool measuring system and a Renishaw part measurement probe are included as additional equipment.

Overview

brand: HAAS
year: 2008
MODEL: VM-3HE
production hours: 18569
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VM-3HE

General Data

Measurements width: 4084.6 mm
Measurements depth: 2365.4 mm
Measurements height: 2700 mm
Machine weight: 6350 kg

Control Unit

Model: MOCON 12.07
Release: M16.06F
Brand: HAAS

Main drive

Spindle speed range: 12000 1/min
Spindle motor power: 22.1 kW
Tool taper: ISO 40

Movement

X-AXIS Movement: 1016 mm
X-AXIS Working Feed: 12.7 m/min
X-AXIS Rapid traverse: 18 m/min
Y-AXIS Movement: 660 mm
Y-AXIS Working Feed: 12.7 m/min
Y-AXIS Rapid traverse: 18 m/min
Z-AXIS Movement: 635 mm
Z-AXIS Working Feed: 12.7 m/min
Z-AXIS Rapid traverse: 18 m/min

Table

Outer length: 1372 mm
Outer width: 635 mm

Turret

Number of turrets: 1
Number of tool slots: 24+1
Rotating tools: Yes

Media

Main electronic connection: 360-480 V

Additional Equipment

- Tool measuring system
- Part measurement probe (Renishaw)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
