HAAS VF-9 Vertical machining center

Show in original language

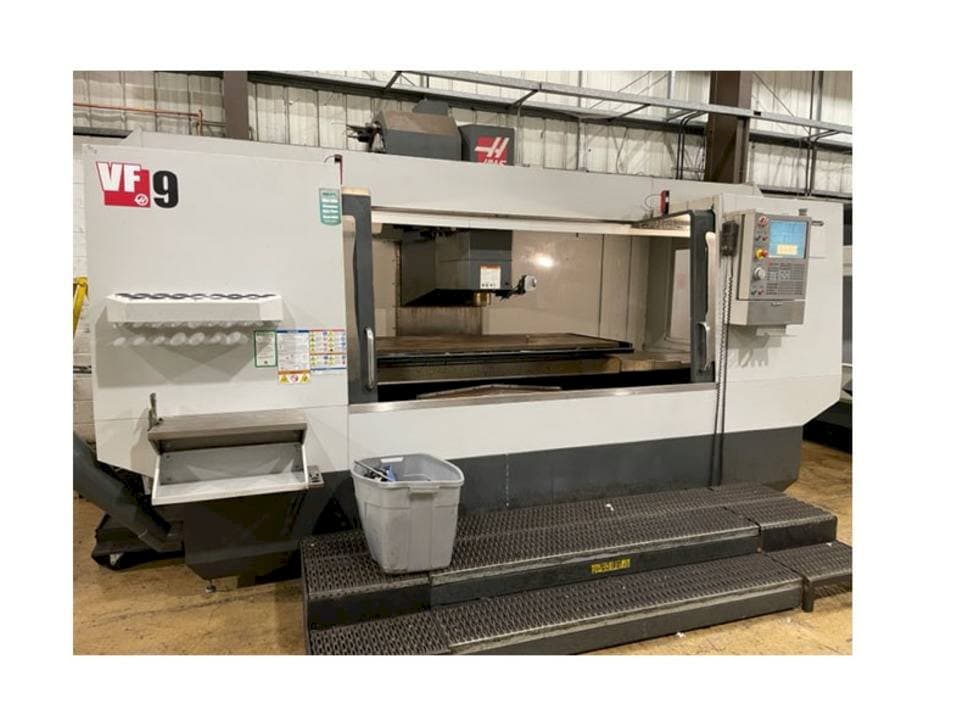

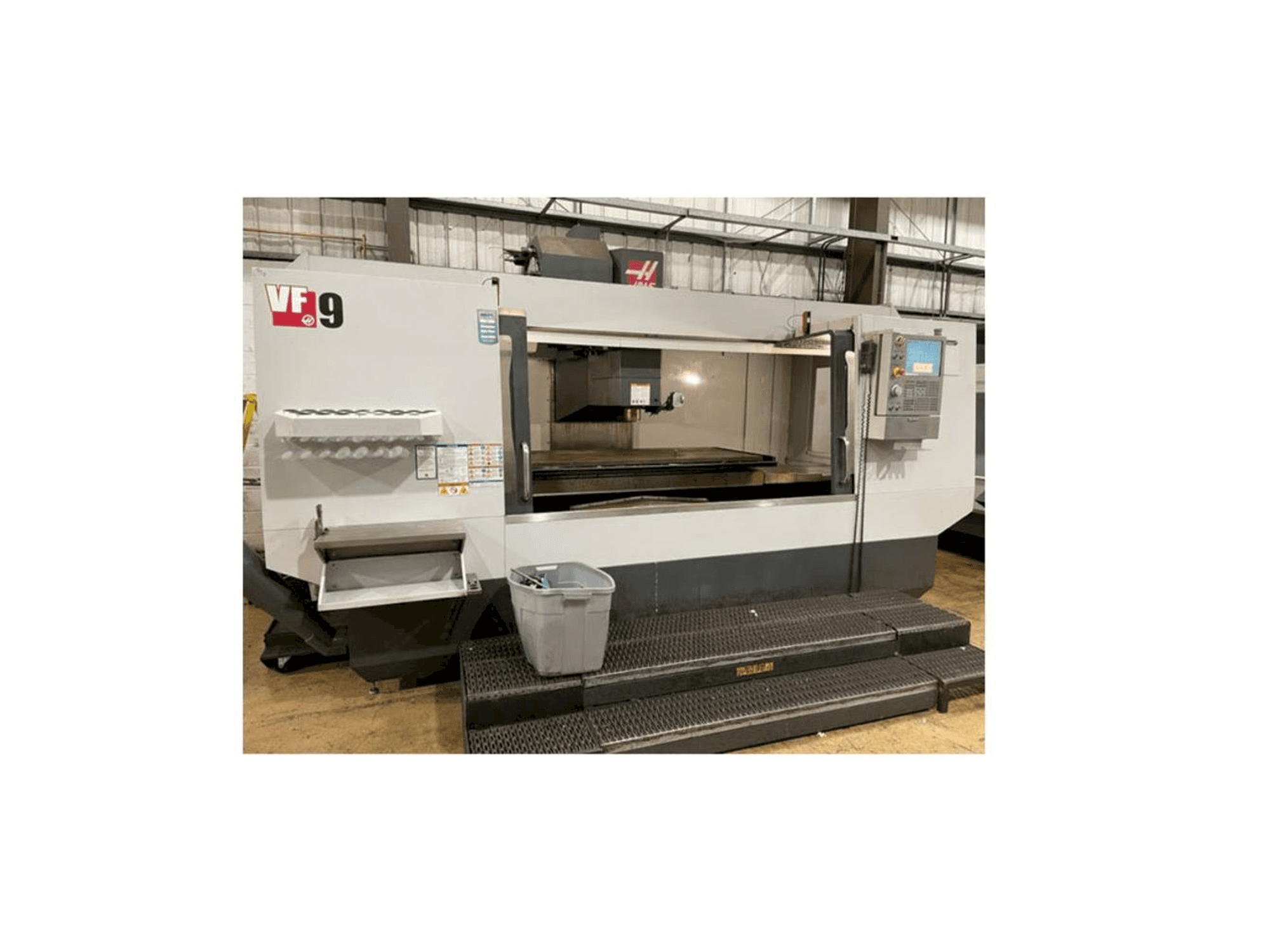

This HAAS VF-9 Vertical machining center was manufactured in the United States in the year 2011. It has 3 axis and it is operated through a Haas control unit. It has a spindle speed up to 7500 rpm and a spindle power of 22.4 kW. The machine manual is included.

Overview

brand: HAAS
year: 2011
MODEL: VF-9
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF-9

General Data

Measurements width: 5340 mm
Measurements depth: 3531 mm
Measurements height: 3150 mm
Machine weight: 11340 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 7500 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 2134 mm
Y-AXIS Movement: 1016 mm
Z-AXIS Movement: 762 mm

Workpiece

Workpiece weight: 1814 kg

Table

Outer length: 2134 mm
Outer width: 914 mm

Tools

Slots in storage: 24
Type of tool holder: BT 40

Media

Main electronic connection: 360-480 V/ 50-60 Hz
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits

Spindle motor power 22. 4 kw
"maximum cutting feedrate 8. 4m/minute"
"rapid feedrates xyz: 8. 4 x 15. 2 x 15. 2m/minute"
"tool change time (chip to chip) 3. 6 seconds"
"max & min distance from table to spindle 102 ~ 864mm"
Spindle coolant

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
