HAAS - VF-6/40CZ-MIL-HAA-2013-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- HAAS VF-6/40 Milling

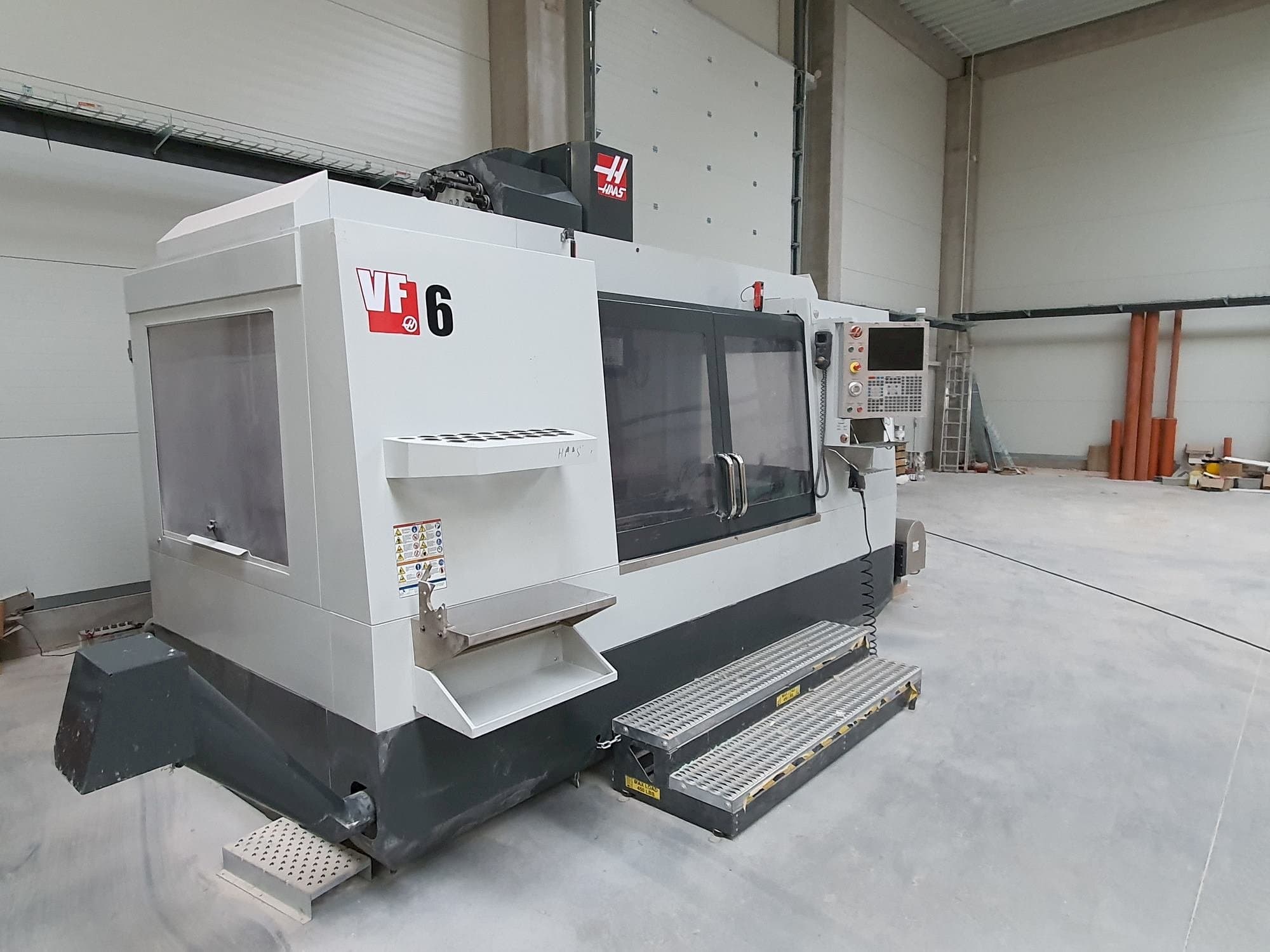

This HAAS VF-6/40 Vertical Machining Center was built in the year 2013 in the United States. It has 8545 working hours. It is equipped with a HAAS control unit. This 5 axis machine can work with a spindle speed up to 15000 rpm. It presents very good working conditions, and has only worked with soft materials.
Overview
- brand: HAAS
- year: 2013
- MODEL: VF-6/40
- production hours: 8545
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS VF-6/40
Control Unit
- Control Brand: HAAS
Dimensions
- Machine Depth: 2600 mm
- Machine Height: 3260 mm
- Table Length: 1626 mm
- Table Width: 711 mm
Movement
- Number of Axes: 5
- X-axis Travel: 1626 mm
- Y-axis Travel: 813 mm
- Z-axis Travel: 762 mm
Technical Specification
- Number of Tools: 24
- Spindle Power: 22.4 kW
- Spindle Speed: 15000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition, worked only with soft materials.
- Trunnion rotary table tr 310 is new, never used
Technical Machine Benefits
- 5 axis (3+2) machine with a tr310 dual-axis trunnion rotary table
- A axis tilt +/- 120 degree, b axis rotation 360 degree
- Spindle nose to table 102-864 mm, to platter 279-483 mm
- 3d renishaw probe, 3d ots tool probe
- Max. Workpiece weight on the trunnion table 227 kg
- Trunnion table diameter 310 mm
- Memory 750 mb
Machine History
Material type
Plastics 70, 30% aluminium
