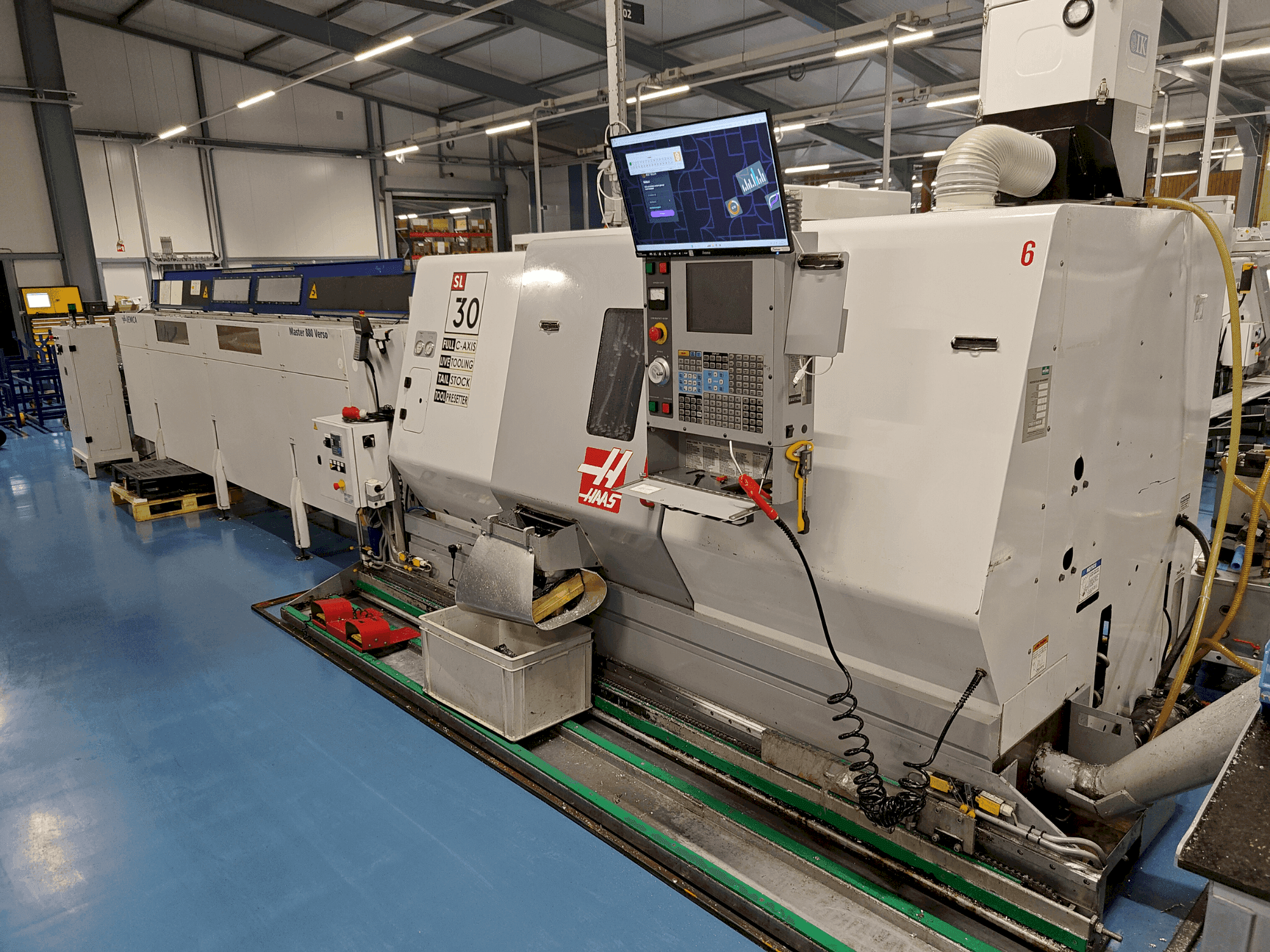

Front view of HAAS SL-30TCE (2004)  machine

HAAS - SL-30TCENL-TUR-HAA-2004-00001

£ 20,900
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 6-Axis lathe was manufactured in 2004 and features a HAAS SL-30TCE model. With a robust 12-position tool turret and 254mm chuck, it offers precision in turning with a maximum diameter of 432mm and length of 864mm. Boasting rapid traverse on X and Z axes at 18m/min, it ensures efficient operations. Equipped with brushless motors and a compact design, it's an optimal choice for machining tasks. Interested in optimizing your workshop? Inquire for further details on this HAAS SL-30TCE lathe.

Overview

  • brand: HAAS
  • year: 2004
  • MODEL: SL-30TCE
  • application type: Turning
  • Location: Netherlands
  • machine type: Horizontal Turning Machine
  • availability: Immediately

Technical Information - HAAS SL-30TCE

General Data

  • Measurements width: 1956 mm
  • Measurements depth: 3797 mm
  • Measurements height: 1880 mm
  • Machine weight: 7258 kg

Main drive

  • Number of spindles: 1
  • Spindle speed range: 3400 1/MIN
  • Spindle motor power: 22 kW
  • Number of axis: 3

Movement

  • X-AXIS Movement: 287 mm
  • X-AXIS Feed Force: 17793 N
  • X-AXIS Rapid traverse: 18 m/min
  • Z-AXIS Movement: 864 mm
  • Z-AXIS Feed Force: 27579 N
  • Z-AXIS Rapid traverse: 18 m/min

Turret

  • Number of turrets: 1
  • Tool taper: VDI 40

Tools

  • Number of stations: 12

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Automatic lubrication system
    • - Load Monitor

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Maximum turning length 864 mm
        • - Maximum turning diameter 432 mm
        • - 254 mm chuck
        • - Cooling system
        • - Complete enclosure
        • - 5 free m functions
        • - Measuring system for chisel setting
        • - Rigid tapping
        • - Brushless motors
        • - 1 mb memory // transformer // packaging // usb port in control
      • Qualitative Machine Benefits:
        • - 'visual quick code' programming system

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
