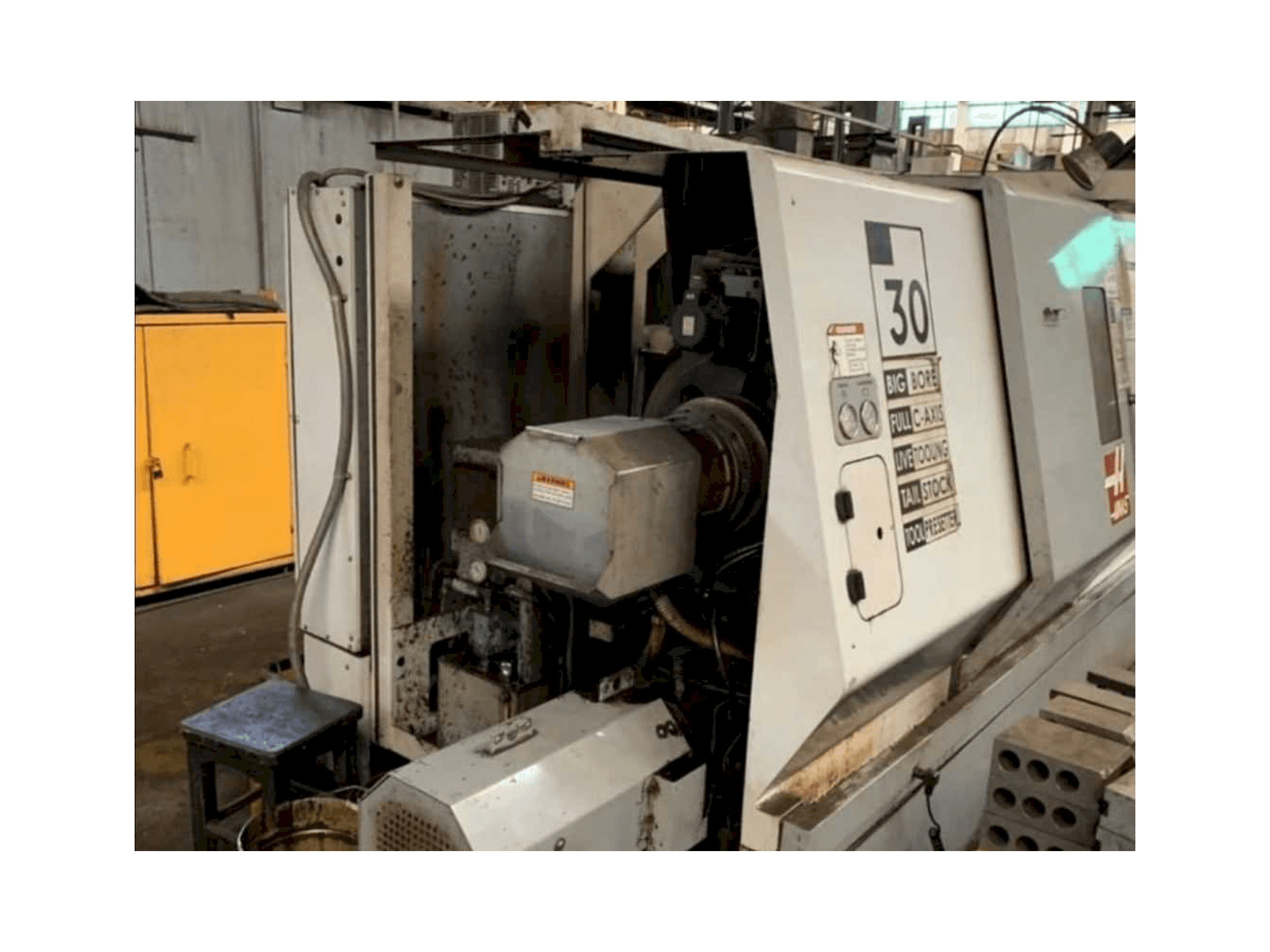

HAAS SL-30BTHE

Photo Gallery

HAAS - SL-30BTHERU-TUR-HAA-2006-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ HAAS SL-30THE Lathe - Used

Show in original language

This HAAS SL-30THE Lathe was manufactured in the year 2006 in the United States. It is operated through a control unit of the same brand. This machine can work with a spindle speed up to 3400 rpm.

Overview

brand: HAAS
year: 2006
MODEL: SL-30BTHE
application type: Turning
Location: Russia
machine type: Horizontal Turning Machine
control unit brand: HAAS

Technical Information - HAAS SL-30BTHE

Control Unit

Control Brand: HAAS

Dimensions

Machine Depth: 1956 mm
Machine Height: 1880 mm
Machine Weight: 7620 kg

Movement

X-axis Travel: 287 mm
Y-axis Travel: 864 mm

Technical Specification

Spindle Power: 22 kW
Spindle Speed: 3400 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Max. Set diameter: above the bed 762 mm, above the carriage 368 mm
The diameter of the 3 cam hydraulic chuck is 250 mm
Processing of bars up to 76 mm in diameter
Distance between centers 991 mm
Max. Processed diameter 432 mm
Max. Processing length 864 mm
Max. Turning length with standard tools 813 mm
Max. Torque 407 nm at 700 rpm
The hole in the spindle is 88. 9 mm
Hole in the hydraulic exhaust pipe of the cartridge 77 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
