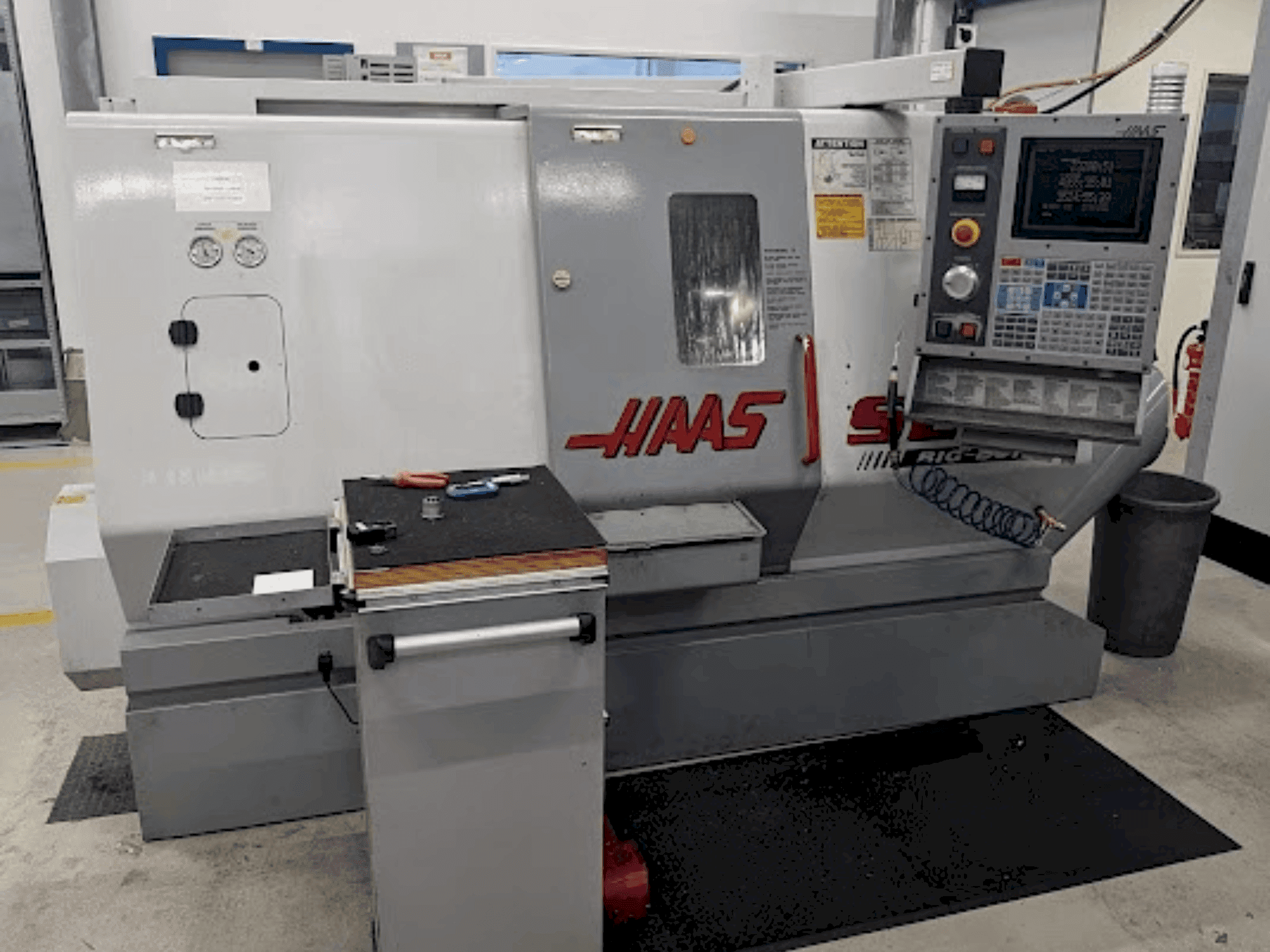

HAAS SL 20 TBHE

Photo Gallery

HAAS - SL 20 TBHEDE-TUR-HAA-2001-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS SL 20 TBHE For Sale | gindumac.com

Show in original language

This HAAS SL 20 TBHE horizontal turning machine was manufactured in 2001. It features a maximum turning length of 508 mm and a rotation diameter of 261.6 mm. Equipped with a CNC Haas control, it supports a spindle speed up to 3500 rpm and a motor power of 14.9 kW. Ideal for handling titanium and implant materials. If you are looking to get high-quality turning capabilities consider the HAAS SL 20 TBHE machine we have for sale. Contact us for more information.

Overview

brand: HAAS
year: 2001
MODEL: SL 20 TBHE
production hours: 0
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: HAAS

Technical Information - HAAS SL 20 TBHE

General Data

Measurements width: 3149.6 mm
Measurements depth: 1574.8 mm
Measurements height: 1828.8 mm
Machine weight: 4083.5 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 3500 rpm 1/MIN
Spindle motor power: 14.9 kW
Spindle bore: 64.7 mm
Number of axis: 2

Movement

X-AXIS Movement: 214.6 mm
Y-AXIS Movement: 508 mm

Workpiece

Workpiece weight: 4083.5 kg

Turret

Number of turrets: 1
Tool taper: VDI40

Tools

Number of index: 10

Additional Information

Additional equipment

Tailstock: Yes, Programmable

Machine Benefits

Technical Machine Benefits

Spindle nose: a2-6, e185
Driven tool stations: 10
Turning length (max. ): 508 mm
Rotation diameter (max. ): 261. 6 mm
Turning diameter over bed: 584. 2 mm
Turning diameter over slide: 241. 3 mm
Center distance: 609. 6 mm
Parts catcher: yes
Measuring arm: yes

Extra Information

The machine only ran titanium and implant material and was only used for prototyping.
