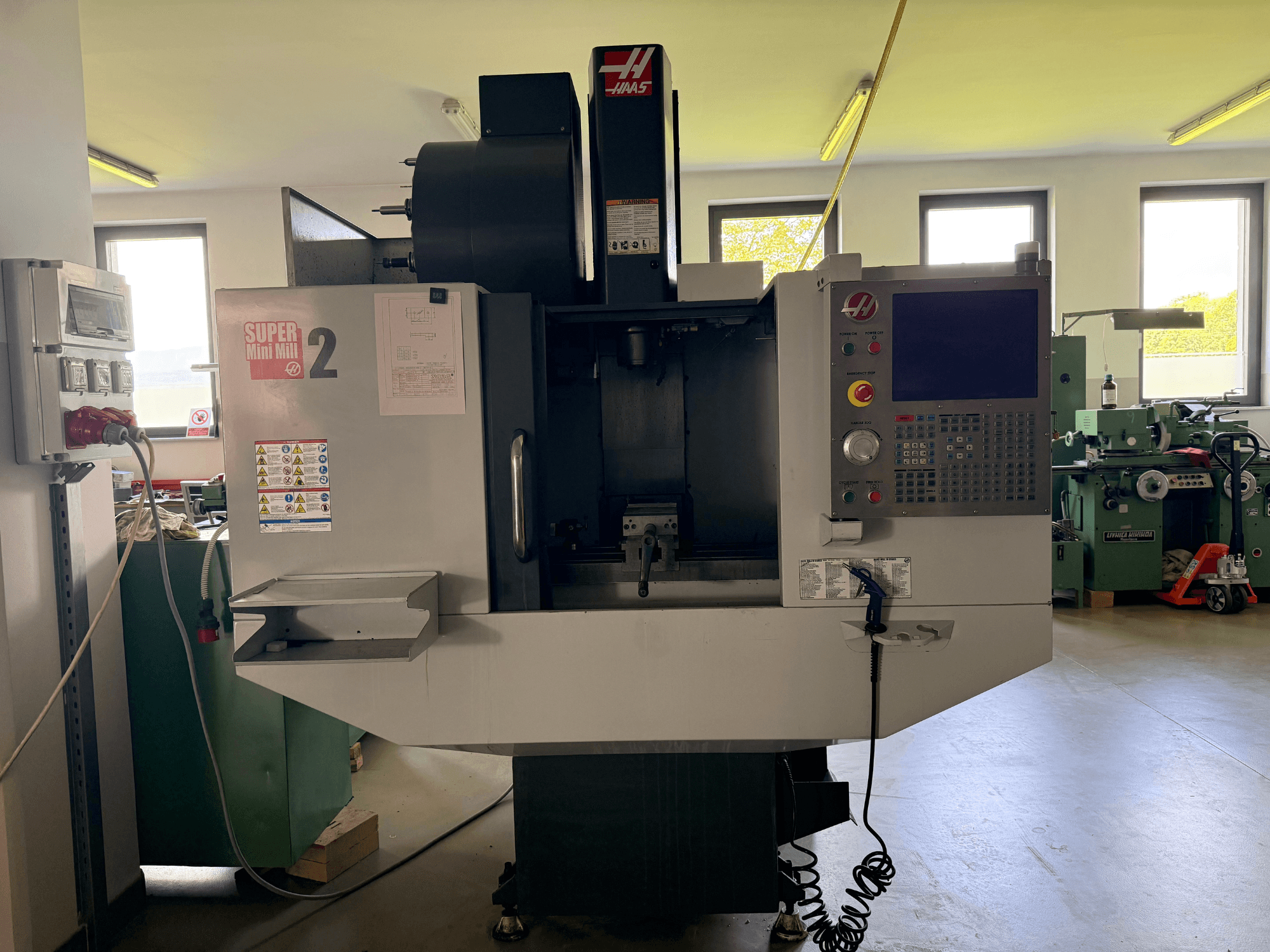

This 3-axis HAAS Mini Mill 2 was manufactured in 2012. It features an X-axis travel of 508 mm, Y-axis travel of 406 mm, and Z-axis travel of 356 mm. The machine includes a table size of 1,016 × 356 mm and a maximum table load of 227 kg. If you are looking to get high-quality machining capabilities, consider the HAAS Mini Mill 2 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: HAAS
- year: 2012
- MODEL: Mini Mill 2
- application type: Milling
- Location: Slovenia
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS Mini Mill 2
Control Unit
- Control Brand: HAAS
Dimensions
- Table Load: 227 kg
Movement
- Number of Axes: 3
- X-axis Travel: 508 mm
- Y-axis Travel: 406 mm
- Z-axis Travel: 356 mm
Technical Specification
- Spindle Speed: 10000 RPM
- Taper Size: BT 40
Additional Information
Table:
Size: 1,016 × 356 mm
T-slots: 3 × 16 mm
T-slot spacing: approx. 110 mm
Feed rates:
Max cutting feed: 12.7 m/min
Rapid traverse: 15.2 m/min
Electrical:
Power supply: 360–480 V / 3 Ph / 50–60 Hz
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
